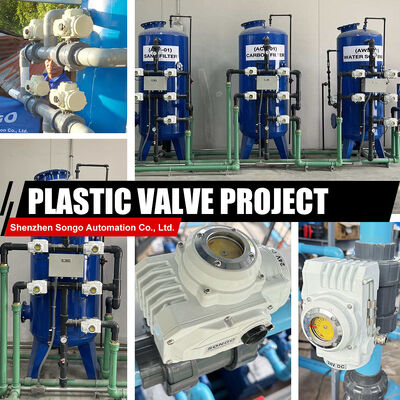

Overview Of Plastic Flange Motorized Ball Valves:
Electric plastic flanged ball valves are anti-corrosion type ball valves suitable for various pipelines containing corrosive media. Common materials include CPVC , UPVC , FRPP , PPH , and PVDF. Their advantage is light weight. Strong corrosion resistance, small opening and closing torque, wide application range, hygienic and non-toxic material, wear-resistant, etc. Electric flanged plastic ball valves are applied in multiple fields, such as general pure water, drinking water, sewage, brine and seawater, including acid, alkali and chemical solution pipeline systems, and are an important demand for various corrosive pipeline fluids
Features Of Electric Plastic Flanged Ball valve:
The electric plastic flanged ball valve can be operated by the standard power supply voltage AC220V(or DC24V, AC110V, AC380V), thereby controlling the flow or cut-off of the pipeline medium! According to the user's requirements, a regulating electric device can also be selected, accepting the 4-20mA model, thereby controlling the opening operation of the ball valve and achieving the effect of regulating the flow rate of the pipeline medium
Instructions For Use Of Electric Plastic Flanged Ball Valve:
Electric plastic ball valves are only suitable for use with relatively low temperature and pressure, and the medium is relatively clean liquids, gases or corrosive media. Moreover, the medium must not contain granular impurities; otherwise, objects may scratch the sealing ring, causing the valve to leak! If the pipeline medium contains fiber impurities or granular substances, an electric V-type ball valve should be selected
Temperature Comparison Table Applicable To Different Materials:
| Valve material | Medium temperature |
| UPVC | -10℃ ~ +70℃ |
| FRPP | -20℃ ~ +90℃ |
| PPH | -20℃ ~ +95℃ |
| CPVC | -40℃ ~ +95℃ |
| PVDF | -40℃ ~ +140℃ |
Technical Parameters Of Valve Actuator:
| ON/OFF Type | Light Indicator Signal Feedback, Passive Contact Signal Feedback,Resistance Potentiometer Signal Feedback |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110V/220V/380V 50/60HZ: DC12V/24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: IP68(EX ll BT4) |
Part Material:
| Connect Type | JIS ANSI DIN Flange |
| Working Pressure | PN10 , PN16 |
| Brand | SONGO |
| Size | DN15-DN300 |
| No.1 Body | FRPP , PVDF , UPVC , CPVC , PPH |
| No.2 Ball | FRPP , PVDF , UPVC , CPVC , PPH |
| No.3 Sealing ring | PTFE, F4 |
| No.4 Inner plug | FRPP , PVDF , UPVC , CPVC , PPH |
| No.5 Platform | FRPP , PVDF , UPVC , CPVC , PPH |
| No.6 Retainnin nut | FRPP , PVDF , UPVC , CPVC , PPH |
| No.7 Seal | PTFE, F4 |
| No.8 Stem | FRPP , PVDF , UPVC , CPVC , PPH |
| Operated | Electric actuated |
| Voltage | AC110V, 220V, 380V, DC12V, 24V |
| Actuator type | On-off type, regulation type |
Structure Dimension Drawing:
| DN | D1 | D | L | b | n | Φ | Pressure (Mpa) |
L1 | L2 | Electric Actuator No. | ||||||||||
| HG | JIS | DIN | ANSI | HG | JIS | DIN | ANSI | HG | JIS | DIN | ANSI | PVDF | FRPP | |||||||
| 15 | 95 | 65 | 70 | 65 | 60 | 100 | 14 | 4 | 4 | 4 | 4 | 14 | 15 | 14 | 16 | 1.2 | 1 | 178 | 121 | SONGO-05 |
| 20 | 105 | 75 | 75 | 75 | 70 | 120 | 16 | 4 | 4 | 4 | 4 | 14 | 15 | 14 | 16 | 1.2 | 1 | 178 | 121 | SONGO-05 |
| 25 | 115 | 85 | 90 | 85 | 80 | 140 | 16 | 4 | 4 | 4 | 4 | 14 | 19 | 14 | 16 | 1.2 | 1 | 178 | 121 | SONGO-05 |
| 32 | 135 | 100 | 160 | 16 | 4 | 4 | 18 | 1.2 | 1 | 178 | 121 | SONGO-05 | ||||||||
| 40 | 145 | 110 | 105 | 110 | 98 | 165 | 16 | 4 | 4 | 4 | 4 | 18 | 19 | 18 | 16 | 1.2 | 1 | 178 | 121 | SONGO-05 |
| 50 | 160 | 125 | 120 | 125 | 120 | 180 | 18 | 4 | 4 | 4 | 4 | 18 | 19 | 18 | 19 | 1.2 | 1 | 210 | 131 | SONGO-16 |
| 65 | 180 | 145 | 140 | 145 | 140 | 220 | 22 | 4 | 4 | 4 | 4 | 18 | 19 | 18 | 14 | 1.2 | 1 | 210 | 131 | SONGO-16 |
| 80 | 195 | 160 | 150 | 160 | 152 | 250 | 25 | 4 | 8 | 4 | 4 | 18 | 19 | 18 | 14 | 1.2 | 1 | 210 | 131 | SONGO-16 |
| 100 | 215 | 180 | 175 | 180 | 190 | 280 | 25 | 8 | 8 | 8 | 8 | 18 | 19 | 18 | 19 | 1.2 | 1 | 210 | 131 | SONGO-16 |
| 125 | 245 | 210 | 210 | 210 | 216 | 320 | 30 | 8 | 8 | 8 | 8 | 18 | 23 | 18 | 22 | 1 | 0.8 | 309 | 160 | SONGO-30 |
| 150 | 280 | 240 | 240 | 240 | 240 | 360 | 30 | 8 | 8 | 8 | 8 | 23 | 23 | 23 | 22 | 1 | 0.8 | 309 | 160 | SONGO-30 |
| 200 | 335 | 295 | 295 | 295 | 298 | 400 | 35 | 8 | 12 | 8 | 8 | 23 | 23 | 23 | 22 | 0.8 | 0.8 | 309 | 160 | SONGO-30 |
| 250 | 395 | 350 | 355 | 350 | 362 | 500 | 38 | 12 | 12 | 12 | 12 | 23 | 23 | 23 | 22 | 0.8 | 0.5 | 309 | 160 | SONGO-60 |
| 300 | 455 | 400 | 400 | 400 | 432 | 600 | 40 | 12 | 16 | 12 | 12 | 23 | 23 | 23 | 25 | 0.6 | 0.3 | 309 | 160 | SONGO-60 |
Different Material With Different Connect End Type:
Pipe Standard Of PVC Pipe:
| Pipe Standard Of PVC Pipe | ||||
| Normal size | BS | ANSI | JIS | DIN |
| 1/2'' | 21.2 | 21.34 | 22.00 | 20 |
| 3/4'' | 26.6 | 26.67 | 26.00 | 25 |
| 1'' | 33.4 | 33.40 | 32.00 | 32 |
| 1-1/4'' | 42.1 | 42.16 | 38.00 | 40 |
| 1-1/2'' | 48.1 | 48.26 | 48.00 | 50 |
| 2'' | 60.2 | 60.28 | 60.00 | 63 |
| 2-1/2'' | 75.2 | 73.03 | 76.00 | 75 |
| 3'' | 88.7 | 88.90 | 89.00 | 90 |
| 4'' | 114.1 | 114.3 | 114 | 110 |
| 5'' | 140 | 141.3 | 140 | 140 |
| 6'' | 160 | 168.3 | 165 | 160 |
| 8'' | 225 | 219.1 | 216 | 200 |
| 10'' | 200 | 273.1 | 267 | 250 |
| 12'' | 315 | 223.9 | 318 | 300 |

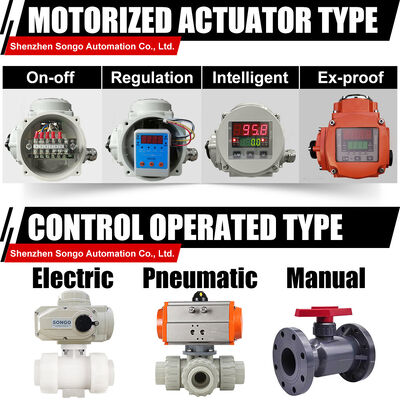

SONGO Motorized Actuator Type:
| SONGO Motorized Actuator Type | |||
|
|||
| On-off Type | Regulation Type | Intelligent Type | Ex-proof Type |
ISO5211 Mounting Valves:
| ISO5211 Mounting Valves | ||||
|
||||
| Metal Wafer Butterfly Valve | Metal Thread Ball Valve | True Union Ball Valve | Metal Flange Ball Valve | PVC Butterfly Valve |
Specification Of Motorized Actuator:
| Model | SONGO-05 | SONGO-10 | SONGO-16 | SONGO-30 | SONGO-60 | SONGO-125 | SONGO-250 | SONGO-400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Voltage Options | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V | |||||||
| Input Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Output Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Mounting Standard | ISO5211 direct mounting | |||||||
| Protection Class | IP67,Explosion Proof Construction Are Available: EX ll BT4(IP68) | |||||||
| Electrial Connection | G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃~+60℃ | |||||||
| Control Circuit | A: ON-OFF Type with Light Indicator Signal Feedback | |||||||
| B: ON-OFF Type with Passive Contact Signal Feedback | ||||||||
| C: ON-OFF Type with Resistance Potentiometer Signal Feedback | ||||||||
| D: ON-OFF Type with Resistance Potentiometer and Neutral Position Signal Feedback | ||||||||
| E: Regulation Type with Servo Control Module | ||||||||
| F: DC24V/ DC12V Direct On-off Type | ||||||||
| G: AC380V Three-Phase Power Supply with Passive Signal Feedback | ||||||||
| H: AC380V Three-Phase Power Supply with Resistance Potentiometer Signal Feedback | ||||||||
Motorized Actuator Wiring Diagram:
3 Ways Ball Valve Flow Paths:
Ball Valves Different Connect Options:
SONGO──Your No.1 Automation Valve Specialist:
No Worries After Buy Our Valves:
Why Not Choose Our Factory:
How To Customize For You:
Frequently Asked Questions:
