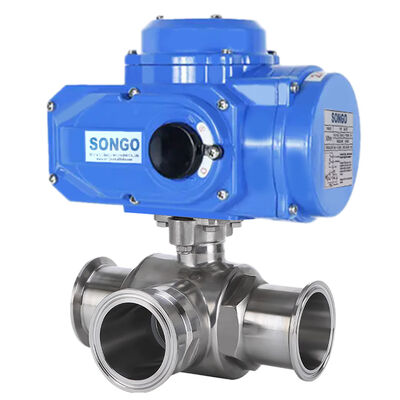

Benefits Of Sanitary 3Way Motorized Ball Valves:
The electric sanitary 3-way ball valvedelivers precision flow diversion in ultra-clean processes(T flow or L flow).Engineered for pharmaceutical manufacturing, biotech applications,food processing, and beverage production,zero contamination riskwith polished Ra ≤ 0.8 μm surfaces.The integrated IP67 waterproof electric actuator enables automated process control 4-20mA or Modbus signals.
Hygienic 3Way Electric Ball Valve:
● Featuring 304/316L stainless steel construction with electropolished (Ra ≤ 0.8 μm) ,meeting FDA ,EU 1935/2004,and 3-A Sanitary Standards.
● Using food-grade sealing materials such as PTFE or EPDM, which are non-toxic and corrosion-resistant, ensures that there is zero leakage from the valve.
● Through PLC and DCS system integration, remote control and timed control are achieved. By adjusting the modules, the flow or pressure can be controlled more precisely.
● 90° Rotary Actuator with On/off Type,4-20mA,0-10VDC,1-5VDC,Modbus Regulated Control.
● Connection: Weld Type,Tri Clamp Type,Thread Type.
● 3 way type:T-port flow,and L-port flow are available.
● It is applicable to the Pharma/Biotech,Dairy Processing,Food and Beverage,Cosmetics.
Technical Parameters of Valve Actuator:
| ON/OFF Type | Light Indicator Signal Feedback, Passive Contact Signal Feedback,Resistance Potentiometer Signal Feedback |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110V/220V/380V 50/60HZ: DC12V/24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: IP68(EX ll BT4) |
Part Material:
| Connect Type | Clamp |
| Working Pressure | PN16 |
| Brand | SONGO |
| Size | Φ19-Φ102 |
| Temperature | -15~120°C/-15~250°C |
| Medium | Food, medicine, alcohol, milk, beverage |
| Body | SUS304/SUS316L |
| Ball | SUS304/SUS316L |
| Stem | SUS304/SUS316L |
| Seat | PTFE, PPL |
| Operated | Electric actuated |
| Voltage | AC110V, 220V, 380V, DC12V, 24V |
| Actuator type | On-off type, regulation type |
Structure Dimension Drawing:
| Nominal diameter | K | d1-d2 | L | H | T | F | L1 | L2 | Weight (Kg) | Electric Actuator No. |
| Φ19 | 50.5 | 15-16 | 108 | 44 | 54 | 11 x 11 | 178 | 121 | 3.67 | SONGO-05 |
| Φ25 | 50.5 | 20-22 | 120 | 44 | 60 | 11 x 11 | 178 | 121 | 3.8 | SONGO-05 |
| Φ32 | 50.5 | 25-29 | 128 | 50 | 64 | 11 x 11 | 178 | 121 | 4 | SONGO-05 |
| Φ38 | 50.5 | 32-35 | 144 | 57 | 72 | 14 x 14 | 178 | 121 | 4.43 | SONGO-05 |
| Φ51 | 64 | 40-48 | 168 | 65 | 84 | 14 x 14 | 178 | 121 | 5.4 | SONGO-05 |
| Φ63 | 77.5 | 50-59 | 180 | 80 | 90 | 17 x 17 | 178 | 121 | 6.7 | SONGO-05 |
| Φ76 | 91 | 65-72 | 220 | 90 | 110 | 17 x 17 | 210 | 131 | 9.9 | SONGO-16 |
| Φ89 | 106 | 78-86 | 244 | 110 | 122 | 22 x 22 | 210 | 131 | 12.2 | SONGO-16 |
| Φ102 | 119 | 90-89 | 270 | 130 | 135 | 22 x 22 | 210 | 131 | 16 | SONGO-16 |
SONGO Motorized Actuator Type:
| SONGO Motorized Actuator Type | |||
|
|||
| On-off Type | Regulation Type | Intelligent Type | Ex-proof Type |
ISO5211 Mounting Valves:
| ISO5211 Mounting Valves | ||||
|
||||
| Metal Wafer Butterfly Valve | Metal Thread Ball Valve | True Union Ball Valve | Metal Flange Ball Valve | PVC Butterfly Valve |
Specification Of Motorized Actuator:
| Model | SONGO-05 | SONGO-10 | SONGO-16 | SONGO-30 | SONGO-60 | SONGO-125 | SONGO-250 | SONGO-400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Voltage Options | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V | |||||||
| Input Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Output Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Mounting Standard | ISO5211 direct mounting | |||||||
| Protection Class | IP67,Explosion Proof Construction Are Available: EX ll BT4(IP68) | |||||||
| Electrial Connection | G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃~+60℃ | |||||||
| Control Circuit | A: ON-OFF Type with Light Indicator Signal Feedback | |||||||
| B: ON-OFF Type with Passive Contact Signal Feedback | ||||||||
| C: ON-OFF Type with Resistance Potentiometer Signal Feedback | ||||||||
| D: ON-OFF Type with Resistance Potentiometer and Neutral Position Signal Feedback | ||||||||
| E: Regulation Type with Servo Control Module | ||||||||
| F: DC24V/ DC12V Direct On-off Type | ||||||||
| G: AC380V Three-Phase Power Supply with Passive Signal Feedback | ||||||||
| H: AC380V Three-Phase Power Supply with Resistance Potentiometer Signal Feedback | ||||||||
Motorized Actuator Wiring Diagram:

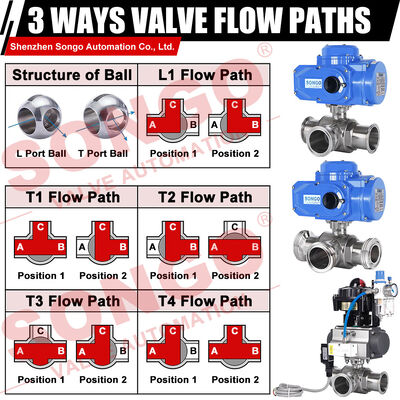

3 Ways Ball Valve Flow Paths:
Ball Valves Different Connect Options:
SONGO──Your No.1 Automation Valve Specialist:
No Worries After Buy Our Valves:
Why Not Choose Our Factory:
How To Customize For You:
