| Brand Name: | SONGO |
| MOQ: | 2 PCS |
| Price: | CN¥626.34/pieces 1-29 pieces |
| Payment Terms: | D/A,L/C,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 5000-10,000Pieces/Month |

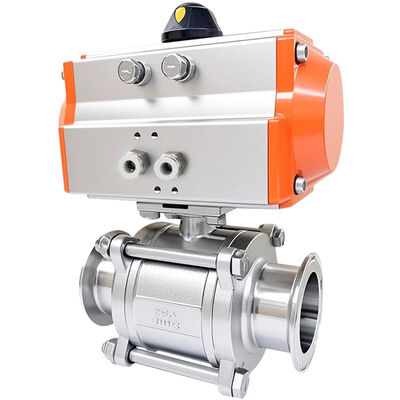

Descriptions Of 3 Piece 2way Pneumatic Sanitary Ball Valve:
The pneumatic 3 Piece sanitary ball valve adopts a unique three-leaf structure design, making the valve easier to disassemble, maintain and repair. At the same time, it ensures Zero Dead Space and zero-pollution fluid transmission environment. It is made of 316L ultra-polished stainless steel, with a surface roughness of Ra ≤ 0.4 μm. It is widely used in industries with strict hygiene standards such as food, pharmaceuticals, and bioengineering.
Features Of SONGO Tri Clamp Food Grade Pneumatic Actuator Ball Valve:
1).The three-piece sanitary structure can be easily disassembled, facilitating thorough cleaning and sterilization (compatible with CIP/SIP). The inner surface is electro-polished with Ra ≤ 0.4 μm, ensuring no microbial residue.
2).Equipped with Quarter-turn pneumatic actuators (single/ double acting), with response time ≤ 1 seconds, supporting PLC linkage, enabling automatic control.
3).Working temperature: -20℃ to 180℃. It can withstand steam sterilization.

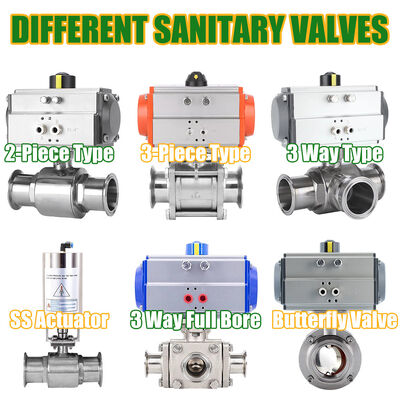

4).2 way or 3 way design, Suitable for different working environments.
Part Material Of Pneumatic Actuated 3 Piece Sanitary Ball Valve:
| Connect Type | Clamp,Weld, SMS Thread |
| Working Pressure | PN16 |
| Brand | SONGO |
| Size | Φ19-Φ102 |
| Temperature | -15~120°C/-15~250°C |
| Medium | Food, medicine, alcohol, milk, beverage |
| Body | SUS304/SUS316L |
| Ball | SUS304/SUS316L |
| Stem | SUS304/SUS316L |
| Seat | PTFE, PPL |
| Operated | Pneumatic actuated |
| Actuator parts | Solenoid valve, limit switch, positioner, FRL |
| Actuator type | Double action, spring return |
Structure Dimension Drawing Of Pneumatic Operated SS304 Tri Clamp Ball Valve:
| Nominal diameter | K | d | L | H | F | L1 | L2 | Weight (Kg) | Pneumatic Actuator No. | |
| 3/4" | Φ19 | 50.5 | 16 | 99 | 50 | 9 x 9 | 150 | 72.5 | 2.23 | AT-52 |
| 1" | Φ25 | 50.5 | 22 | 109 | 53 | 9 x 9 | 150 | 72.5 | 2.4 | AT-52 |
| 1-1/4" | Φ32 | 50.5 | 29 | 114 | 55 | 11 x 11 | 150 | 72.5 | 2.6 | AT-52 |
| 1-1/2" | Φ38 | 50.5 | 35 | 125 | 60 | 11 x 11 | 171 | 83 | 3.75 | AT-63 |
| 1-3/4" | Φ45 | 64 | 42 | 130 | 65 | 11 x 11 | 171 | 83 | 4.4 | AT-63 |
| 2" | Φ51 | 64 | 48 | 137 | 80 | 14 x 14 | 171 | 83 | 5.1 | AT-63 |
| 2-1/4" | Φ57 | 77.5 | 53 | 137 | 80 | 14 x 14 | 186 | 95.5 | 5.9 | AT-75 |
| 2-1/2" | Φ63 | 77.5 | 58 | 155 | 186 | 95.5 | 5.3 | AT-75 | ||
| 3" | Φ76 | 91 | 72 | 180 | 206 | 103.5 | 10.5 | AT-83 | ||
| 3-1/2" | Φ89 | 106 | 85 | 204 | 265 | 108 | 14.1 | AT-92 | ||
| 4" | Φ102 | 119 | 98 | 240 | 210 | 304 | 19.4 | AT-125 | ||
Ball Valve Standard:
| Ball Valve Standard | ||||
| GB Standard | ASME Standard | JIS Standard | DIN Standard | |
| Design Standard | GB/T12237 | API608 | JIS BS5351 | DIN 3357 |
| Inspection Standard | GB/T13927 | API598 | JIS B2003 | EN 12266 |
| Face-to-Face Standard | GB/T12221 | ASME B16.10 | JIS B2002 | DIN 3202-F4 |
| Flange Standard | HG/T 20592, GB/T9113,EN 1092-1, JB/T79.1 |
ASME B16.5 | JIS B2220 | EN 1092-1 |
| Pressure-Temperature Standard |
GB/T 26640 | ASME B16.34 | ASME B16.34 | ASME B16.34 |
| Fire Safe Standard | API607/API 6FA | API607/API 6FA | API607/API 6FA | API607/API 6FA |

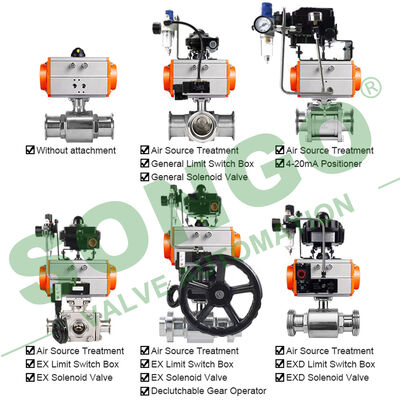

Matching Air Accessories Selection For Pneumatic Ball Valve:
Pneumatic Actuator Accessories Options :
| Pneumatic Actuator Accessories Options | ||
| Pneumatic Actuator Pisition | Applicable Connection Standard |
Pneumatic Actuator Accessories |
| Actuator Upper | VDI/VDE 3845 | ● Limit Switch Box ● Proximity Switch ● P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) ● E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) |
| Actuator Back | VDI/VDE 3845 | Non Explosion-proof Type ExmbIICT4 / EX d IIB T6 / EX d IIC T6 / EX ia IIC T6 Explosion-proof Type ● 3/2 Way Namur Solenoid Valve ( For Spring Return Actuator ) ● 5/2 Way Namur Solenoid Valve ( For Double Acting Actuator ) Air Filter Regulator |
| Actuator Bottom | ISO5211/DIN3337 | ● Declutchable Gear Box ● Ball Valve , Butterfly Valve , Plug Valve |
Single Acting & Double Acting Difference Of Pneumatic Actuator:
| Principle Of Single Acting Pneumatic Actuator (Spring Return) | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
| Principle Of Double Acting Pneumatic Actuator | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A. |
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
|
