Benefits Of High Pressure 3 way Motorized Ball Valves:
The high pressure electric 3 way ball valve is a valve device actuated by an electric actuator, featuring a spherical core component with either an L-shaped or T-shaped passage. In contrast to conventional ball valves, the distinctive design of the three-way ball valve enables it to perform more sophisticated fluid control functions,
1. Flow distribution: dividing a single medium flow into two output streams.
2. Flow convergence: combining two medium flows into a single output stream.
3. Flow direction switching: altering the medium flow path between different pipelines.
High Pressure 3 way Electric Ball Valve:
● The implementation of a single valve capable of multiple flow direction control significantly reduces the number of valves required in the system, thereby streamlining the pipeline configuration.
● The electric actuator equipped with an intelligent positioner enables precise opening degree control, achieving flow regulation accuracy within ±1%.
● The rotary structure exhibits minimal wear, while the utilization of premium materials ensures long-term operational stability.
● The electric high-pressure 3 way ball valve features a compact structure, lightweight design, and convenient maintenance.
●Widely employed in the automated pipeline control systems for handling corrosive media, including gases, liquids, and petroleum products.
Part Material:

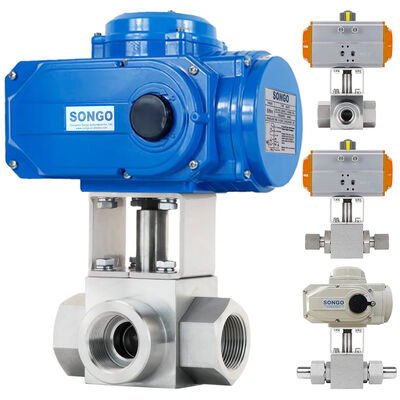

| Connect Type | Thread,flange,ferrule,butt weld |
| Working Pressure | 2Mpa-80Mpa |
| Medium | Water , gas , corrosive liquid , etc. |
| Brand | SONGO |
| Size | DN8-DN50 |
| O-ring | PTFE |
| Stem | Stainless steel |
| Ball | Stainless steel |
| Ball Seat | PTFE |
| End Connector | Stainless steel |
| Body | Stainless steel/cast steel |
| Operated | Electric actuated |
| Voltage | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V |
| Actuator type | On-off type ,4-20ma 1-5VDC,0-10VDC,RS485 regulation type |
Structure Dimension Drawing:
| Nominal diameter | L | T | H | K | R | D | L1 | L2 | Electric Actuator No. |
| DN8 | 147 | 72 | 176 | 34 | 6 | G1/4" | 178 | 121 | SONGO-05 |
| DN10 | 147 | 78 | 176 | 36 | 8 | G3/8" | 178 | 121 | SONGO-05 |
| DN15 | 147 | 87 | 176 | 36 | 10 | G1/2" | 178 | 121 | SONGO-05 |
| DN20 | 168 | 99 | 237 | 47 | 14.5 | G3/4" | 178 | 121 | SONGO-05 |
| DN25 | 182 | 114 | 237 | 51 | 19.6 | G1" | 178 | 121 | SONGO-05 |
| DN32 | 204 | 123 | 249 | 55 | 24.8 | G1 1/4" | 210 | 131 | SONGO-10 |
| DN40 | 239 | 131 | 285 | 62 | 30 | G1 1/2" | 210 | 131 | SONGO-10 |
| DN50 | 268 | 142 | 348 | 70 | 39.6 | G2" | 210 | 131 | SONGO-16 |
SONGO Motorized Actuator Type:
| SONGO Motorized Actuator Type | |||
|
|||
| On-off Type | Regulation Type | Intelligent Type | Ex-proof Type |
ISO5211 Mounting Valves:
| ISO5211 Mounting Valves | ||||
|
||||
| Metal Wafer Butterfly Valve | Metal Thread Ball Valve | True Union Ball Valve | Metal Flange Ball Valve | PVC Butterfly Valve |
Specification Of Motorized Actuator:
| Model | SONGO-05 | SONGO-10 | SONGO-16 | SONGO-30 | SONGO-60 | SONGO-125 | SONGO-250 | SONGO-400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Voltage Options | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V | |||||||
| Input Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Output Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Mounting Standard | ISO5211 direct mounting | |||||||
| Protection Class | IP67,Explosion Proof Construction Are Available: EX ll BT4(IP68) | |||||||
| Electrial Connection | G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃~+60℃ | |||||||
| Control Circuit | A: ON-OFF Type with Light Indicator Signal Feedback | |||||||
| B: ON-OFF Type with Passive Contact Signal Feedback | ||||||||
| C: ON-OFF Type with Resistance Potentiometer Signal Feedback | ||||||||
| D: ON-OFF Type with Resistance Potentiometer and Neutral Position Signal Feedback | ||||||||
| E: Regulation Type with Servo Control Module | ||||||||
| F: DC24V/ DC12V Direct On-off Type | ||||||||
| G: AC380V Three-Phase Power Supply with Passive Signal Feedback | ||||||||
| H: AC380V Three-Phase Power Supply with Resistance Potentiometer Signal Feedback | ||||||||
Motorized Actuator Wiring Diagram:

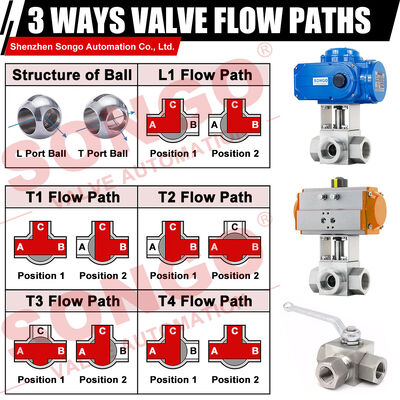

3 Ways Ball Valve Flow Paths:
Ball Valves Different Connect Options:
