| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥3,558.70/pieces 2-29 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 2000-10000pcs/month |

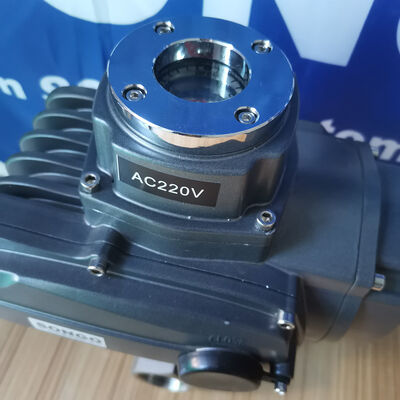

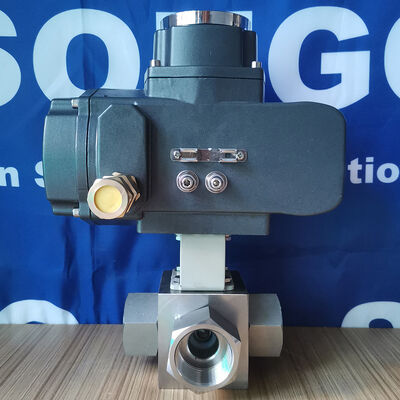

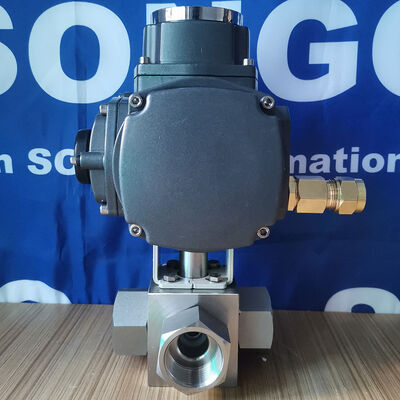

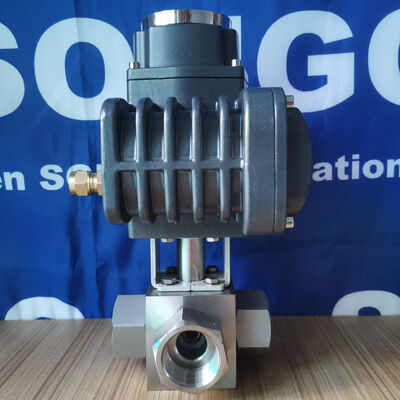

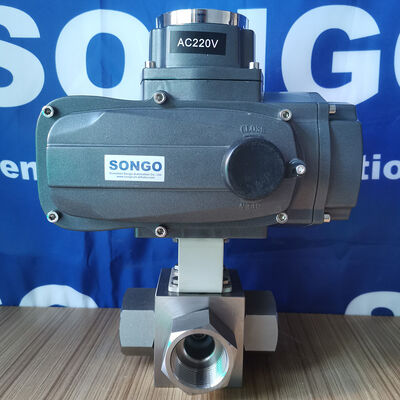

Benefits Of Explosion Proof 3Way Motorized Ball Valve:
Our premium Explosion-Proof Electric Three-Way High-Pressure Ball Valve , engineered for mission-critical applications in hazardous locations. This ATEX certified and IECEx approved electric actuated ball valve features a robust stainless steel body and delivers exceptional high-pressure performance (rated PN250/Class 1500, PN420/Class 2500 available). Designed for L-port or T-port flow configurations , this 3-way ball valve ensures precise flow diversion, mixing, or shut-off in explosive atmospheres
Explosion Proof 3Way High Pressure Electric Ball Valve:
● Robust stainless steel construction,Low Maintenance,long service life.
● Compliant with ATEX Directive (Ex d IIC T6 Gb / Ex tb IIIC T85°C Db) & IECEx Standards. Essential for oil, gas, chemical processing, petrochemical, pharmaceutical, and offshore platforms.
● Rated PN250 (Class 1500) / PN420 (Class 2500) , ideal for high-pressure piping systems , hydraulic systems , compressed gas lines , and wellhead control .
● 90° Rotary Actuator with On/off Type,4-20mA,0-10VDC,1-5VDC,Modbus Regulated Control.
● Connection: Threaded (NPT, BSP) , Flanged (ASME/ANSI, DIN, JIS) , Socket Weld , or Butt Weld ends .
● 3 way type:L-Port(90° diversion) or T-Port(180° diversion/mixing) ball valveconfigurations for complex flow control.
Technical Parameters of Valve Actuator:
| ON/OFF Type | Light Indicator Signal Feedback, Passive Contact Signal Feedback,Resistance Potentiometer Signal Feedback |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110V/220V/380V 50/60HZ: DC12V/24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: IP68(EX ll BT4) |
Part Material:
| Connect Type | Female thread |
| Working Pressure | PN320 |
| Brand | SONGO |
| Size | DN08-DN50 |
| Temperature | -20℃+280℃ |
| Medium | Fresh water,sewage, sea water, air, steam, food, medicine, oils, acids, etc. |
| Body | CF8, CF8M, stainless steel |
| Ball | SS304, SS316 |
| Stem | SS304, SS316 |
| Seat | PTFE |
| Operated | Explosion Proof Electric actuated |
| Voltage | AC110V, 220V, 380V, DC12V, 24V |
| Actuator type | On-off type, regulation type |
Structure Dimension Drawing:
| Nominal diameter | L | T | H | K | R | D | L1 | L2 | Electric Actuator No. |
| DN8 | 147 | 72 | 176 | 34 | 6 | G1/4" | 178 | 121 | SONGO-05 |
| DN10 | 147 | 78 | 176 | 36 | 8 | G3/8" | 178 | 121 | SONGO-05 |
| DN15 | 147 | 87 | 176 | 36 | 10 | G1/2" | 178 | 121 | SONGO-05 |
| DN20 | 168 | 99 | 237 | 47 | 14.5 | G3/4" | 178 | 121 | SONGO-05 |
| DN25 | 182 | 114 | 237 | 51 | 19.6 | G1" | 178 | 121 | SONGO-05 |
| DN32 | 204 | 123 | 249 | 55 | 24.8 | G1 1/4" | 210 | 131 | SONGO-10 |
| DN40 | 239 | 131 | 285 | 62 | 30 | G1 1/2" | 210 | 131 | SONGO-10 |
| DN50 | 268 | 142 | 348 | 70 | 39.6 | G2" | 210 | 131 | SONGO-16 |
SONGO Motorized Actuator Type:
| SONGO Motorized Actuator Type | |||
|
|||
| On-off Type | Regulation Type | Intelligent Type | Ex-proof Type |
ISO5211 Mounting Valves:
| ISO5211 Mounting Valves | ||||
|
||||
| Metal Wafer Butterfly Valve | Metal Thread Ball Valve | True Union Ball Valve | Metal Flange Ball Valve | PVC Butterfly Valve |
Specification Of Motorized Actuator:
| Model | SONGO-05 | SONGO-10 | SONGO-16 | SONGO-30 | SONGO-60 | SONGO-125 | SONGO-250 | SONGO-400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Voltage Options | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V | |||||||
| Input Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Output Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Mounting Standard | ISO5211 direct mounting | |||||||
| Protection Class | IP67,Explosion Proof Construction Are Available: EX ll BT4(IP68) | |||||||
| Electrial Connection | G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃~+60℃ | |||||||
| Control Circuit | A: ON-OFF Type with Light Indicator Signal Feedback | |||||||
| B: ON-OFF Type with Passive Contact Signal Feedback | ||||||||
| C: ON-OFF Type with Resistance Potentiometer Signal Feedback | ||||||||
| D: ON-OFF Type with Resistance Potentiometer and Neutral Position Signal Feedback | ||||||||
| E: Regulation Type with Servo Control Module | ||||||||
| F: DC24V/ DC12V Direct On-off Type | ||||||||
| G: AC380V Three-Phase Power Supply with Passive Signal Feedback | ||||||||
| H: AC380V Three-Phase Power Supply with Resistance Potentiometer Signal Feedback | ||||||||
Motorized Actuator Wiring Diagram:
3 Ways Ball Valve Flow Paths:
Ball Valves Different Connect Options:
SONGO──Your No.1 Automation Valve Specialist:
No Worries After Buy Our Valves:
Why Not Choose Our Factory:
How To Customize For You:
Frequently Asked Questions:
● Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?
A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.
● Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?
A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.
● Q3: WHAT IS YOUR TERMS OF PAYMENT?
A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
● Q4: WHAT IS YOUR TERMS OF DELIVERY?
A4: EXW, FOB, CFR, CIF, DAP, DDP.
● Q5: HOW ABOUT YOUR DELIVERY TIME?
A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
● Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?
A6: Yes, we have 100% test before delivery.
● Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?
A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from
