| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥854.09/pieces 2-29 pieces |
| Payment Terms: | ,L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 5000-10,000Pieces/Month |

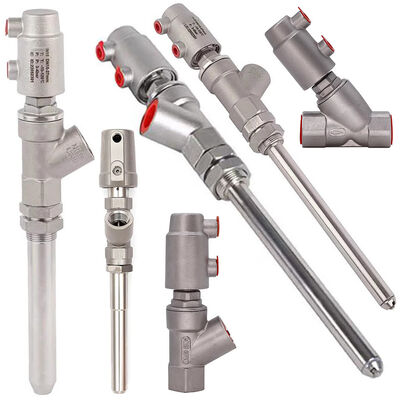

Descriptions Of Pneumatic Fitting Valve:
The pneumatic filling valve is valve device that uses compressed air as the power source to precisely control the filling of liquids in containers such as bottles and cans. It is one of the most crucial execution components in modern automated filling production lines, especially in industries like food and beverage, daily chemicals, and pharmaceuticals.
Its core function is to precisely control the opening, quantitative filling, closing of the liquid and prevent dripping and leakage during the filling process according to the preset sequence and logic..
Feature of Pneumatic Fitting Valve:
1). High degree of automation, easy to integrate into PLC and other automated control systems, achieving high-speed and precise start-stop control.
2). Quick action, driven by compressed air, with fast switch response time, suitable for high-speed production lines.
3). The structure is sturdy and durable. It can be adjusted according to parameters such as air pressure, stroke, and time to adapt to liquids of different viscosities and gas contents.
4). Customized filling valves of different lengths can be provided according to customer requirements.
Techinical Data of Pneumatic Fitting Nozzles Valve:
| Pressure Range | 0-16 bar |
| Medium Temperature | -10~180℃ |
| Environmental Temperature | -10~60℃ |
| Body Material | Stainless Steel |
| Sealing Material | PTFE |
| Actuator Material | Stainless Steel |
| Medium | Water,Oil,Drinks,Milk,Beer,etc |
Structure Dimension Drawing Of Stainless Steel Fitting Valve:

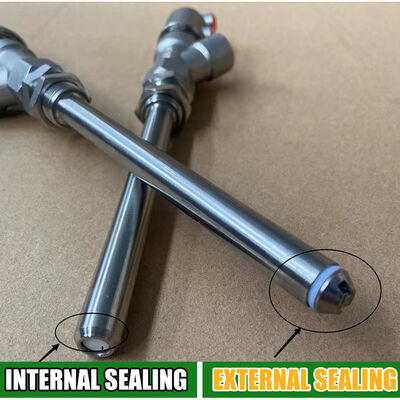

Internal Seat Type:
| Size | Actuator | A | B | C | D | E | G | L |
| 1/2" | 27 | 4-10 | 10-20 | M22x15 | 18 | 137 | G1/8 | 130 |
| 3/4" | 27 | 14 | 25 | M28x15 | 18 | 150 | G1/8 | 120 |
| 1" | 50 | 21 | 35 | M39x15 | 18 | 228 | G1/8 | 150 |
| 1-1/4" | 50 | 27 | 42 | M45x15 | 20 | 267 | G1/8 | 150 |
| 1-1/2" | 50 | 33 | 50 | M53x15 | 20 | 268 | G1/8 | 200 |
| 2" | 63 | 47 | 70 | M74x15 | 20 | 312 | G1/8 | 200 |
*Length size can be customized.
Outer Seat Type:
| Size | Actuator | A | B | C | D | E | G | L |
| 1/2" | 27 | 10 | 14 | M22x15 | 18 | 137 | G1/8 | 175 |
| 3/4" | 27 | 21 | 25 | M28x15 | 18 | 150 | G1/8 | 175 |
| 1" | 50 | 30 | 35 | M39x15 | 18 | 228 | G1/8 | 200 |
| 1-1/4" | 50 | 37 | 42 | M45x15 | 20 | 267 | G1/8 | 200 |
| 1-1/2" | 50 | 45 | 50 | M53x15 | 20 | 268 | G1/8 | 200 |
| 2" | 63 | 65 | 70 | M74x15 | 20 | 312 | G1/8 | 200 |
*Length size can be customized.
