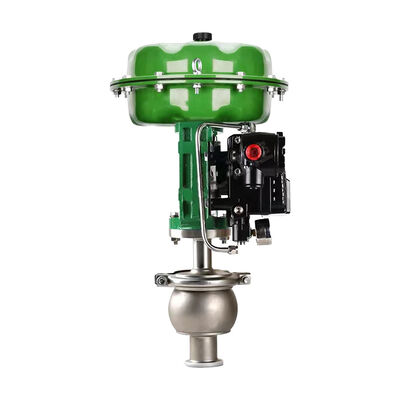

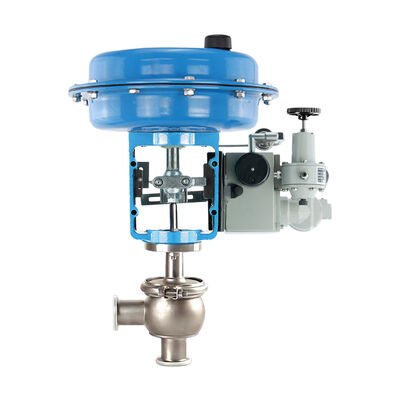

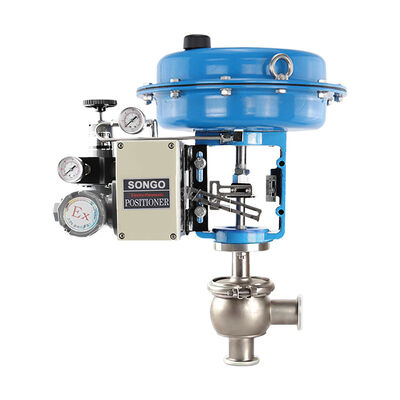

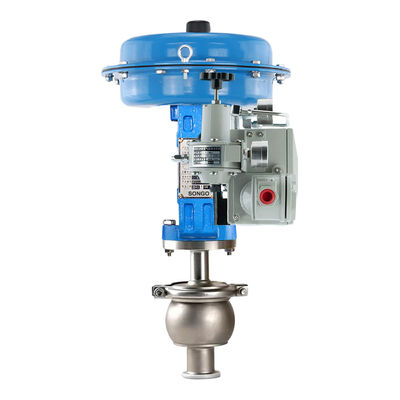

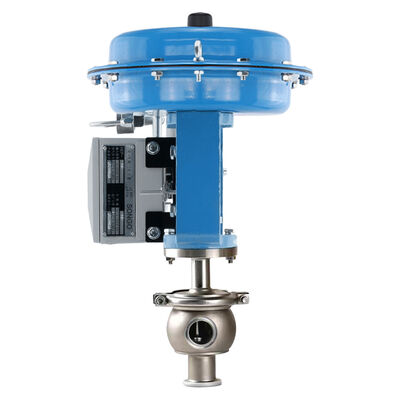

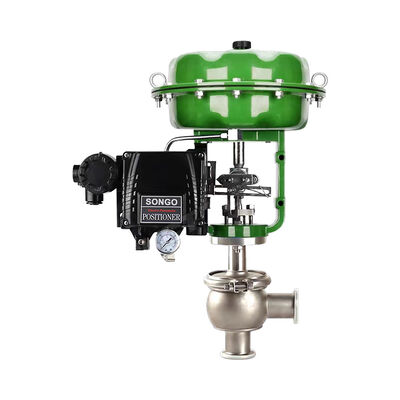

Overview of Pneumatic Diaphragm Sanitary Grade Control Valve:
Pneumatic sanitary grade control valves are suitable for regulating various physical quantities such as pressure, temperature and flow rate, such as in food, pharmaceutical, cosmetic, clean steam, wine, beverage and biochemical industrial process control applications. It features a compact structure, easy assembly and disassembly, and high regulation accuracy. Especially, it has the advantages of small pressure drop loss, large flow rate, wide adjustable range and high flow accuracy, fully complying with the IEC534-1-1978 standard. The leakage of the valve complies with the ANSIB16.104 standard. The control valve is equipped with different multi-spring actuators, providing a large output force. The angular design ensures self-discharge of the valve. The standard electronic polishing makes the smooth surface clean and free of medium accumulation areas, thus avoiding potential pollution. Quick disassembly and assembly of the valve body and valve cap make valve opening and maintenance quick and easy, reducing process downtime.
Main Components Material Of Stainless Steel Pneumatic Sanitary Control Valve:
|
MATERIAL SPECIFICATION
|
|||||
|
Valve body
|
SS304/314/316/316L
|
||||
|
Bonnet
|
SS304/314/316/316L
|
||||
|
Gasket
|
PTFE
|
||||
|
Valve trim
|
SS304/314/316/316L
|
||||
|
Clamp
|
SS304/314/316/316L
|
||||
|
Packing
|
PTFE
|
||||
|
Diaphragm cover
|
Normal: Q235, Special: SS304
|
||||
|
Diaphragm
|
NBR with reinforced polyester fabric
|
||||
|
Spring
|
Normal: 60Si2Mn, Special: 50CrVA
|
||||
Main Features ( Accord With GB/T 4213-2008 Standard) Of Pneumatic Control Valve:
|
MAIN FEATURES (Accord with GB/T 4213-2008 standard)
|
||||||||||
|
Item
|
Without Positioner
|
Positioner
|
||||||||
|
Intrinsic Error ＜(%)
|
±5.0
|
±1.0
|
||||||||
|
Hysteresis Error ＜(%)
|
3.0
|
1.0
|
||||||||
|
Dead Band ＜(%)
|
3.0
|
0.4
|
||||||||
|
Rated Flow Coefficient Kv (m³/h)
|
Air to Open
|
Initial
|
±2.5
|
±1.0
|
||||||
|
End
|
±5.0
|
±1.0
|
||||||||
|
Rated Flow Coefficient Kv (m³/h)
|
Air to Close
|
Initial
|
±5.0
|
±1.0
|
||||||
|
End
|
±2.5
|
±1.0
|
||||||||
|
Rated Stroke Deviation
|
≤2.5
|
|||||||||
|
Leakage L/h
|
0.01% X Rated Valve Capacity
|
|||||||||
|
Adjustable Range R
|
30:1
|
|||||||||
Main Technical Data Of Pneumatic Diaphragm Food Grade Control Valve:
|
MAIN TECHNICAL DATA
|
||||||||||
|
Nominal Diameter (mm)
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
|
|
Seat Diameter (mm)
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
|
|
Rated Flow Coefficient Kv (m³/h)
|
Linearity
|
5.2
|
6.3
|
6.9
|
11.2
|
17.6
|
27.5
|
44.7
|
69.3
|
110
|
|
Equal Percentage
|
4.8
|
5.6
|
6.3
|
10.5
|
16
|
25
|
40.5
|
63.6
|
100
|
|
|
Rated Stroke (mm)
|
10
|
25
|
40
|
|||||||
|
Actuator Model
|
SGMA/B-1
|
SGMA/B-2
|
SGMA/B-3
|
|||||||
|
Nominal Pressure
|
0.6Mpa, 1.0Mpa
|
|||||||||
|
Valve Spool
|
Single seat plunger type spool
|
|||||||||
|
Flow Characteristic
|
Linearity, Equal percentage
|
|||||||||
External Dimension Of Stainless Steel 316 Pneumatic Diaphragm Sanitary Control Valve:
|
DN
|
Inch
|
L
|
H1
|
H2
|
H3
|
L1
|
A
|
C
|
|
25
|
1"
|
100
|
100
|
470
|
180
|
289
|
282
|
220
|
|
40
|
1-1/2"
|
105
|
125
|
480
|
180
|
289
|
282
|
220
|
|
50
|
2"
|
105
|
125
|
480
|
180
|
289
|
282
|
220
|
|
65
|
2-1/2"
|
155
|
175
|
510
|
236
|
347
|
360
|
270
|
|
80
|
3"
|
155
|
175
|
510
|
236
|
347
|
360
|
270
|
Pneumatic Diaphragm Actuator Acting Comparison:
| Direct Acting (Air To Close) | Reverse Acting (Air To Open) |
| Spindle Movement With Increase In Air Pressure | Spindle Movement With Increase In Air Pressure |
| Spring Retract Normally Open | Spring Extend Normally Closed |
| Fail To Close FO | Fail To Close FC |
