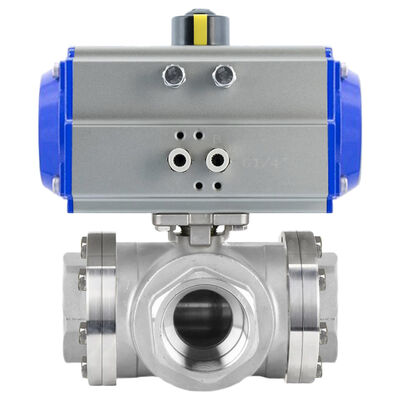

3 Way Pneumatic Actuator Valve SS304 L Port Socket Weld 3inch 150LB With Double Action

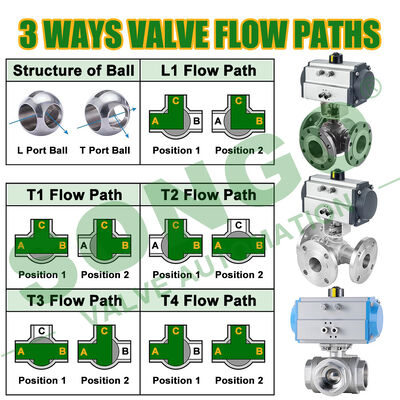

The pneumatic stainless steel 304 thread ball valve is a pipeline control device with a ball as the closing member. It mainly achieves medium cutting off, distribution and flow direction regulation through the 90° rotation of the ball. The valve body material of the pneumatic operated stainless steel 3 way ball valve is stainless steel 304, stainless steel 316, WCB, duplex steel, alloy steel, etc. The ‌ t-type structure ‌ can achieve the diversion and convergence of the medium ‌, and the l-type structure ‌ can achieve the switching of the medium flow direction. The pneumatic actuated stainless steel 3 way ball valve features excellent corrosion resistance and high strength, with a long service life, making it particularly suitable for harsh environments. The applicable temperature range of the pneumatic stainless steel three-way ball valve is -40℃ to +450℃. The pneumatic stainless steel three-way ball valve features a bidirectional flow with low resistance design and excellent sealing performance. The pneumatic stainless steel three-way ball valve supports multiple thread connection standards such as NPT, BSPT, and BSPP, as well as flange connections of 10K, 20K, 150LB, 300LB, PN16, and PN25.

01) Actuator Body : Corrosion protected aluminium extruded body.
02) Movement Option : 2 Position 90° Turn , 2 Position 120° Turn , 2 Position 180° Turn , 3 Position 90° Turn , 3 Position 180° Turn.
03) Indicator : It is standard on all actuators.
04) Caps : Aluminium extruded caps provide maximum resistance against corrosion, caps are suitable for single and double acting actuators.
05) Stroke Adjustment : Permit adjustment of ± 5% in both directions.
06) Springs : Cartridge design and corrosion resistant springs.
07) Piston Bearing O-rings : Long lasting
08) Nuts and Bolts : Stainless steel and high resistance for corrosion.
09) Actuator Pistons : Aluminium injections. High quality o-rings and against corrosion.

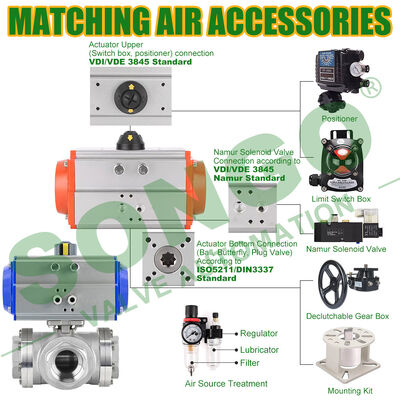

10) Connections : Limit Switch Box , Proximity Switch , P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) , E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) , 3/2 Way Namur Solenoid Valve , 5/2 Way  Namur Solenoid Valve , Air Filter Regulator , Declutchable Gear Box , Ball Valve , Butterfly Valve , Plug Valve
11) Cycle Life : 1,000,000 Operations

Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.

Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.

● Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?

A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.

● Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?

A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.

● Q3: WHAT IS YOUR TERMS OF PAYMENT?

A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

● Q4: WHAT IS YOUR TERMS OF DELIVERY?

A4: EXW, FOB, CFR, CIF, DAP, DDP.

● Q5: HOW ABOUT YOUR DELIVERY TIME?

A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

● Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

A6: Yes, we have 100% test before delivery.

● Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
