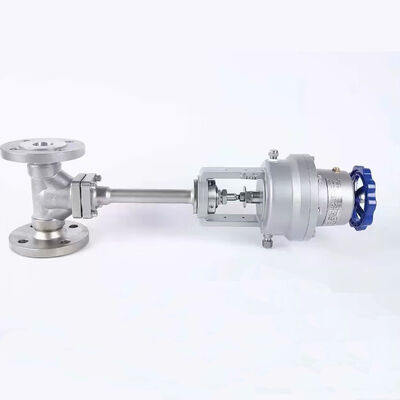

SONGO Cryogenic Cut off Valve Socket Weld Type Pneumatic Emergency Shut off Valve flange type Liquefiede Oxygen DJ66F-40P

SONGO Cryogenic Cut off Valve Socket Weld Type Pneumatic Emergency Shut off Valve flange type Liquefiede Oxygen DJ66F-40P

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥4,804.25/pieces 2-29 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000-3000 pcs/month

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Body:

Stainless Steel 304/316

Disc:

F6a,F304(L),F316(L),F51

Stem:

SS304(L),SS316(L)

Bonnet:

A105N,F304(L),F316(L),LF2,F51

Pressure:

PN16~ PN40

Port Size:

DN10~ DN100 (3/8"~4")

Connection Type:

Flanged,Socket Weld,Butt Weld,Thread Type

Temperature:

-196~+80℃

Medium:

LO2,LN2,LAr,LNG,CO2

Drive Pressure:

0.4~0.7MPa

Brand Name:

SONGO

Customized Support:

OEM, ODM

Warranty:

1 Year Old

Packaging Details:

Export wooden cases, carton boxes, export wooden pallets

Product Description

Overview of Cryogenic Pneumatic Weld Cut Off Valve:

The pneumatic low temperature cut-off valve is automated safety valve specially designed for extreme low temperature environments. It can quickly cut off liquefied gases or cryogenic fluids in emergency situations, ensuring the safety of the system. It features rapid response, strong adaptability to low temperatures, and reliable sealing. It is widely used in storage, transportation and delivery systems for ultra-low temperature media such as liquefied natural gas (LNG), liquid oxygen, liquid nitrogen, and liquid argon.

The Features Of Cryogenic Pneumatic Shut Off Globe Valve:

1). Using forged stainless steel body, Inconel 625 stem, PCTFE seat, ensures zero leakage sealing of the valve.

2). Extended Bonnet design to prevent packing from freezing - accommodates valve stem cold contraction.

3). Rapid Shutdown,Double-acting pneumatic actuator with < 1-second response time.

4). Fail-Safe Operation,Spring-return models for FC/FO (fail-close/fail-open) emergency modes.

Main Technical Specification Of Stainless Steel Pneumatic Cut Off Valve:

Nominal Pressure:	4.0MPa
Design Temperature:	-196℃~+75℃
Suitable Media:	LO2,LN2,LAr,LNG,CO2
Connection:	Socket Weld,Butt Weld,Flange
Air Pressure:	0.4~0.7MPa
Nominal Diameter:	15mm-100mm
Emergency Cut-off Time:	<2s
Body,Cover:	CF8
Disc,Stem:	S30408
Disc Seals:	PCTFE

Structure Dimension Drawing Of Pneumatic Cryogenic Globe Valve:

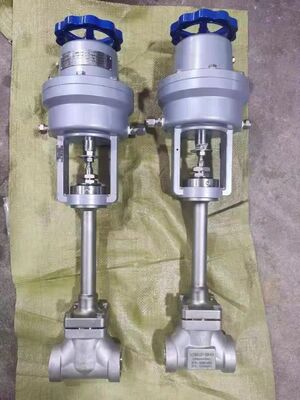

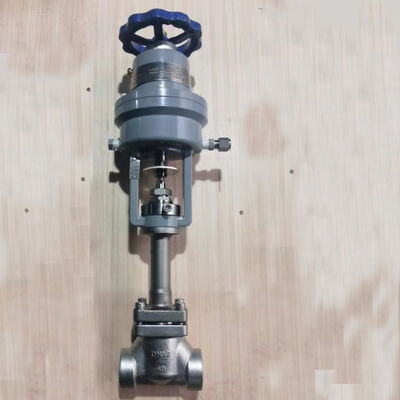

Socket Weld Type Cryogenic Pneumatic Shut Off Valve:

Type	Major Overall & Connection Dimensions(mm)										Max Nominal Pressures(Mpa)
Type	H	H1	D	D0	D1	D2	B	W1	W2	M	Max Nominal Pressures(Mpa)
SONGO-15	457	175	ɸ100	ɸ15	ɸ22.2	ɸ29.5	6	65	ɸ130	Rc 1/4	2.5
SONGO-20	479	179	ɸ100	ɸ20	ɸ27.7	ɸ36	8	80	ɸ130	Rc 1/4	2.5
SONGO-25	486	186	ɸ100	ɸ25	ɸ34.5	ɸ43.5	8	90	ɸ130	Rc 1/4	2.5
SONGO-32	500	200	ɸ100	ɸ32	ɸ43.2	ɸ53	8	105	ɸ130	Rc 1/4	2.5
SONGO-40	577	223	ɸ125	ɸ40	ɸ49	ɸ62	8	120	ɸ160	Rc 1/4	2.5
SONGO-50	587	233	ɸ125	ɸ50	ɸ61.1	ɸ72	10	140	ɸ160	Rc 1/4	2.5

Butt Weld Type Cryogenic Pneumatic Shut Off Valve:

Type	Major Overall & Connection Dimensions(mm)										Max Nominal Pressures(Mpa)
Type	H	H1	D	D0	D1	D2	B	W1	W2	M	Max Nominal Pressures(Mpa)
SONGO-65	654	250	ɸ140	ɸ140	ɸ70	ɸ76	7	216	ɸ207	Rc 1/4	2.5
SONGO-80	780	325	ɸ200	ɸ200	ɸ81	ɸ89	8	241	ɸ250	Rc 1/4	2
SONGO-100	780	325	ɸ200	ɸ200	ɸ100	ɸ108	9	292	ɸ250	Rc 1/4	1.6

Flange Type Cryogenic Pneumatic Shut Off Valve:

SONGO Cryogenic Cut off Valve Socket Weld Type Pneumatic Emergency Shut off Valve flange type Liquefiede Oxygen DJ66F-40P 2

Type	Major Overall & Connection Dimensions(mm)										Max Nominal Pressures(Mpa)
Type	H	H1	DN	D	D1	n-ɸd	L	W	W2	M	Max Nominal Pressures(Mpa)
SONGO-10F	550	268	ɸ10	ɸ90	ɸ60	4-14	110	ɸ100	ɸ130	Rc 1/4	2.5
SONGO-15F	550	268	ɸ15	ɸ95	ɸ65	4-14	110	ɸ100	ɸ130	Rc 1/4	2.5
SONGO-20F	592	292	ɸ20	ɸ105	ɸ75	4-14	140	ɸ100	ɸ130	Rc 1/4	2.5
SONGO-25F	592	292	ɸ25	ɸ115	ɸ85	4-14	140	ɸ100	ɸ130	Rc 1/4	2.5
SONGO-32F	624	324	ɸ32	ɸ135	ɸ100	4-18	160	ɸ100	ɸ130	Rc 1/4	2.5
SONGO-40F	678	324	ɸ40	ɸ145	ɸ110	4-18	160	ɸ125	ɸ160	Rc 1/4	2.5
SONGO-50F	754	400	ɸ50	ɸ160	ɸ125	4-18	200	ɸ125	ɸ160	Rc 1/4	2.5
SONGO-65F	804	400	ɸ65	ɸ180	ɸ145	4-18	200	ɸ140	ɸ207	Rc 1/4	2.5
SONGO-80F	943	488	ɸ80	ɸ195	ɸ160	8-18	260	ɸ200	ɸ250	Rc 1/4	2
SONGO-100F	947	492	ɸ100	ɸ230	ɸ190	8-23	292	ɸ200	ɸ250	Rc 1/4	1.6

Pneumatic Diaphragm Actuator Acting Comparison:

Direct Acting (Air To Close)	Reverse Acting (Air To Open)
Spindle Movement With Increase In Air Pressure	Spindle Movement With Increase In Air Pressure
Spring Retract Normally Open	Spring Extend Normally Closed
Fail To Close FO	Fail To Close FC

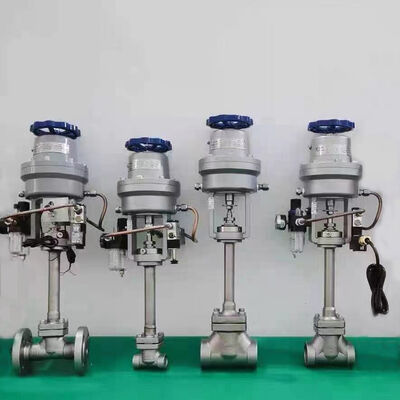

29 Years Valve Factory Founded In 1996:

SONGO Cryogenic Cut off Valve Socket Weld Type Pneumatic Emergency Shut off Valve flange type Liquefiede Oxygen DJ66F-40P 4

SONGO Cryogenic Cut off Valve Socket Weld Type Pneumatic Emergency Shut off Valve flange type Liquefiede Oxygen DJ66F-40P 5

SONGO Cryogenic Cut off Valve Socket Weld Type Pneumatic Emergency Shut off Valve flange type Liquefiede Oxygen DJ66F-40P 6

Good Feedback From 12382 Clients:

SONGO Cryogenic Cut off Valve Socket Weld Type Pneumatic Emergency Shut off Valve flange type Liquefiede Oxygen DJ66F-40P 7

No Worries After Buy Our Valves With Our Engineers:

R & D Team Technical Supporting:

SONGO Cryogenic Cut off Valve Socket Weld Type Pneumatic Emergency Shut off Valve flange type Liquefiede Oxygen DJ66F-40P 9

Frequently Asked Questions:

● Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?

A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.

● Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?

A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.

● Q3: WHAT IS YOUR TERMS OF PAYMENT?

A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

● Q4: WHAT IS YOUR TERMS OF DELIVERY?

A4: EXW, FOB, CFR, CIF, DAP, DDP.

● Q5: HOW ABOUT YOUR DELIVERY TIME?

A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

● Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

A6: Yes, we have 100% test before delivery.

● Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

6 cryogenic liquefiede oxygen cut off valve ree sample Wholesale Customized High Quality Made in China Manufacturer factory.
