| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥640.57/pieces 2-29 pieces |
| Payment Terms: | L/C,D/A,T/T,D/P,Western Union |
| Supply Ability: | 5000-10,000Pieces/Month |

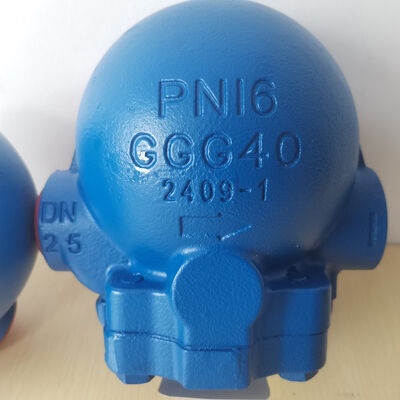

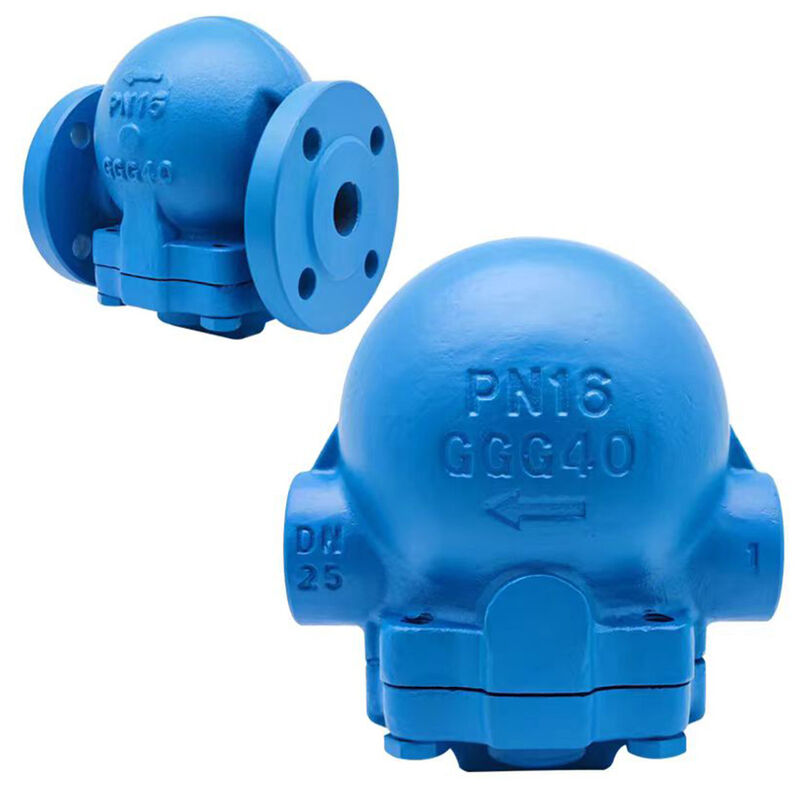

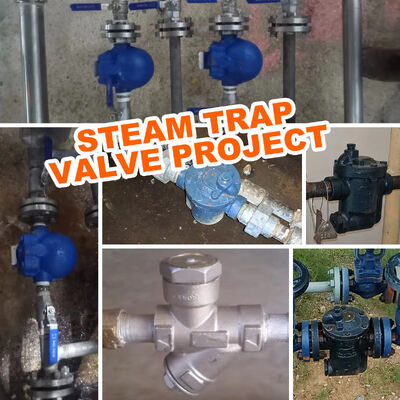

Descriptions Of Lever Float Ball Steam Trap:
The lever float type steam trap is widely used and is highly efficient even under light or heavy condensate loads. Although it is small in size, its drainage volume is continuous and efficient, ensuring maximum heat transfer. Such valves are the best choice for those with automatic temperature control drainage devices. (FT14 diameter: DN15-DN25, flow rate: less than 2100 kg/h)
Design Features Of Lever Float Ball Steam Trap:
1). Not affected by pressure, temperature, or fluctuations in condensate water flow, it continuously discharges water as soon as there is any water present, with a minimum supercooling degree of 0℃.
2). It can automatically eliminate non-condensing gases, is very sensitive, has high working quality and a long service life.
3). Lever Float Ball Steam Trap the internal structure involves a float connected to a lever that drives the valve core. The valve opens and closes in response to the rise and fall of the condensate water level.
4). Monitor and respond in real time to changes in condensate water volume, and continuously discharge the liquid
5). It adopts a locking design to effectively prevent steam from escaping
Part Material Of Lever Float Ball Steam Trap:
| NO. | Part name | Material | NO. |
Part name
|
Material |
| 1 | Body | CI,WCB,SS304 | 8 | Vale seat | A276 430 |
| 2 | Bonnet | CI,WCB,SS304 | 9 | spring | 17-4PH |
| 3 | Bonnet bolt | 42CrMoA | 10 |
Diaphragm capsule |
SS304 |
| 4 | Float ball | SS304 | 11 |
Diaphragm support plate |
SS304 |
| 5 | Main valve core | SUS440 | 12 |
Diaphragm seat |
A276 430 |
| 6 | Main valve bolt | 42CrMoA | 13 |
Diaphragm retaining cover |
SS304 |
| 7 | Bracket | SS304 | 14 | Bonnet gasket | SS304+Graphite |
Structure Dimension Drawing Of Lever Float Ball Steam Trap:
| FT14 Thread type | ||||||
| Size | A | B | C | D | Weight (Kg) | |
| DN15 | 121 | 107 | 67 | 147 | 2.8 | |
| DN20 | 121 | 107 | 67 | 147 | 2.8 | |
| DN25 | 145 | 107 | 67 | 166 | 4 | |
| FT14HC Thread type | ||||||
| DN15 | 121 | 120 | 75 | 198 | 8.8 | |
| DN20 | 121 | 120 | 75 | 198 | 8.8 | |
| DN25 | 121 | 120 | 75 | 198 | 8.8 | |
| FT14 Flange type | ||||||||
| Size | A | B | C | D | D1 | D2 | D3 | Weight (Kg) |
| DN15 | 150 | 107 | 101 | 55 | 95 | 65 | 45 | 4.5 |
| DN20 | 150 | 107 | 101 | 55 | 105 | 75 | 55 | 5 |
| DN25 | 160 | 70 | 70 | 100 | 115 | 85 | 65 | 6.5 |
