| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥1,544.48/pieces 2-29 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 5000-10,000Pieces/Month |

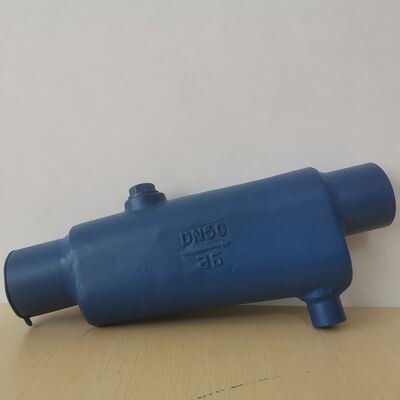

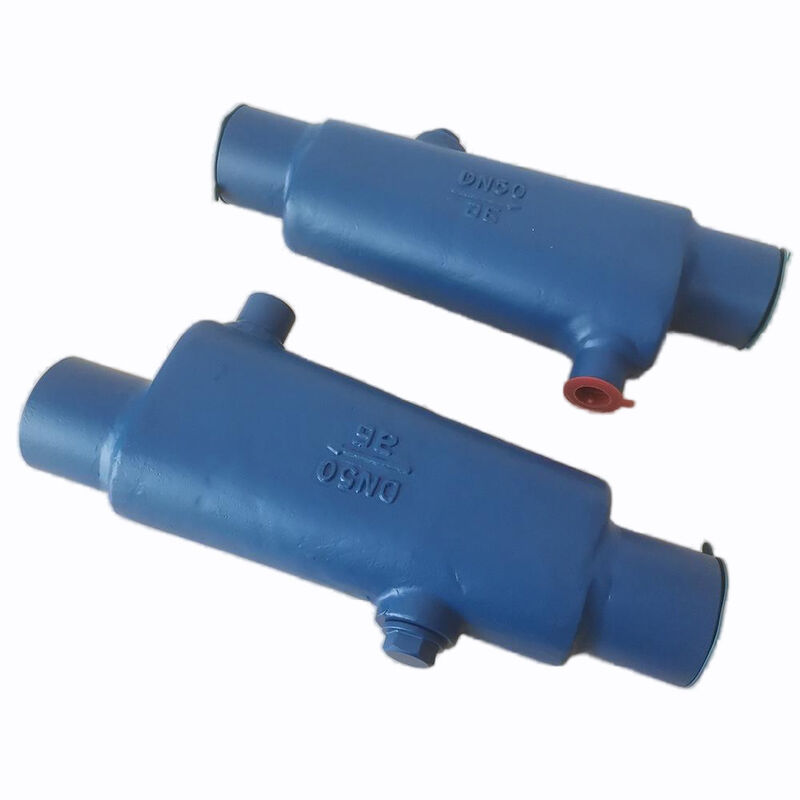

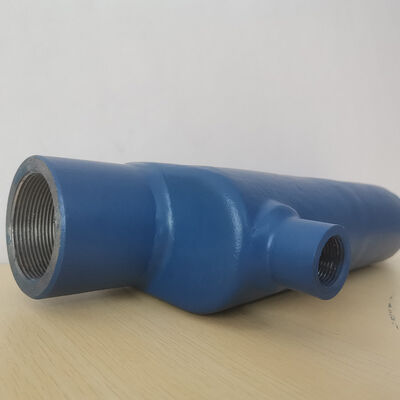

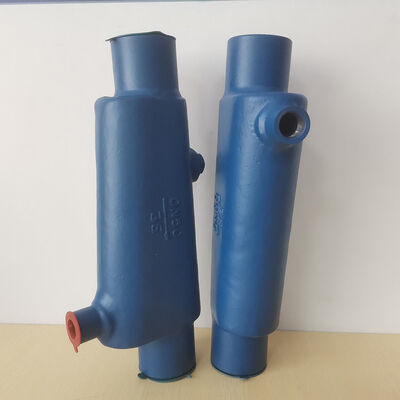

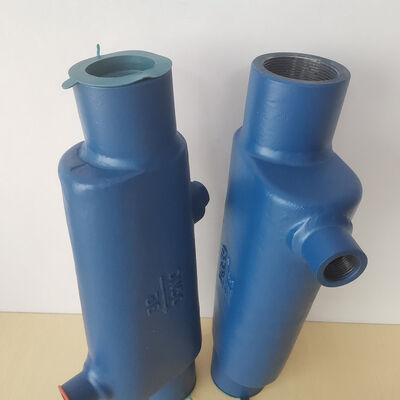

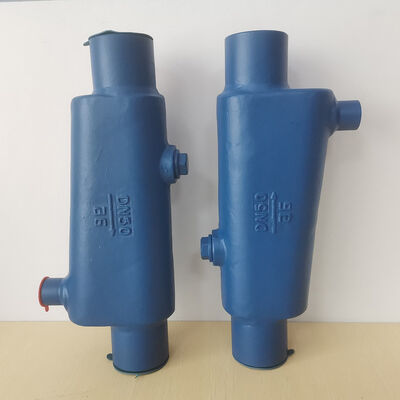

Working principle Of Steam Separator :
The Steam separator, which is used to separate steam, compressed air and other droplets contained in gas . It can improve the working performance of the separator when equipped with a thermal insulation jacket.The steam with a large amount of water enters the steam separator and moves in a centrifugal downward slope in it. The entrained water is separated due to the reduced speed. The separated liquid flows into the lower part and is discharged from the body through the steam trap, and the dry and clean steam is discharged from the outlet of the separator. A105 Pipe Material
Design Standard Of Steam Separator :
1). Design standard:ISO6552 GB/T22654
2). Connection length GB/T12250
3). Testing and inspection GB/T12251
4). Valve Max pressure PN40.
5). Max temp 300°C
6). Maximum pressure difference 32Bar.
Structure Dimension Drawing Of Steam Separator :
| CF11 Thread type | |||
| Size | A | B | C |
| DN15 | 148 | 115 | 156 |
| DN20 | 148 | 115 | 156 |
| DN25 | 148 | 155 | 222 |
| CF41 Flange type | |||
| Size | A | B | C |
| DN40-DN65 | 460 | 80 | 260 |
| DN80 | 480 | 100 | 150 |
| DN100-125 | 540 | 120 | 150 |
| DN150 | 630 | 150 | 170 |
