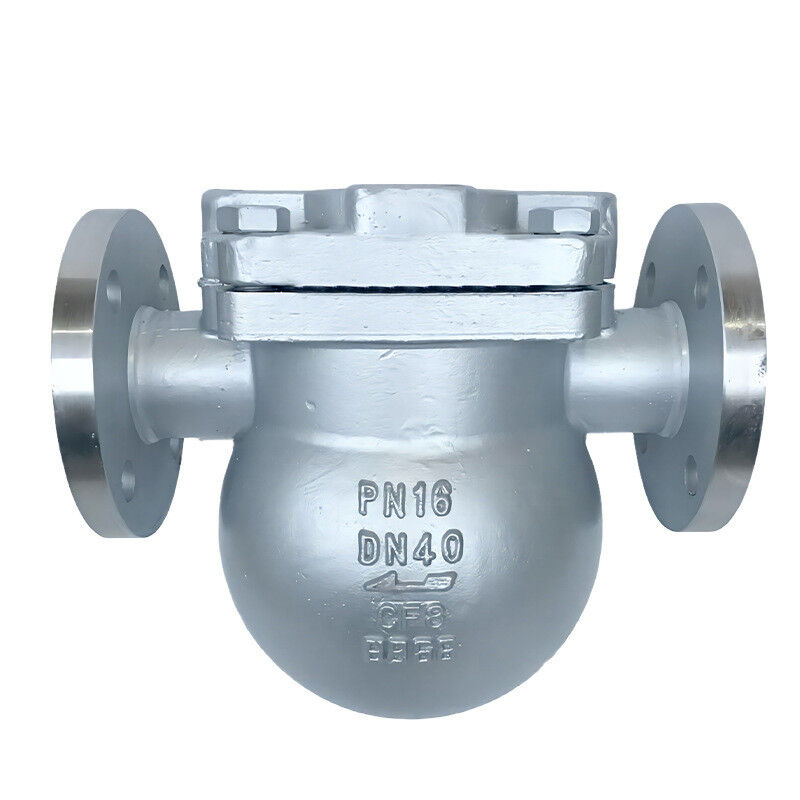

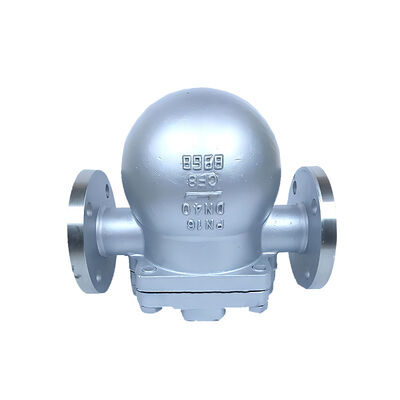

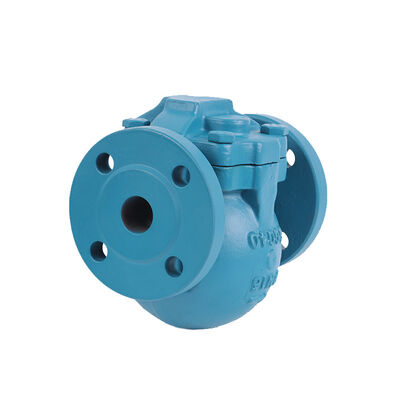

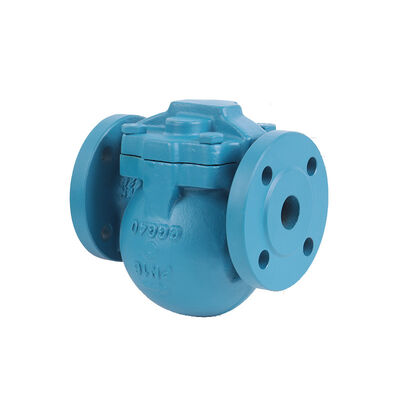

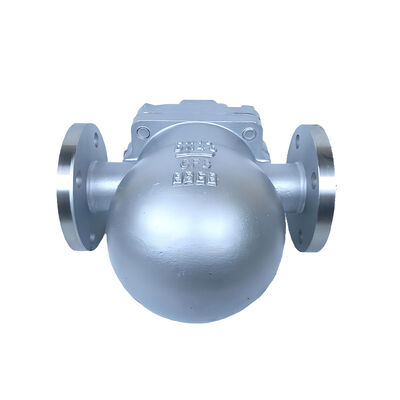

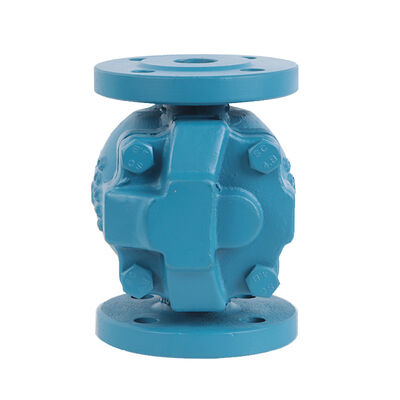

Lever Float Single Seat Thermostatic Steam Trap 16bar 25bar 40bar Automatic Drain Valve

Descriptions Of Lever Float Single Seat Steam Trap:

The single-seat lever float type steam trap can continuously discharge saturated condensate water. This ensures that there is no water accumulation in the heating equipment, achieving higher efficiency. It is not affected by changes in steam pressure. The float drives the lever to automatically adjust the opening degree of the valve seat hole. This valve operates continuously, has stable performance, no air lock phenomenon, and operates smoothly without noise.

Working principle of Lever Float Single Seat Steam Trap:

When the system is initially started, the automatic air discharge device is in an open state, quickly removing the non-condensable gases in the system. When steam and hot condensed water enter, the temperature in the valve chamber rises, and the air discharge device automatically closes; at this time, the float rises and falls automatically with the water level, driving the lever to adjust the opening degree of the valve seat hole, and continuously discharging the condensed water. When the condensed water stops entering, the float descends due to its own weight, driving the lever to drive the valve core to close the valve seat hole. Because the valve seat hole is under the condensate water level, it forms a water seal, and during operation, there is no fresh steam leakage.

Product advantages Of Lever Float Single Seat Steam Trap:

1). High strength and corrosion resistance Made of WCB material Corrosion allowance, minimum shell wall thickness, pressure and temperature grade are fully considered in the design.

2). Internally installed filter Effectively prevent the pipeline impurities into the valve to ensure the normal operation of the trap Meantime,It also prevents water hammer from damaging internal components

3). Unique air exhaust valve The unique air drain valve makes the trap in the initial or normal operation, no air and other non-condensing gas plugging phenomenon occurs

4). Stainless steel float The fault-free laser-welded float ensures a long service life for the trap

5). Flexible closing system Unique flexible closing mechanism ensures long life without rigid impact Micron class high precision seat spool ensures reliable and tight closing

6). Unique float assembly The carefully calculated float assembly structure enables the closure system to operate in a water-sealed state without steam leakage

Structure Dimension Drawing Of Lever Float Single Seat Steam Trap:
