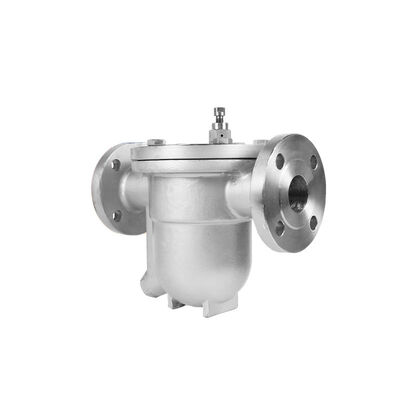

Working principle Of Free Float Flange Steam Trap Valve:
According to the principle of buoyancy, this product makes the ball in the valve body up and down with the change of water level, so as to open or close the valve, which works as draining the water and preventing the steam.
Design Features Of Free Float Flange Steam Trap Valve:
1). It can drain water continuously and perform in a stable way with large capacity and less steam loss.
2). It can saturate the water continuously, which makes less stock of condensation water in the equipment and is quick in heating and stable in heating temperature.
3). It has automatic cold air vent device without air lock situation. It works in balanced way without noisy.
Installation Instructions Of Free Float Flange Steam Trap Valve:
1). For horizontal installation, it should be placed at a position lower than the point where the equipment's condensate water is discharged, so as to ensure that the accumulated water can be drained promptly.
2). The upward-flowing direction mark on the valve body should be consistent with the direction of the condensate flow within the steam pipeline.
3). To prevent impurities from entering the steam trap, it is necessary to remove the debris in front of the filter in a targeted manner to ensure that the steam trap can function properly.
4). The automatic venting device, such as the valve, if it operates abnormally, loosen the screw on the venting device to allow the air inside the valve to be discharged.
5). If there is a leakage phenomenon, it might be due to excessive dirt in the valve body. In such cases, the valve's lower screw hole should be opened to blow out the dirt.
Structure Dimension Drawing Of Free Float Flange Steam Trap Valve:
| Product model | CS11H-16C | ||||||
| Size(mm) | DN | 15 | 20 | 25 | 32 | 40 | 50 |
| L | 150 | 150 | 150 | 270 | 280 | 290 | |
| H | 92 | 92 | 92 | 142 | 182 | 192 | |
| H1 | 103 | 103 | 103 | 108 | 108 | 108 | |
| Product model | DN(mm) | Size(mm) | |||||||
| CS41H-16C-B | L | H | D | D1 | D2 | b | f | Z-Φd | |
| 15 | 195 | 195 | 95 | 65 | 45 | 14 | 2 | 4-Φ14 | |
| 20 | 195 | 200 | 105 | 75 | 55 | 14 | 2 | 4-Φ14 | |
| 25 | 215 | 225 | 115 | 85 | 65 | 14 | 2 | 4-Φ14 | |
| CS41H-16C-D | 25 | 270 | 280 | 115 | 85 | 65 | 14 | 2 | 4-Φ14 |
| 32 | 270 | 280 | 135 | 100 | 78 | 16 | 2 | 4-Φ18 | |
| 40 | 280 | 290 | 145 | 110 | 85 | 16 | 3 | 4-Φ18 | |
| 50 | 290 | 300 | 160 | 125 | 100 | 16 | 3 | 4-Φ18 | |
