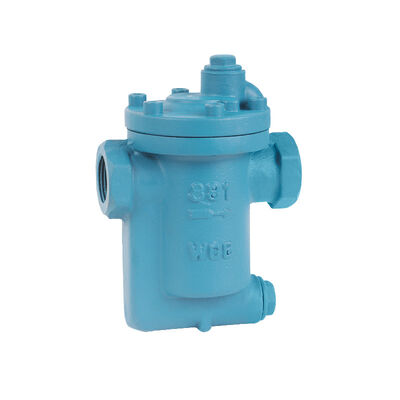

Bucket Steam Trap Valve CS11H 25bar SS304 Carbon Steel NPT Threaded With Filtration Check

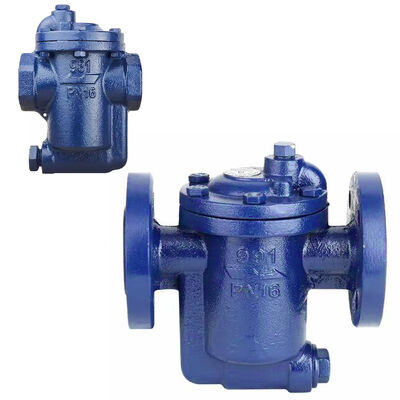

Descriptions Of inverted bucket type steam trap:

The inverted bucket type steam trap is a mechanical type steam trap device, belonging to industrial fluid control equipment. This valve utilizes the density difference between condensate water and steam to control the lifting and lowering of the inverted floating bucket through a lever system to achieve the opening and closing of the valve. The structure adopts stainless steel moving parts and a top exhaust hole design, featuring wear resistance, anti-water hammer and continuous air discharge functions. The valve seat position design has self-cleaning capability, is suitable for high back-pressure conditions, and the internal parts can be disassembled, making it applicable to different temperature and pressure conditions.

Design Features Of inverted bucket type steam trap:

1). The valve body and valve cover are all made of cast steel.

2). All the internal components are made of stainless steel. When designing the moving parts, the wear allowance has been fully considered, which has increased the service life of the steam trap

3). The U-shaped flow channel design achieves a water seal effect, ensuring no steam leakage

4). Install a waterproof hammer device to prevent water hammer from occurring in the fluid entering the valve body.

5). Built-in check valve and filter enable the steam trap to operate in a clean environment.

6). After stopping the steam supply, the screw cap can be opened to drain the condensate water to prevent the steam valve from being damaged due to freezing at low temperatures.

Structure Dimension Drawing Of Inverted bucket type steam trap:

Part material Of Inverted bucket type steam trap:
