| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥419.93/pieces 2-29 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 5000-10,000Pieces/Month |

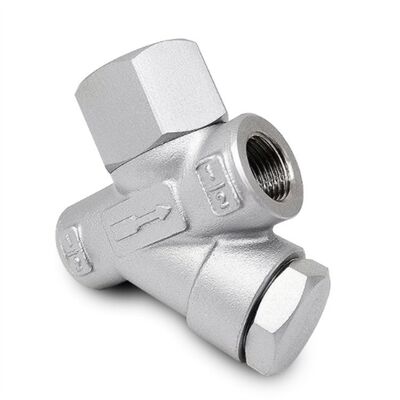

Descriptions Of thermodynamic trap valve:
The thermal dynamic steam trap is a type of valve designed based on thermodynamic principles for steam systems. Its core component is a disc-shaped valve plate. It operates by using the difference in flow velocity and volume between steam and condensate to drive the valve plate to open and close, thereby achieving the automatic function of blocking steam and draining water . It has a compact structure and is lightweight. The main body is made of stainless steel and possesses anti-water hammer and corrosion resistance properties, making it suitable for high-temperature and high-pressure steam pipeline environments.
Design Features Of thermodynamic trap valve:
1). The thermal dynamic type steam trap can operate within the entire working range without the need for adjustment or replacement of internal components.
2). Compact in structure, simple in design, lightweight in weight, and large in displacement.
3).The thermal dynamic steam trap can be used for high-pressure and overheated steam. It is resistant to water hammer and vibration. The stainless steel structure can resist corrosion from condensate water.
4). Thermal-powered steam traps are not prone to being damaged by freezing. However, when the disc is in a vertical position and directly exposed to the atmosphere, the edges of the disc are prone to wear and tear.
5). Since the disc is the only moving part, it is very convenient to maintain and does not require the removal of the drain valve from the pipe.
6). When the drain valve is opened or closed, it makes a clear "clicking" sound, which makes it easy to monitor the working condition of the drain valve.
Structure Dimension Drawing Of thermodynamic trap valve:
| product model | size(DN) | connection type | L | H1 | H2 | W |
|
Y type CS49H-16C |
15 | Flange | 150 | 55 | 50 | 61 |
| 20 | Flange | 150 | 55 | 58 | 61 | |
| 25 | Flange | 160 | 58 | 62 | 61 | |
| 32 | Flange | 210 | 71 | 80 | 79 | |
| 40 | Flange | 230 | 75 | 90 | 79 | |
| 50 | Flange | 230 | 85 | 105 | 79 | |
|
Straight through type CS49H-16C |
65 | Flange | 280 | 100 | 82 | 85 |
| 80 | Flange | 310 | 118 | 92 | 110 | |
| 100 | Flange | 310 | 128 | 102 | 110 |
| product model | size(DN) | connection type | L | H1 | H2 | W |
|
CS19H-16C |
15 | Female thread | 80 | 55 | 50 | 61 |
| 20 | Female thread | 90 | 55 | 58 | 61 | |
| 25 | Female thread | 95 | 58 | 62 | 61 | |
| 32 | Female thread | 130 | 71 | 80 | 79 | |
| 40 | Female thread | 130 | 75 | 90 | 79 | |
| 50 | Female thread | 150 | 85 | 105 | 79 | |
|
CS69H-16C
|
15 | Socket welded | 80 | 55 | 50 | 61 |
| 20 | Socket welded | 90 | 55 | 58 | 61 | |
| 25 | Socket welded | 95 | 58 | 62 | 61 | |
| 32 | Socket welded | 130 | 71 | 80 | 79 | |
| 40 | Socket welded | 130 | 75 | 90 | 79 | |
| 50 | Socket welded | 150 | 85 | 105 | 79 |
