| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥5,195.71/pieces 2-29 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 30000 Piece/Pieces per Month |

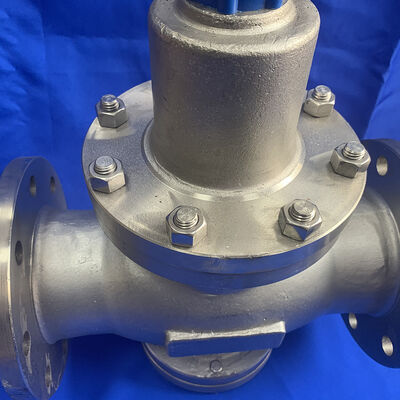

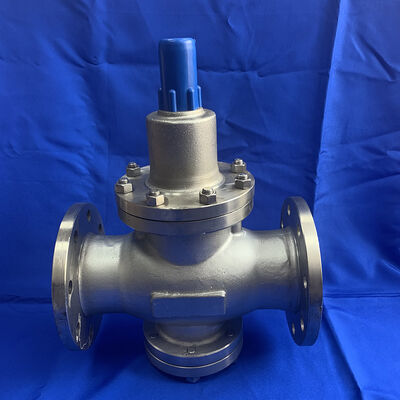

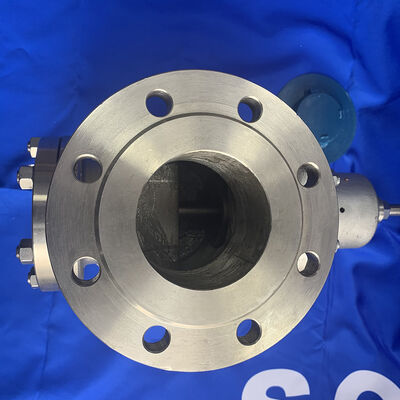

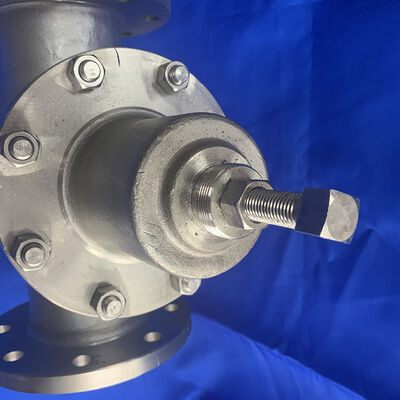

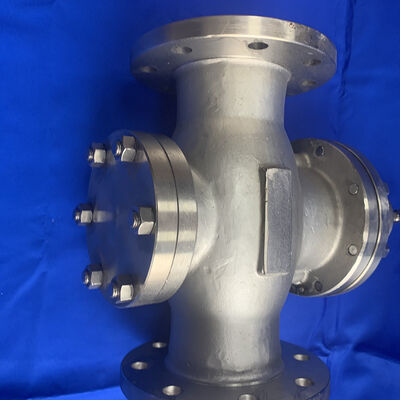

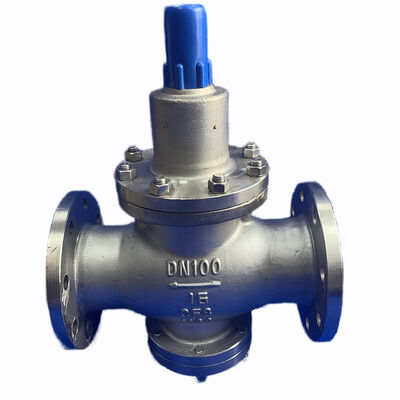

Descriptions Of EPDM Diaphragm Pressurel Reducing Valve:
The diaphragm type pressure reducing valve is a direct acting pressure reducing valve. Its core component is a diaphragm. This diaphragm is used to sense the changes in the outlet pressure and drive the valve core to move, thereby automatically adjusting the valve opening to achieve the purpose of reducing the higher inlet pressure and stabilizing it at a set, lower outlet pressure.
Design Features Of Carbon Steel Steam Pressure Reducing Valve:
1). The Diaphragm has a large area and is highly sensitive to changes in the outlet pressure. It can respond quickly and has relatively high pressure stabilization accuracy.
2). The structure is relatively simple, easy to maintain, and has low cost.
3). Suitable for various media. By choosing the appropriate film materials (such as Viton, PTFE lining), corrosive gases, liquids and steam can be handled.
4). The diaphragm can provide better clamping force and has better sealing performance during cutting.
5). Various materials (Carbon Steel, Stainless Steel) and connection methods (Thread, Flange, Weld) are available for selection, depending on different working conditions requirements.
(CV) Flow coefficient
| Nominal Diameter DN(mm) |
CV | Nominal Diameter DN(mm) |
CV |
| 15 | 2 | 125 | 120 |
| 20 | 3.5 | 150 | 140 |
| 25 | 4 | 200 | 230 |
| 32 | 4.5 | 250 | 350 |
| 40 | 14 | 300 | 520 |
| 50 | 14.5 | 350 | 690 |
| 65 | 15 | 400 | 950 |
| 80 | 60 | 500 | 1400 |
| 100 | 64 |
Performance Of Flange Pressure Reducing Valve:
| PN(MPa) | 1.6 | 2.5 | 4 | 6.4 | 10 | 16 |
| Shell Test Pressure(MPa) | 2.4 | 3.75 | 6 | 9.6 | 15 | 24 |
| Seal Test Pressure(MPa) | 1.6 | 2.5 | 4 | 6.4 | 10 | 16 |
| Maximum Inlet Pressure(MPa) | 1.6 | 2.5 | 4 | 6.4 | 10 | 16 |
| Outlet Pressure Range(MPa) | 0.1-1.0 | 0.1-1.6 | 0.1-2.5 | 0.5-3.5 | 0.5-3.5 | 0.5-4.5 |
| Minimum Differential Pressure(MPa) | 0.15 | 0.15 | 0.2 | 0.1 | 0.8 | 1 |
Main Parts And Materials
| NO. | Part Name | Material | ||
| 1 | Bottom Cover | WCB | 304 | 316 |
| 2 | Body | WCB | 304 | 316 |
| 3 | Stem | 2Cr13 | 304 | 316 |
| 4 | Wedge | 2Cr13 | 304 | 316 |
| 5 | Disc Gland | NBR,PTFE,Alloy Steel,WCB,Stainless Steel | ||
| 6 | Seat | 2Cr13 | 304 | 316 |
| 7 | Guide Sleeve | Alloy Cast Iron | ||
| 8 | O-ring | PTFE | ||
| 9 | Unloading Piston | 2Cr13 | 304 | 316 |
| 10 | Diaphragm Block | NBR,EPDM | ||
| 11 | Diaphragm | 304 | 304 | 316 |
| 12 | Spring Washer | 3Cr13 | SUS304 | SUS316 |
| 13 | Regulating Spring | 50CrVA | 50CrVA | 50CrVA |
| 14 | Upper Cover | 25# | 304 | 316 |
| 15 | Spring Washer | 3Cr13 | SUS304 | SUS316 |
| 16 | Regulating Bolt | SUS304 | ||
| 17 | Relief Cover | WCB | 304 | 316 |
Pressure Reducing Valve Dimension
| Nominal Diameter DN |
L | H | H1 | D | K | d | n-ɸ | c | ||||
| PN10/16 | PN25 | PN10/16 | PN25 | PN10/16 | PN25 | PN10/16 | PN25 | |||||
| 15 | 160 | 225 | 90 | 95 | 95 | 65 | 65 | 45 | 45 | 4-14 | 4-14 | 14 |
| 20 | 160 | 265 | 98 | 105 | 105 | 75 | 75 | 55 | 55 | 4-14 | 4-14 | 14 |
| 25 | 180 | 265 | 110 | 115 | 115 | 85 | 85 | 65 | 65 | 4-14 | 4-14 | 14 |
| 32 | 200 | 265 | 110 | 135 | 135 | 100 | 100 | 78 | 78 | 4-18 | 4-18 | 16 |
| 40 | 220 | 320 | 125 | 145 | 145 | 110 | 110 | 85 | 85 | 4-18 | 4-18 | 16 |
| 50 | 250 | 320 | 125 | 160 | 160 | 125 | 125 | 100 | 100 | 4-18 | 4-18 | 16 |
| 65 | 280 | 325 | 130 | 180 | 180 | 145 | 145 | 120 | 120 | 4-18 | 8-18 | 18 |
| 80 | 310 | 385 | 160 | 195 | 195 | 160 | 160 | 135 | 135 | 8-18 | 8-18 | 20 |
| 100 | 350 | 385 | 170 | 215 | 230 | 180 | 190 | 155 | 160 | 8-18 | 8-23 | 20 |
| 125 | 400 | 430 | 200 | 245 | 270 | 210 | 220 | 185 | 188 | 8-18 | 8-25 | 22 |
| 150 | 450 | 430 | 210 | 280 | 300 | 240 | 250 | 210 | 218 | 8-23 | 8-25 | 24 |
| 200 | 500 | 560 | 240 | 355 | 360 | 295 | 310 | 265 | 278 | 8-23/ 12-23 |
12-25 | 26 |
| 250 | 650 | 690 | 290 | 390/405 | 425 | 350/355 | 370 | 320 | 332 | 12-23/ 12-25 |
12-30 | 30 |
| 300 | 800 | 800 | 335 | 440/460 | 485 | 400/410 | 430 | 368/375 | 390 | 12-23/ 12-25 |
16-30 | 34 |
| 350 | 850 | 880 | 375 | 500/520 | 550 | 460/470 | 490 | 428/435 | 448 | 16-23/ 16-25 |
16-34 | 36 |
| 400 | 900 | 980 | 405 | 565/580 | 610 | 515/525 | 550 | 482/485 | 505 | 16-25/ 16-30 |
16-34 | 40 |
| 450 | 900 | 1100 | 455 | 615/640 | 660 | 565/585 | 600 | 532/545 | 555 | 20-25/ 20-30 |
20-34 | 44 |
| 500 | 950 | 1130 | 465 | 670/705 | 730 | 620/650 | 660 | 585/608 | 610 | 20-25/ 20-34 |
20-41 | 48 |
