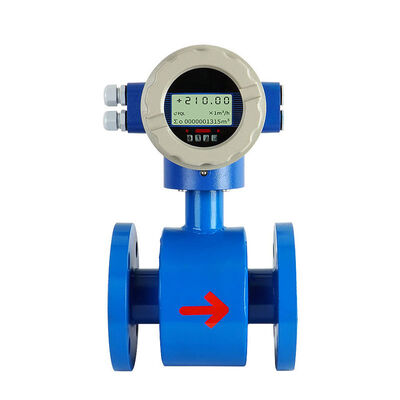

SONGO electromagnetic Flow Meter Carbon Steel stainless steel 304 RS485 Industrial Liquid Control Water Magnetic Flowmeter

SONGO electromagnetic Flow Meter Carbon Steel stainless steel 304 RS485 Industrial Liquid Control Water Magnetic Flowmeter

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥1,992.88/pieces 2-29 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 Pieces/Month

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Warranty:

12 Months

Customized Support:

OEM, ODM

Place Of Origin:

Guangdong, China

Brand Name:

SONGO

Type:

Variable Area Water Flowmeters

Pipe Caliber:

DN15-DN1000

Lining:

Rubber, PTFE (F4), FEP (F46), PFA

Electrode:

Stainless Steel 316L, Hastelloy (HB And HC), Ti, Ta, Pt

Ingress Protection:

IP65 (IP68 Optional)

Output:

4-20mA , RS485

Embeddability:

Less Than 5m (Remote Type IP68)

Immersion Depth:

Less Than 3m (Remote Type IP68)

Cable:

Only For Reomte Type,standard Cable Is 10m

Max Measuring Error:

Measurement Value ±0.5%(Flow Speed > 1m/s)

Packaging Details:

Export Wooden Cases , Export Wooden Pallets , Carton Boxes

Product Description

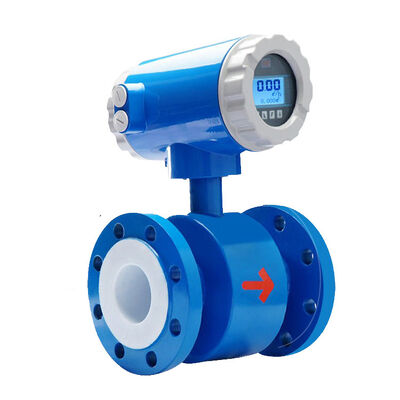

Descriptions Of PTFE Lined Electromagnetic Flowmeter:

The electromagnetic flowmeter is a high-precision flow measurement instrument based on Faraday's law of electromagnetic induction, specifically designed for measuring the volumetric flow of conductive liquids such as water, wastewater, acid and alkali solutions, and slurries. It features no pressure loss, corrosion resistance, and stable measurement, making it an ideal choice for industrial automation and smart water management.

When a conductive liquid flows through the sensor's measuring tube, it cuts the magnetic field lines in a direction perpendicular to the flow, generating an induced electromotive force that is proportional to the flow velocity. Two electrodes installed opposite each other detect this signal, which is then amplified by the converter and converted into a standard output signal (such as 4–20mA, pulse, RS485, etc.), enabling real-time monitoring and data transmission of the flow.

1). The flow measurement results are not affected by changes in the fluid's density, viscosity, temperature, pressure, and conductivity (within a certain range), ensuring long-term stable output.

2). The measuring tube has no moving parts or blocking components, so there is no additional pressure loss, it is less prone to clogging, has low maintenance costs and a long service life.

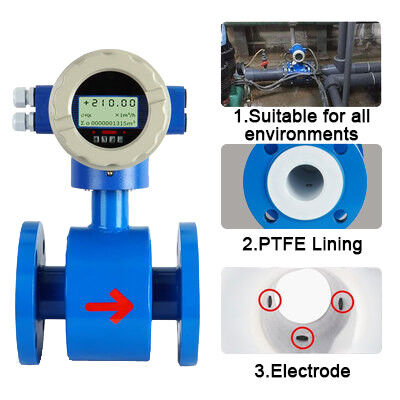

3). By choosing different types of liners (such as polytetrafluoroethylene, rubber) and electrodes (such as 316L stainless steel, Hastelloy alloy, tantalum), it is possible to handle highly corrosive and highly abrasive media.
4). Supports both forward and reverse flow measurement, and has a built-in accumulator to record the total volume. Suitable for complex working conditions.
5). Two types of structures are provided: integrated type and split type. The split type converter can be placed away from harsh environments, facilitating reading and maintenance.

Specification Of Carbon Steel Electromagnetic Flowmeter:

Name	Electromagnetic Flowmeter
Nominal Diameter	DN15-DN1200
Velocity Range	0-10m/s
Accuracy	±0.5%R, ±1%R(<DN20)
Mediium Conductivity	≥5µS/cm, Actual Conductivity≥30µS/cm
Nominal Pressure	1.0MPa	1.6MPa	2.5MPa	4.0MPa
	DN15-DN1200	DN15-DN1200	DN15-DN600	DN15-DN150
Environment temperature	Sensor	0℃~+80℃ or -25℃~+120℃,or +70℃~250℃
	Incorporate Type	-10℃~+55℃
Highest medium temperature	0℃~+250℃
Signal / Ground electrode material	316L	Used in industrial water, domestic water, sewage and other weak corrosive media, widely used in petroleum, chemical, urea, Vinylon and other industrial occasions
	Hastelloy B	Resistant to hydrochloric acid, sulfuric acid, phosphoric acid, hydrofluoric acid, organic acid and other non-oxidizing acid, alkali, non-oxidizing salt solution corrosion
	Hastelloy C	Resistant to oxidizing acids, such as nitric acid, mixed acid or acid and sulfuric acid mixed medium corrosion, also resistant to oxidizing salts, such as PE+,CU+ or other oxidizing agents, such as hypochlorite solution above room temperature seawater corrosion
	Titanium	Resistant to seawater, various chlorides and hypochlorous acids, organic acids, alkalis, etc
	Tantalum	Excellent corrosion resistance, similar to glass, almost all chemical medium corrosion resistance
	Platinum	uitable for all chemicals except aqua regia and ammonium salts
Output signal	4-20mA, Pulse/Frequency 2kHz(Default), 5KHz(Max)
Supply voltage	110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10%
Power dissipation	≤15VA
Digital communication	4-20mA,RS-485, support standard Mudbus protocol; GPRS

Flow Range Of Electromagnetic Flowmeter:

Pipe Diameter(mm) DN	Min Flow Range(m3/h)	Max Flow Range(m3/h)
10	0.0283	2.8274
15	0.0636	6.3615
20	0.1131	11.3094
25	0.1767	17.6709
32	0.2895	28.9521
40	0.4524	45.2376
50	0.7068	70..6838
65	1.1946	119.4555
80	1.8095	180.9504
100	2.8274	282.7350
125	4.4177	441.7734
150	6.3615	636.1538
200	11.3094	1130.9400
250	17.6709	1767.0938
300	25.4462	2544.6150
350	34.6350	3463.5038
400	45.2376	4523.7600
450	572519	5725.1900
500	70.6838	7068.3750
600	101.7846	10178.4600
700	138.5402	13854.0150
800	180.9504	18095.0400
900	229.0154	22901.5350
1000	282.7350	28273.5000

Installation Drawing Of Electromagnetic Flowmeter:

Wire Drawing Of Electromagnetic Flowmeter:

Frequently Asked Questions:

● Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?

A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.

● Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?

A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.

● Q3: WHAT IS YOUR TERMS OF PAYMENT?

A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

● Q4: WHAT IS YOUR TERMS OF DELIVERY?

A4: EXW, FOB, CFR, CIF, DAP, DDP.

● Q5: HOW ABOUT YOUR DELIVERY TIME?

A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

● Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

A6: Yes, we have 100% test before delivery.

● Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
