Descriptions Of Stainless Steel Turbine Flowmeter:
The turbine flowmeter is high-precision velocity-type instrument that measures flow by the rotation of a rotor driven by the fluid. It is widely used for volumetric flow measurement of liquids and gases. Its core advantages lie in high precision, wide range ratio, and good repeatability. It is one of the indispensable flow measurement tools in industrial automation.
Feature of Turbine Flowmeter:
1). Hard alloy bearing thrust type sensor, guarantee precision, improve wear resistance performance.
2). Simple and firm structure, easy to install and disassemble.
3). Wide measuring range, low flow velocity workable.
4). Small pressure loss, fine repeat ability, high precision.
5). High resistance to electromagnetic interference.
6). Multiple connection methods (flange, clamp,thread,) and various output models (4-20mA,RS485,Pulse,HART) are available for selection.
Technical Performance Parameters:
| Size & Process Connection | Thread Connection:DN4,6,10,15,20,32,40,50,65,80,100 |
| Flange Connection:DN15,20,32,40,50,65,80,100,125,150,200 | |
| Clamp Cnnection:DN4,6,10,15,20,25,32,40,50,65,80,100 | |
| Accuracy | ±0.5%,±0.2% Optional |
| Sensor Material | SS304,SS316L Optional |
| Impeller | 2Cr13 |
| Temperature | Medium Temperature:-20~+80℃;Standard:-20~+150℃ Ambient Temperature:-20~+60℃ |
| Signal Output | Pulse;4-20mA,Alarm(optional) |
| Digital Communication | RS485,Modbus rut,HART |
| Power Supply | 24VDC/3.6V Lithium Battery |
| Cable Entry | M20*1.5;1/2" NPT |
| Explosion-proof Class | Ex d IIC T6 Gb |
| Protection Class | IP65;IP67 Optional |
| Structure | Compact,Remote |
| Cable Length | 10mm Standard, Other length optional |
Size-Flow Range-Connection:
| Size | Standard Flow Rnage (m3/h) |
Extenderd Flow Range (m3/h) |
Common Connection & Pressure | Customized Pressure |
| DN4 | 0.04-0.25 | 0.04-0.4 | Thread/6.3MPa | 4-42MPa |
| DN6 | 0.1-0.6 | 0.06-0.6 | Thread/6.3MPa | |
| DN10 | 0.2-1.2 | 0.15-1.5 | Thread/6.3MPa | |
| DN15 | 0.6-6 | 0.4-8 | Thread/6.3MPa | |
| Flange/4.0MPa | ||||
| DN20 | 0.8-8 | 0.45-9 | Thread/6.3MPa | |
| Flange/4.0MPa | ||||
| DN25 | 1-10 | 0.5-10 | Thread/6.3MPa | |
| Flange/4.0MPa | ||||
| DN32 | 1.5-15 | 0.75-15 | Thread/6.3MPa | |
| Flange/4.0MPa | ||||
| DN40 | 2-20 | 1-20 | Thread/6.3MPa | |
| Flange/4.0MPa | ||||
| DN50 | 4-40 | 2-40 | Thread/6.3MPa | |
| Flange/4.0MPa | ||||
| DN65 | 7-70 | 3.5-70 | Thread/1.6MPa | |
| Flange/1.6MPa | ||||
| DN80 | 10-100 | 5-100 | Thread/1.6MPa | |
| Flange/1.6MPa | ||||
| DN100 | 20-200 | 10-200 | Thread/1.6MPa | |
| Flange/1.6MPa | ||||
| DN125 | 25-250 | 12.5-250 | Flange/1.6MPa | |
| DN150 | 30-300 | 15-300 | Flange/1.6MPa | |
| DN200 | 80-800 | 40-800 | Flange/1.6MPa |
Structure Dimension Drawing Of Turbine Flowmeter:
| DN(mm) | Flange Connection | Flange | Thread | Tri-clamp | ||||
| L(mm) | D(mm) | K(mm) | d(mm) | n(Hole Number) | Thick C(mm) |
G(Male) | Clamp O.D(mm) |
|
| 4 | 225 | G1/2" | 50.5 | |||||
| 6 | 225 | G1/2“ | 50.5 | |||||
| 10 | 345 | 90 | 60 | 14 | 4 | 16 | G1/2" | 50.5 |
| 15 | 75 | 95 | 65 | 14 | 4 | 16 | G1" | 50.5 |
| 20 | 80 | 105 | 75 | 14 | 4 | 18 | G1" | 50.5 |
| 25 | 100 | 115 | 85 | 14 | 4 | 18 | G1-1/4" | 50.5 |
| 32 | 120 | 140 | 100 | 18 | 4 | 18 | G1-1/2" | 50.5 |
| 40 | 140 | 150 | 110 | 18 | 4 | 19 | G2" | 64 |
| 50 | 150 | 165 | 125 | 18 | 4 | 21 | G2-1/2" | 77 |
| 65 | 175 | 185 | 145 | 18 | 4 | 21 | G3" | 91 |
| 80 | 200 | 200 | 160 | 18 | 8 | 23 | 106 | |
| 100 | 220 | 220 | 180 | 18 | 8 | 23 | 119 | |
| 125 | 250 | 250 | 210 | 18 | 8 | 25 | ||
| 150 | 300 | 285 | 240 | 22 | 8 | 25 | ||
| 200 | 360 | 340 | 295 | 22 | 12 | 27 | ||
| 250 | 400 | 405 | 355 | 26 | 12 | 29 | ||
| 300 | 450 | 460 | 410 | 26 | 12 | 32 | ||
LCD Display:

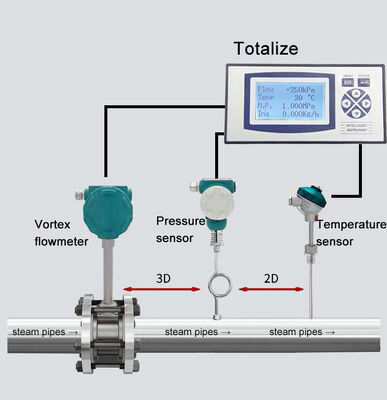

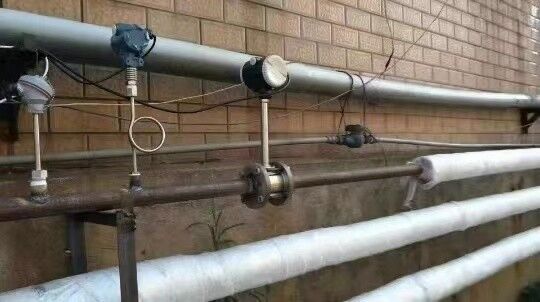

Installation Notice:
