SONGO Digital Straight Stroke IP65 Linear Electric Actuator 4-20ma 3000Nm with 12VDC 24VDC 220VAC

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥2500/pieces 2-29 pieces
Payment Terms:	D/A,L/C,T/T,D/P,Western Union
Supply Ability:	30000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Protection Class:

IP65

Electric Actuator:

ON-OFF Type, 4-20mA/0-10V Regulation Type

Material:

Hard Aluminum Alloy

Structure:

Linear

Voltage:

AC380V, AC220V,AC24V,DC24V

Ambient Temperature:

-20~70℃

Torques:

1000N, 2000N, 3000N, 5000N, 6500N, 10000N,

Dead Zone:

0.3%

Customized Support:

OEM/ODM

Packaging Details:

Carton / wooden box

Highlight:

IP65 linear electric actuator

12VDC 24VDC motorized actuator

3000Nm stroke electric actuator

Product Description

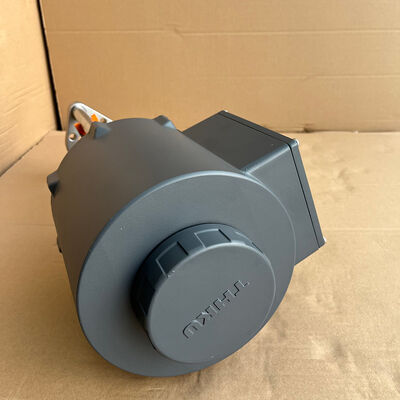

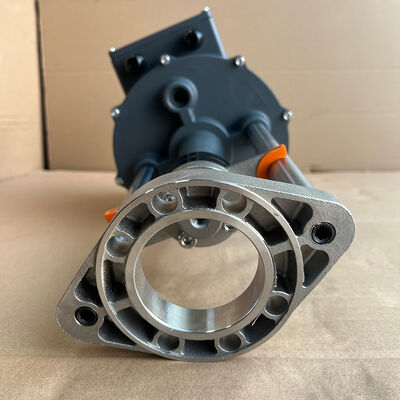

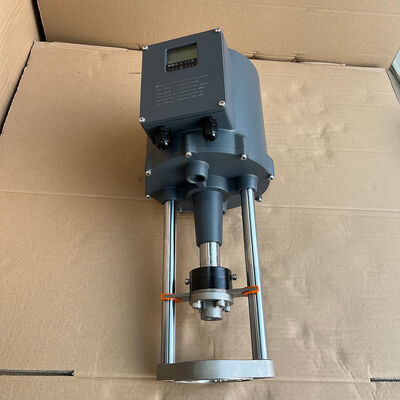

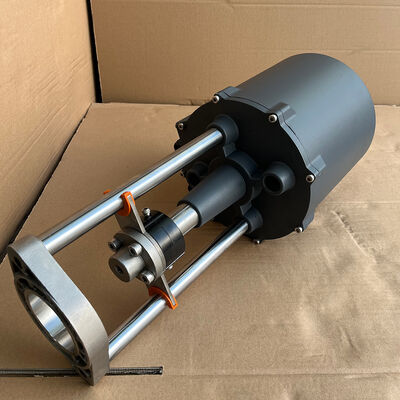

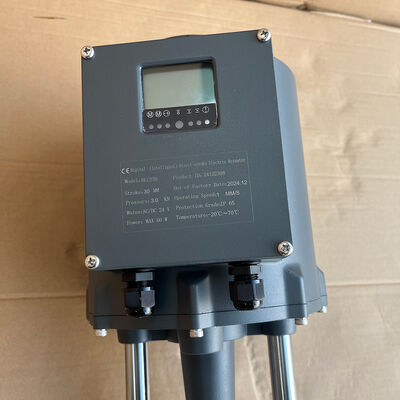

SONGO Digital Straight Stroke IP65 Linear Electric Actuator

High-performance linear electric actuator with 3000Nm thrust, supporting 12VDC, 24VDC, and 220VAC power inputs with 4-20mA control signal.

Product Overview

Songo Actuator incorporates advanced servo drive technology, featuring the proprietary V4.2 control system and A8.2 operating system. This provides extensive customization capabilities to meet specific application requirements.

The actuator's debugging process aligns perfectly with valve calibration standards, ensuring straightforward operation and setup. Equipped with an incremental encoder, it delivers exceptional stability and precision performance.

Important: Reset to zero position after each power-on cycle.

Standard Features

Protection Class: IP65
Operating Temperature: -20°C to 70°C (custom temperature ranges available)
24 VDC Voltage Range: 22VDC to 40VDC
Maximum Power: 100W
Return Difference: ≤1%
Dead Zone: 0.3%
Intrinsic Error: ≤0.2%
Maximum Stroke: 30mm, 60mm, or 100mm (standard options)
Thrust Capacity: 1000N, 2000N, 3000N, 5000N, 6500N, 10000N, 16000N, 20000N, 26000N
Control Signals: MODBUS RTU, 4-20mA, 20-4mA, 0-10V, 10-0V, switching quantity, IR remote control, local control

Note: IR remote control and MODBUS RTU control are not included in standard configuration.

Product Specifications

DC24V Wiring Configuration

Output Signal	485 MODBUS	Relay Feedback (N.C. Contact)	24VDC Power Supply
4-20mA+ 0-10V+ AOGND	B A	Fully Closed Fault Fully Open Remote Control	L1 L2
4-20mA+ 0-10V+ AIGND	Open+ Close+ COM	Ground Wire Input Signal Access	Relay Feedback (N.O. Contact)

Installation Guidelines

Secure the actuator to the valve assembly
Connect power cord according to wiring diagram specifications
Route signal lines following electrical wiring diagram on control board
Separate power supply and control signal wiring to prevent interference
Select appropriate valve type for your application
Perform stroke calibration using manual or automatic calibration methods after power-on
Configure control and feedback signals through menu settings

Frequently Asked Questions

Q: Are you a manufacturer or trading company?

A: We are a professional valve automation manufacturer with 29 years of experience, producing and selling directly from our factory.

Q: Is technical support available for installation?

A: Yes, our technical engineers provide comprehensive support including remote video guidance, installation assistance, and valve commissioning.

Q: What are your payment terms?

A: 30% T/T deposit, with 70% balance payment before delivery. We provide product and packaging photos before final payment.

Q: What delivery terms do you offer?

A: EXW, FOB, CFR, CIF, DAP, DDP - comprehensive international shipping options available.

Q: What is your typical delivery time?

A: Standard delivery is 2-5 days after receiving advance payment. Specific timing depends on product type and order quantity.

Q: Do you perform quality testing before delivery?

A: Yes, we conduct 100% testing on all products before shipment to ensure quality and performance.

Q: How do you maintain long-term business relationships?

A: We prioritize consistent quality and competitive pricing to ensure customer satisfaction. We value every client relationship and approach business with sincerity and partnership.
