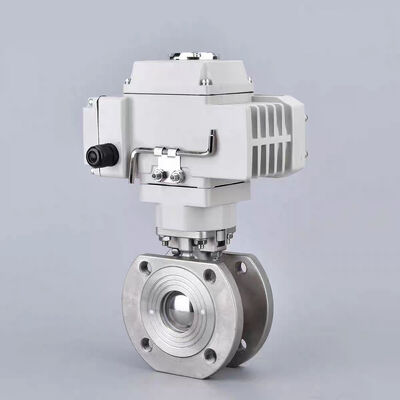

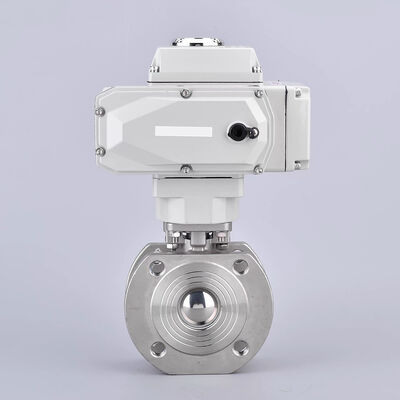

SONGO Electric italy type wafer ball valve WCB stainless steel 304 PN16 with Ptfe seal full bore motorized ball valve

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥600/pieces 1-29 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	30000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Nominal Diameter:

Dn15-DN125

Body Material:

SS304、SS316，WCB

Seal:

PTFE, PPL,METAL-SEALED

Temp:

PTFE≤180℃、PPL≤250℃

Power Supply:

DC24V, DC12V, AC24V,AC110V, AC220V, AC380V

Input/output Signals:

4-20mA, 1-5V, 0-10V

Manual Operation:

Handle

Nominal Pressure:

PN16, PN25

Suitable Medium:

Water, Nitric Acid, Acetic Acid, Viscous Fluids, Slurries, Strong Oxidizing Media, Etc

Actuation Range:

0-90°

Torque:

50-2000Nm

Operation Time:

15/30/60S

Packaging Details:

Carton / wooden box

Highlight:

motorized ball valve WCB stainless steel

electric wafer ball valve PN16

full bore motorized ball valve

Product Description

SONGO Electric Italy Type Wafer Ball Valve

WCB stainless steel 304 PN16 with PTFE seal full bore motorized ball valve

Product Benefits

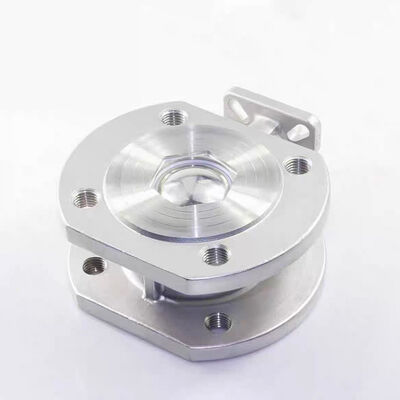

The electric Italy type wafer ball valve features an ultra-short flange distance design with compact structure, small size, and light weight. It utilizes flanged connection and O-type/V-type sealing structure, equipped with elastic valve seat and anti-static design. The valve can be quickly opened and closed by 90° using an electric actuator and supports switch type, 4-20mA, and 0-10Vdc regulation type control.

Material Specifications

Part	C Material	P Material	R Material
Bonnet	WCB	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Spacer	PTFE, para-polybenzene	PTFE, para-polybenzene	PTFE, para-polybenzene
Seat sealing	PTFE, nylon, para-polybenzene	PTFE, nylon, para-polybenzene	PTFE, nylon, para-polybenzene
Ball	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni9Ti
Seating sealing	PTFE, nylon, para-polybenzene	PTFE, nylon, para-polybenzene	PTFE, nylon, para-polybenzene
Body	WCB	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Bolt	35	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Stem	1cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Spacer	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Packing	PTFE	PTFE	PTFE
Bonnet bush	PTFE Composite bearing	PTFE Composite bearing	PTFE Composite bearing
Spring washer	WCB	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Spacer	35	1Cr18Ni9Ti	1Cr18Ni9Ti
Nut	35	1Cr18Ni9Ti	1Cr18Ni9Ti
Yoke	1Cr18Ni9Ti	1Cr18Ni9Ti	1Cr18Ni9Ti
Bolt	35	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
Coupling	35	1Cr18Ni9Ti	1Cr18Ni9Ti
Electric actuator	SONGO series	SONGO series	SONGO series

Key Features

Compact structure, small size, light weight, easy installation
Elastic sealing valve seat ensures reliable sealing and easy opening/closing
Working temperature: 29-180℃ (with PTFE sealing ring)
Multiple driving methods: manual, electric, or pneumatic
Power supply voltage: DC24V, DC12V, AC24V, AC110V, AC220V, AC380V
Control types: Switch type, Passive contact type, Valve position signal feedback type, Intelligent regulation type
Input/output signals: 4-20mA, 1-5V, 0-10V

Performance Testing

Test Type	Nominal Pressure 1.0 MPa	Nominal Pressure 1.6 MPa	Nominal Pressure 2.5 MPa
Shell strength test	1.5 MPa	2.4 MPa	3.75 MPa
Seal test (Fluid)	1.1 MPa	1.76 MPa	2.75 MPa
Seal test (Gas)	0.5-0.8 MPa
Suitable medium	Water, steam, gas, dust, oil, nitric acid, acetic acid, alkali
Suitable temperature	≤200℃

Dimension Drawing

Technical Specifications

Nominal Diameter DN (mm)	Overall Dimensions	Connection Dimensions	Actuator Model
15	d:15, L:32, L1:178, L2:121, H:177	D:95, D1:65, D2:46, B:14, f:2, N-Md:4-M12	SONGO-05
20	d:20, L:38.5, L1:178, L2:121, H:182	D:105, D1:75, D2:56, B:14, f:2, N-Md:4-M12	SONGO-05
25	d:25, L:45, L1:178, L2:121, H:187	D:115, D1:85, D2:65, B:16, f:2, N-Md:4-M12	SONGO-05
32	d:29, L:55, L1:210, L2:131, H:223	D:140, D1:100, D2:76, B:16, f:3, N-Md:4-M16	SONGO-05
40	d:38, L:62, L1:210, L2:131, H:231	D:150, D1:110, D2:84, B:18, f:3, N-Md:4-M16	SONGO-16
50	d:46, L:72, L1:210, L2:131, H:258	D:165, D1:125, D2:99, B:20, f:3, N-Md:4-M16	SONGO-16
65	d:62, L:95, L1:210, L2:131, H:273	D:185, D1:145, D2:118, B:22, f:3, N-Md:4-M16	SONGO-16
80	d:76, L:120, L1:309, L2:160, H:303	D:200, D1:160, D2:132, B:24, f:3, N-Md:8-M16	SONGO-30
100	d:92, L:145, L1:309, L2:160, H:333	D:220, D1:180, D2:156, B:24, f:3, N-Md:8-M16	SONGO-60
125	d:110, L:200, L1:309, L2:177, H:380	D:250, D1:210, D2:184, B:26, f:3, N-Md:8-M16	SONGO-125

Customer Feedback

Technical Support

Frequently Asked Questions

Q1: Are you a manufacturer or a trade company?

A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.

Q2: Is there a technical engineer's guide for installation before or after sale?

A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.

Q3: What is your terms of payment?

A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4: What is your terms of delivery?

A4: EXW, FOB, CFR, CIF, DAP, DDP.

Q5: How about your delivery time?

A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6: Do you test all your goods before delivery?

A6: Yes, we have 100% test before delivery.

Q7: How do you make our business long-term and good relationship?

A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
