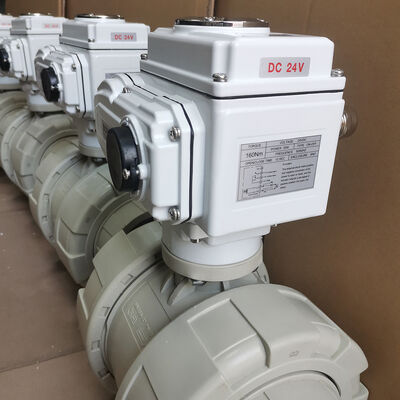

SONGO Motorized pph ball valve socket type thread type 2 way full bore 24VDC 24VAC Electric Ball Valve for Acid Chemical Resistant

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥600/pieces 1-29 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	30000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Valve Body:

PPH

SIZE:

DN15-DN100

Connection Method:

Female Socket , Flange

Pressure Rating:

10bar

Structural Form:

2way/3way

Valve Seat Seal:

PTFE

Valve Stem Material:

Stainless Steel 410, 304

Applicable Media:

Water, Liquid, Gas, Oil, Acid And Alkali Corrosive Media.

Electric Actuator:

Switch Type, Regulating Type，explosion-proof Series

Operated:

Electric Actuated Control/Manual/ Pneumatic

Voltage:

24VAC , 110VAC , 220VAC , 380VAC , 12VDC , 24VDC

Packaging Details:

Carton / wooden box

Highlight:

24VDC electric ball valve

acid resistant motorized ball valve

full bore socket thread valve

Product Description

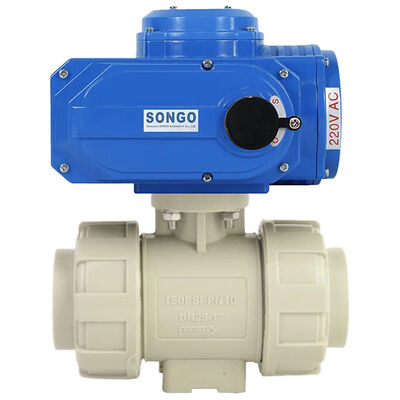

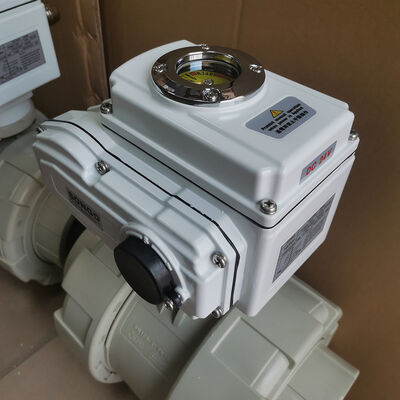

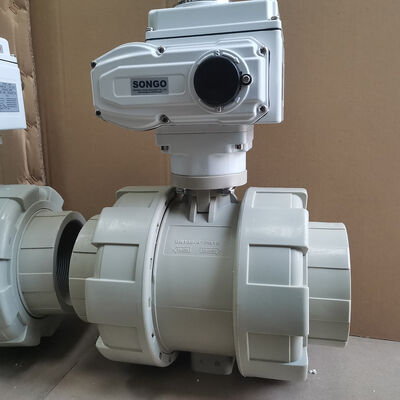

SONGO Motorized PPH Ball Valve - Socket Type Thread Type 2 Way Full Bore

24VDC/24VAC Electric Ball Valve for Acid Chemical Resistant Applications

Benefits of Motorized PPH Ball Valve

The electric PPH ball valve is a miniature electric valve precisely molded from polypropylene (PPH) material. Its core components include the motor drive module, the ball valve core, and the PPH valve body. Unlike traditional metal valves, the PPH material exhibits excellent chemical corrosion resistance (applicable pH range: 1-14), lightweight (density: 0.91g/cm³), and low friction coefficient. This directly enhances the lifespan of the ball valve in acidic and alkaline medium environments.

Temperature Comparison Table for Different Materials

Valve Material	Medium Temperature
UPVC	-10℃ ~ +70℃
FRPP	-20℃ ~ +90℃
PPH	-20℃ ~ +95℃
CPVC	-40℃ ~ +95℃
PVDF	-40℃ ~ +140℃

Technical Parameters of Valve Actuator

ON/OFF Type	Light Indicator Signal Feedback, Passive Contact Signal Feedback, Resistance Potentiometer Signal Feedback
Regulation Type	Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Field Operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus
Voltage Optional	AC110V/220V/380V 50/60HZ: DC12V/24V, Special Voltage Can be Customized
Protection Class	IP65, Explosion Proof Construction Are Available: IP68(EX ll BT4)

Part Material Specifications

Connect Type	Socket / Female thread / Flange
Working Pressure	PN10 / PN16 / 235PSI
Brand	SONGO
Size	DN15-DN100 , 1/2" To 4"
O-ring	EPDM, FPM
Stem	Stainless steel
Seal Carrier	PVDF, UPVC, PPH, PVDF, CPVC
Ball	PVDF, UPVC, PPH, PVDF, CPVC
Ball Seat	PTFE
End Connector	PVDF, UPVC, PPH, PVDF, CPVC
Union Nut	PVDF, UPVC, PPH, PVDF, CPVC
Body	PVDF, UPVC, PPH, PVDF, CPVC
Operated	Electric actuated control/Manual/ pneumatic
Voltage	24VAC, 110VAC, 220VAC, 380VAC, 12VDC, 24VDC
Actuator type	On-off type, regulation type, RS485, 4-20ma

Structure Dimension Drawing

PPH Pipe Standards

Normal Size	BS	ANSI	JIS	DIN
1/2"	21.2	21.34	22.00	20
3/4"	26.6	26.67	26.00	25
1"	33.4	33.40	32.00	32
1-1/4"	42.1	42.16	38.00	40
1-1/2"	48.1	48.26	48.00	50
2"	60.2	60.28	60.00	63
2-1/2"	75.2	73.03	76.00	75
3"	88.7	88.90	89.00	90
4"	114.1	114.3	114	110

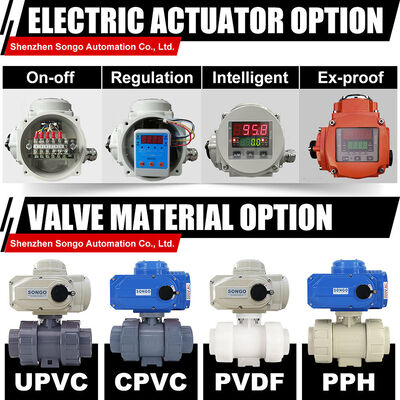

Different Material Connection End Types

Motorized Actuator Wiring Diagram

Ball Valves Connection Options

Frequently Asked Questions

Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?

A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.

Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?

A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.

Q3: WHAT IS YOUR TERMS OF PAYMENT?

A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4: WHAT IS YOUR TERMS OF DELIVERY?

A4: EXW, FOB, CFR, CIF, DAP, DDP.

Q5: HOW ABOUT YOUR DELIVERY TIME?

A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

A6: Yes, we have 100% test before delivery.

Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
