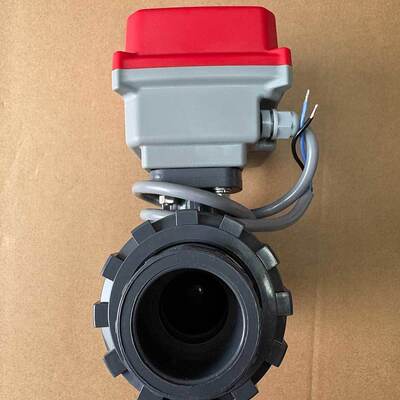

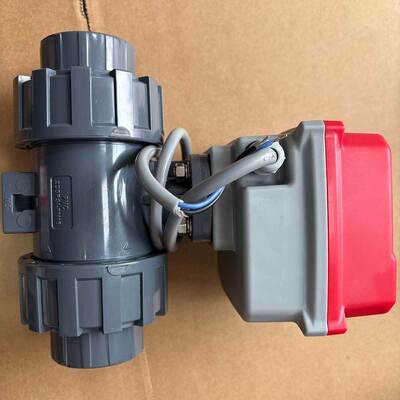

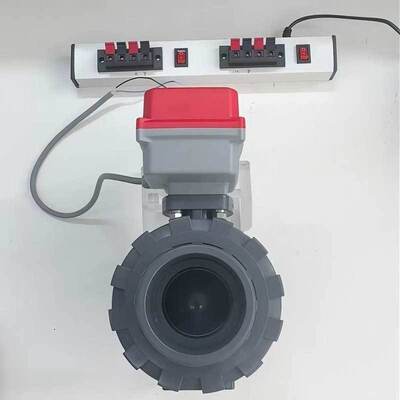

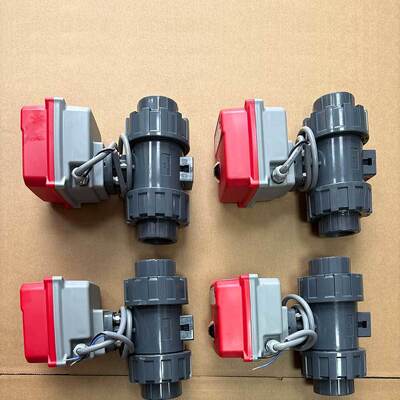

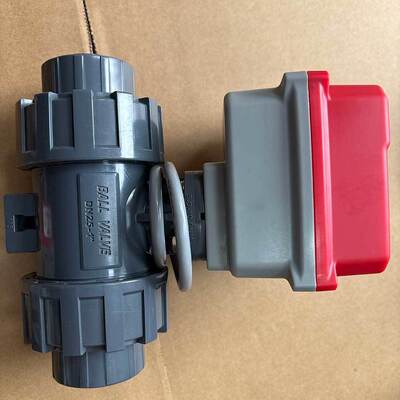

SONGO UPVC electric reset ball valve thread socket type 220VAC 24VDC with manual operation Pn10 IP67 Plastic actuator normal close

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥300/pieces 1-29 pieces
Payment Terms:	L/C,T/T,D/P,D/A
Supply Ability:	30000 Piece/Pieces per Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Certification:

CE & ISO

Body Material:

UPVC

Pressure Rating:

PN10

Valve Size:

DN15-DN50

Connection:

NPT/BSP Thread, Socket Type

Power:

45W

Switch Time:

3 Second

Level Of Protection:

IP67

Temp:

0-50°C

Torque Range:

20Nm

Drive:

Electric And Manual Type

Wiring:

Two Wire Or Three Wires

Packaging Details:

Carton / wooden box

Highlight:

UPVC electric reset ball valve

thread socket type motorized actuator valve

24VDC plastic actuator normal close

Product Description

SONGO UPVC Electric Reset Ball Valve

Thread socket type with 220VAC/24VDC operation, manual override capability, Pn10 pressure rating, IP67 protection, plastic actuator, normally closed configuration

Electric Reset Ball Valve Benefits

The electric reset ball valve is an automated control device that combines an electric actuator with the ball valve body. Its core function is to achieve valve opening and closing control through electric drive, and it also has the functions of power-off reset or signal reset. When the system loses power or receives a specific signal, the valve can automatically return to the preset position (such as fully open or fully closed), ensuring the safety and continuity of the process. These valves are widely used in scenarios that require remote control, automatic regulation, or emergency protection, such as water supply systems, chemical pipelines, HVAC systems, etc.

Technical Specifications

Features: 3-second switch operation, manual override function, automatic reset upon power loss
Torque: 20N.m
Voltage: AC220V, DC12V/24V
Size Range: DN15-DN50
Actuator Type: ON/OFF IP67 Type, Two-wire reset with signal feedback
Actuator Material: Plastic
Connection: NPT/BSP Thread, socket type
Compatible Media: Water, Gas, Oil, Chemical Media (including acid and alkali solutions)
Power Consumption: 45W (during switching process)
Operating Temperature: 0-50°C
Working Pressure: 0-0.08Mpa

Structure Dimension Drawing

Size	G	D	A	C	F	B	E
1/2"	20mm	14mm	122mm	51mm	151mm	92mm	85mm
3/4"	25mm	20mm	135mm	63mm	163mm	92mm	85mm
1"	32mm	25mm	151mm	70mm	176mm	92mm	85mm
1 1/4"	40mm	30mm	166mm	83mm	190mm	92mm	85mm
1 1/2"	50mm	38mm	180mm	100mm	204mm	92mm	85mm
2"	63mm	50mm	207mm	123mm	233mm	92mm	85mm

Motorized Actuator Wiring Diagram

Note: For a continuous power-on period of more than 10 seconds, the device will automatically reset upon power-off (normally close/normally open)
