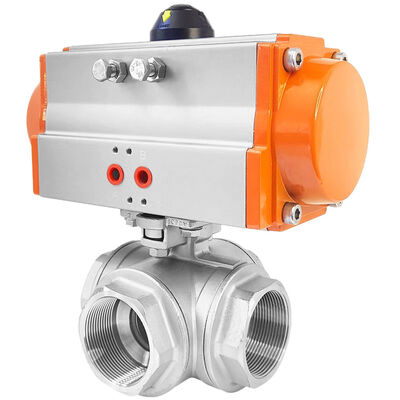

Features Of SS304 4 Way Thread Pneumatic Ball Valve:
01) Minimal Fluid Resistance: Full-bore ball valves exhibit negligible flow resistance.
02) Compact and Lightweight Design: Simple structure with reduced dimensions and weight.
03)Superior Sealing Reliability: Featuring four sealing surfaces constructed with advanced polymeric materials to ensure leak-tight performance and complete sealing integrity.
04)Operational Efficiency: 90-degree rotational actuation enables swift flow direction switching, with optional electric or pneumatic actuators for remote control capability.
05) Maintenance Convenience: Simplified valve architecture incorporates modular seal assemblies for effortless disassembly and replacement.
Design Features Of SONGO Pneumatic Actuator:
Part Material Of Pneumatic Actuated 4way thread SS304 Pneumatic Ball Valve:
| Connect Type | Thread/flange |
| Working Pressure | PN1.0/1.6/2.5MPa |
| Brand | SONGO |
| Size | DN08-DN50 |
| Temperature | -20℃~+177℃ |
| Medium | Fresh water,sewage, sea water, air, steam, food, medicine, oils, acids, etc. |
| Body |
CF8, CF8M, stainless steel,Carbon steel |
| Ball | SS304, SS316 |
| Stem | SS304, SS316 |
| Seat | PTFE,PPL |
| Operated | Pneumatic Actuated |
| Actuator parts | Solenoid Valve , Limit Switch , Positioner , FRL |
| Actuator type | Double Action , Single Action (Spring Return) |
Structure Dimension Drawing Of Pneumatic Operated SS304 thread 4 way Pneumatic Ball Valve:
| Nominal diameter | RC | A | B | C | D | E | F | G | H | K1 | K2 | L1 | L2 | Pneumatic Actuator No. |
| DN08 | 1/4" | 72 | 12 | 22 | 36 | 36 | 36 | 42 | 9 | 3 | 3 | 150 | 72.5 | AT-52 |
| DN10 | 3/8" | 72 | 12 | 22 | 36 | 36 | 36 | 42 | 9 | 3 | 3 | 150 | 72.5 | AT-52 |
| DN15 | 1/2" | 72 | 12 | 25 | 36 | 37 | 36 | 42 | 9 | 3 | 3 | 150 | 72.5 | AT-52 |
| DN20 | 3/4" | 80 | 15 | 31 | 40 | 39 | 36 | 42 | 9 | 3 | 3 | 150 | 72.5 | AT-52 |
| DN25 | 1" | 88 | 18 | 38 | 44 | 46 | 42 | 50 | 11 | 3.5 | 3 | 171 | 83 | AT-63 |
| DN32 | 1 1/4" | 108 | 25 | 48 | 54 | 55 | 42 | 50 | 11 | 3.5 | 3 | 186 | 95.5 | AT-75 |
| DN40 | 1 1/2" | 128 | 32 | 55 | 64 | 68 | 50 | 70 | 14 | 4.5 | 3.5 | 206 | 103.5 | AT-83 |
| DN50 | 2" | 142 | 38 | 67 | 71 | 72 | 50 | 70 | 14 | 4.5 | 3.5 | 206 | 103.5 | AT-83 |
Ball Valve Standard:
| Ball Valve Standard | ||||
| GB Standard | ASME Standard | JIS Standard | DIN Standard | |
| Design Standard | GB/T12237 | API608 | JIS BS5351 | DIN 3357 |
| Inspection Standard | GB/T13927 | API598 | JIS B2003 | EN 12266 |
| Face-to-Face Standard | GB/T12221 | ASME B16.10 | JIS B2002 | DIN 3202-F4 |
| Flange Standard | HG/T 20592, GB/T9113,EN 1092-1, JB/T79.1 |
ASME B16.5 | JIS B2220 | EN 1092-1 |
| Pressure-Temperature Standard |
GB/T 26640 | ASME B16.34 | ASME B16.34 | ASME B16.34 |
| Fire Safe Standard | API607/API 6FA | API607/API 6FA | API607/API 6FA | API607/API 6FA |

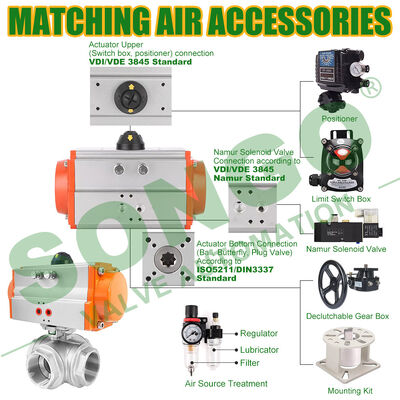

Matching Air Accessories Selection For Pneumatic Ball Valve:
Pneumatic Actuator Accessories Options :
| Pneumatic Actuator Accessories Options | ||
| Pneumatic Actuator Pisition | Applicable Connection Standard |
Pneumatic Actuator Accessories |
| Actuator Upper | VDI/VDE 3845 | ● Limit Switch Box ● Proximity Switch ● P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) ● E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) |
| Actuator Back | VDI/VDE 3845 | Non Explosion-proof Type ExmbIICT4 / EX d IIB T6 / EX d IIC T6 / EX ia IIC T6 Explosion-proof Type ● 3/2 Way Namur Solenoid Valve ( For Spring Return Actuator ) ● 5/2 Way Namur Solenoid Valve ( For Double Acting Actuator ) Air Filter Regulator |
| Actuator Bottom | ISO5211/DIN3337 | ● Declutchable Gear Box ● Ball Valve , Butterfly Valve , Plug Valve |
Single Acting & Double Acting Difference Of Pneumatic Actuator:
| Principle Of Single Acting Pneumatic Actuator (Spring Return) | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B. Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B. Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
| Principle Of Double Acting Pneumatic Actuator | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B. Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A. |
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
|

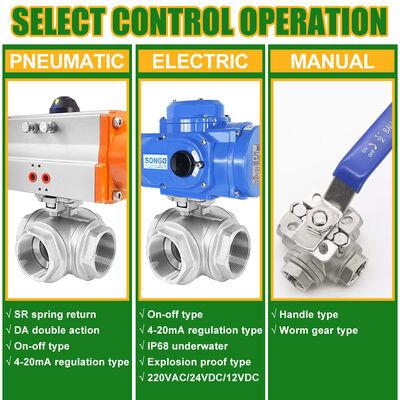

Operating Type Selection Of Ball Valve:
Connect End Selection Of Pneumatic Ball Valve:

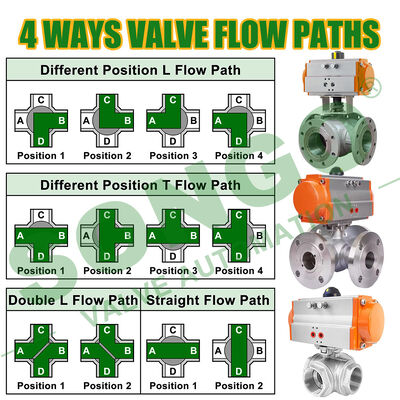

Flow Path Selection Of Pneumatic 4 Ways Ball Valve:
