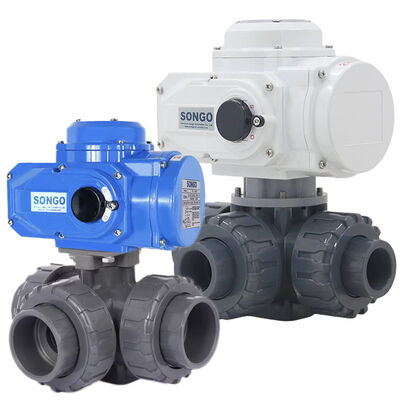

Benefits Of PVC 3Way Motorized Ball Valves:
The Motorized three-way PVC ball valve is engineered for reliable flow control in corrosive environments. Featuring PVC electric actuated 3-way ball valve design, it provides excellent chemical resistance while enabling precise flow diversion (T-port or L-port configurations). Ideal for chemical processing, water treatment, and industrial automation systems.
Hygienic 3Way PVC Electric Ball Valve:
● The electric ball valve body is made of UPVC, CPVC or PP, PPH, PVDF materials, which have better corrosion resistance than metals, lower cost, and are suitable for corrosive media such as acids, alkalis, salt solutions, and organic solvents.
● PTFE seats ensure bubble-tight shut-off (leak-proof electric ball valve).
● Motorized three-way PVC valve with 12V/24V DC,24V/110V/220V AC actuators (ON/OFF or modulating control).
● Connection: BSP/NPT Thread,Socket Union,DIN/ANSI/JIS Flange
● 3 way type:T-port flow,and L-port flow are available.
● Available in IP67 Waterproof, or explosion-proof(IP68) actuators.
Technical Parameters of Valve Actuator:
| ON/OFF Type | Light Indicator Signal Feedback, Passive Contact Signal Feedback,Resistance Potentiometer Signal Feedback |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110V/220V/380V 50/60HZ: DC12V/24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: IP68(EX ll BT4) |
Part Material:
| Connect Type | Socket / Female thread |
| Working Pressure | PN10/PN16 |
| Brand | SONGO |
| Size | DN15-DN100 |
| O-ring | EPDM, FPM |
| Stem | Stainless steel |
| Seal Carrier | PVDF, UPVC, PPH |
| Ball | PVDF, UPVC, PPH |
| Ball Seat | PTFE |
| End Connector | PVDF, UPVC, PPH |
| Union Nut | PVDF, UPVC, PPH |
| Body | PVDF, UPVC, PPH |
| Operated | Electric actuated |
| Voltage | AC110V, 220V, 380V, DC12V, 24V |
| Actuator type | On-off type, regulation type |
Structure Dimension Drawing:
| Size | D | d | E | h | L | L3 | H | H1 | H2 | K | T | F | C | M | L1 | L2 | Electric Actuator No. |
| 1/2" | 54 | 14 | 30 | 22 | 137 | 81 | 53 | 26 | 18 | M5 | 11 x 11 | 9 | 5.5 | ISO522 F03 | 178 | 121 | SONGO-05 |
| 3/4" | 69 | 22 | 38.5 | 24.5 | 172 | 109 | 65 | 26 | 18 | M5 | 11 x 11 | 9 | 5.5 | ISO522 F03 | 178 | 121 | SONGO-05 |
| 1" | 82 | 25 | 46 | 28 | 200 | 130 | 68 | 36 | 24 | M5 | 11 x 11 | 9 | 5.5 | ISO522 F03 | 178 | 121 | SONGO-05 |
| 1-1/4" | 82 | 25 | 46 | 32 | 208 | 130 | 68 | 36 | 24 | M5 | 11 x 11 | 14 | 5.5 | ISO522 F03 | 178 | 121 | SONGO-05 |
| 1-1/2" | 118 | 38 | 65 | 35 | 240 | 154 | 92 | 50 | 30 | M6 | 14 x 14 | 14 | 8.5 | ISO522 F05 | 178 | 121 | SONGO-05 |
| 2" | 117 | 38 | 65 | 38 | 246 | 154 | 92 | 50 | 30 | M6 | 14 x 14 | 14 | 8.5 | ISO522 F05 | 178 | 121 | SONGO-05 |
Pipe Standard Of PVC Pipe:
| PIPE STANDARD OF PVC PIPE | ||||
| Normal size | BS | ANSI | JIS | DIN |
| 1/2'' | 21.2 | 21.34 | 22.00 | 20 |
| 3/4'' | 26.6 | 26.67 | 26.00 | 25 |
| 1'' | 33.4 | 33.40 | 32.00 | 32 |
| 1-1/4'' | 42.1 | 42.16 | 38.00 | 40 |
| 1-1/2'' | 48.1 | 48.26 | 48.00 | 50 |
| 2'' | 60.2 | 60.28 | 60.00 | 63 |
| 2-1/2'' | 75.2 | 73.03 | 76.00 | 75 |
| 3'' | 88.7 | 88.90 | 89.00 | 90 |
| 4'' | 114.1 | 114.3 | 114 | 110 |
| 5'' | 140 | 141.3 | 140 | 140 |
| 6'' | 160 | 168.3 | 165 | 160 |
| 8'' | 225 | 219.1 | 216 | 200 |
| 10'' | 200 | 273.1 | 267 | 250 |
| 12'' | 315 | 223.9 | 318 | 300 |

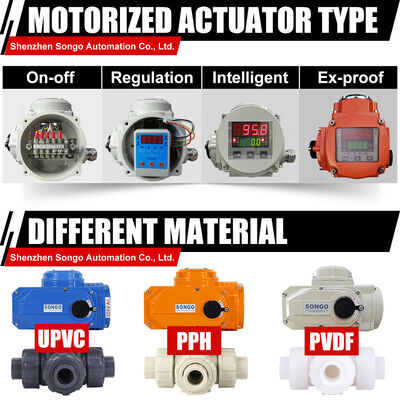

SONGO Motorized Actuator Type:
| SONGO Motorized Actuator Type | |||
|
|||
| On-off Type | Regulation Type | Intelligent Type | Ex-proof Type |
ISO5211 Mounting Valves:
| ISO5211 Mounting Valves | ||||
|
||||
| Metal Wafer Butterfly Valve | Metal Thread Ball Valve | True Union Ball Valve | Metal Flange Ball Valve | PVC Butterfly Valve |
Specification Of Motorized Actuator:
| Model | SONGO-05 | SONGO-10 | SONGO-16 | SONGO-30 | SONGO-60 | SONGO-125 | SONGO-250 | SONGO-400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Voltage Options | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V | |||||||
| Input Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Output Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Mounting Standard | ISO5211 direct mounting | |||||||
| Protection Class | IP67,Explosion Proof Construction Are Available: EX ll BT4(IP68) | |||||||
| Electrial Connection | G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃~+60℃ | |||||||
| Control Circuit | A: ON-OFF Type with Light Indicator Signal Feedback | |||||||
| B: ON-OFF Type with Passive Contact Signal Feedback | ||||||||
| C: ON-OFF Type with Resistance Potentiometer Signal Feedback | ||||||||
| D: ON-OFF Type with Resistance Potentiometer and Neutral Position Signal Feedback | ||||||||
| E: Regulation Type with Servo Control Module | ||||||||
| F: DC24V/ DC12V Direct On-off Type | ||||||||
| G: AC380V Three-Phase Power Supply with Passive Signal Feedback | ||||||||
| H: AC380V Three-Phase Power Supply with Resistance Potentiometer Signal Feedback | ||||||||
Motorized Actuator Wiring Diagram:

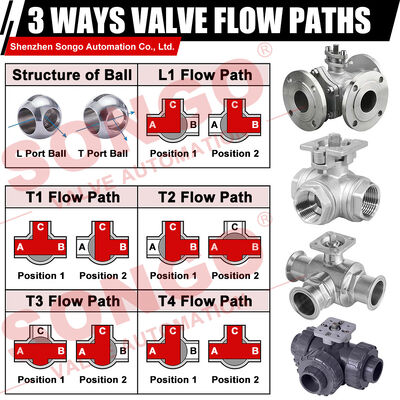

3 Ways Ball Valve Flow Paths:
Ball Valves Different Connect Options:
SONGO──Your No.1 Automation Valve Specialist:
No Worries After Buy Our Valves:
Why Not Choose Our Factory:
How To Customize For You:
