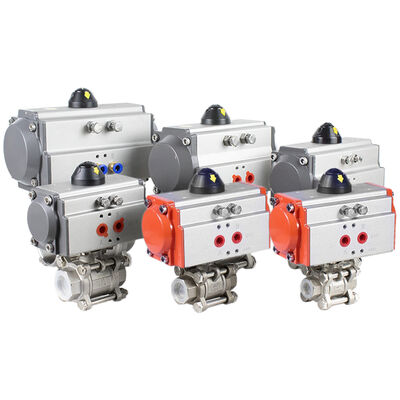

PPL Seal Pneumatic Actuator Ball Valve SS304 Female Thread 2 Way 3 Piece For Steam 200degree

SS304 female thread pneumatic ball valve series are our SONGO AT serie piston pneumatic actuators driven by compressed gas. The piston cylinder rotate 90 degrees to drive the valve to open and close. Double piston symmetrical structure enables fast and steady action, high precision, high output
torque as well as reverse rotation by simply changing the installation position of the piston. The actuator of SS304 female Thread Pneumatic Ball Valve with Air-to-open and Spring- to- close, or Air- to- close and Spring- to- open, or double action. The accessories of actuator which function you need, like limit switch, solenoid valve and positioner. The main features of SS304 female thread pneumatic ball valves are their compact structure, ease of operation and maintenance. They are suitable for general working media such as water, solvents, acids and natural gas, and are also applicable to media with harsh working conditions, such as oxygen, hydrogen peroxide, methane and ethylene.

01) Actuator Body : Corrosion protected aluminium extruded body.
02) Movement Option : 2 Position 90° Turn , 2 Position 120° Turn , 2 Position 180° Turn , 3 Position 90° Turn , 3 Position 180° Turn.
03) Indicator : It is standard on all actuators.
04) Caps : Aluminium extruded caps provide maximum resistance against corrosion, caps are suitable for single and double acting actuators.
05) Stroke Adjustment : Permit adjustment of ± 5% in both directions.
06) Springs : Cartridge design and corrosion resistant springs.
07) Piston Bearing O-rings : Long lasting
08) Nuts and Bolts : Stainless steel and high resistance for corrosion.
09) Actuator Pistons : Aluminium injections. High quality o-rings and against corrosion.
10) Connections : Limit Switch Box , Proximity Switch , P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) , E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) , 3/2 Way Namur Solenoid Valve , 5/2 Way  Namur Solenoid Valve , Air Filter Regulator , Declutchable Gear Box , Ball Valve , Butterfly Valve , Plug Valve
11) Cycle Life : 1,000,000 Operations

Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.

Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.

Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.

Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.

Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.

● Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?

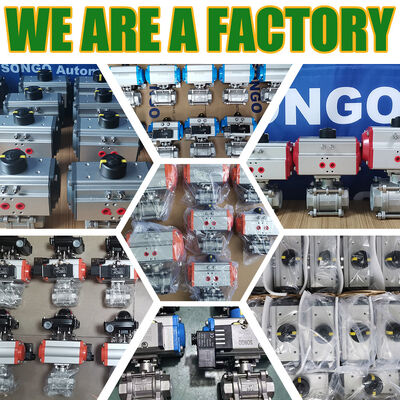

A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.

● Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?

A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.

● Q3: WHAT IS YOUR TERMS OF PAYMENT?

A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

● Q4: WHAT IS YOUR TERMS OF DELIVERY?

A4: EXW, FOB, CFR, CIF, DAP, DDP.

● Q5: HOW ABOUT YOUR DELIVERY TIME?

A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

● Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

A6: Yes, we have 100% test before delivery.

● Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
