| Brand Name: | SONGO |
| MOQ: | 1 Pieces |
| Price: | CN¥626.31/Pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 5000-10,000Pieces/Month |

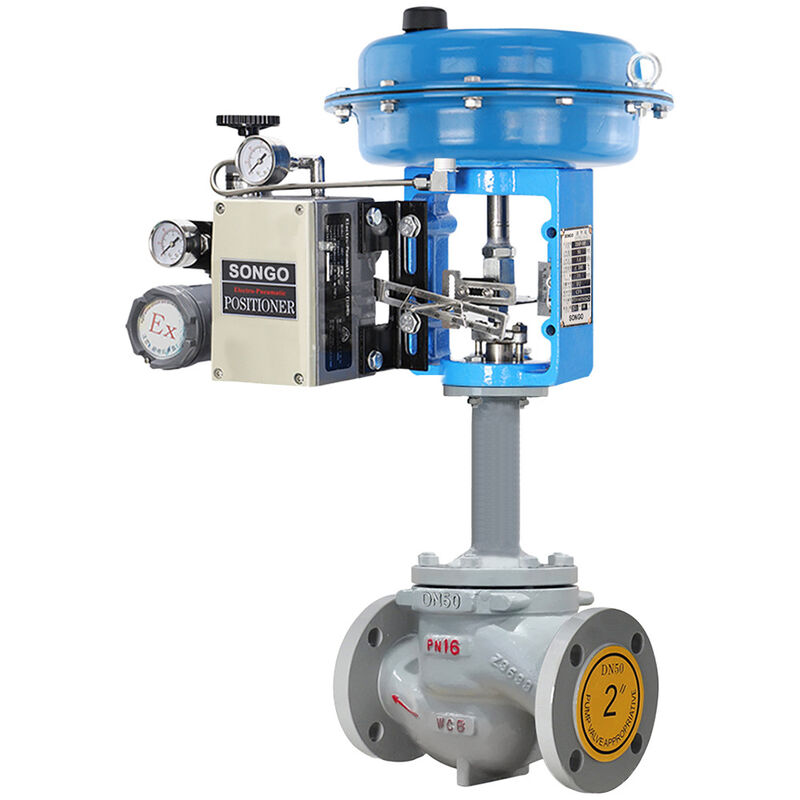

Overview of Pneumatic Diaphragm WCB Control Valve Bellows Seal Type:
The Features Of Pneumatic Diaphragm Carbon Steel Bellows Seal Modulating Valve:
Main Components Material Of Casting Steel Pneumatic Bellows Seal Control Valve:
![]()
| Structure Diagram And Main Components Material | |
| Component Name | Material |
| Valve Body / Bonnet | WCB / WCC / WC6 / CF8 / CF8M / CF3M |
| Valve Spool / Seat | 304 / 316 / 316L (Overlaying Stellite Alloy) |
| Packing | Normal:-196~230°C is PTFE , Special:>230°C is Flexible Graphite |
| Gasket | Stainless Steel With Flexible Graphite |
| Valve Stem | 2Cr13 / 17-4PH / 304 / 316 / 316L |
| Diaphragm | NBR With Reinforced Polyester Fabric |
| Spring | Normal:60Si2Mn , Special:50CrVA |
| Diaphragm Cover | Normal:Q235 , Special:304 |
Main Features ( Accord With GB/T 4213-2008 Standard) Of Pneumatic Control Valve:
| Main Features ( Accord With GB/T 4213-2008 Standard) | |||||
| No. | Item | Without Positioner | Positioner | ||
| Standard Type | Heat Dissipation / Cryogenic Type | ||||
| 1 | Intrinsic Error<(%) | ±8.0 | ±1.5 | ±2.5 | |
| 2 | Hysteresis Error<(%) | - | 1.5 | 2.5 | |
| 3 | Dead Band<(%) | 6 | 0.6 | 1 | |
| 4 | Initial Point Deviation | Air to Open | ±4.0 | ±2.5 | ±2.5 |
| Air to Close | - | ±2.5 | ±2.5 | ||
| 5 | End Point Deviation | Air to Open | - | ±2.5 | ±2.5 |
| Air to Close | ±4.0 | ±2.5 | ±2.5 | ||
| 6 | Rated Stroke Deviation<(%) | +4.0 | +2.5 | 2.5 | |
| 7 | Permitted Leakage Volume | Hard Seal | Level IV | ||
| Soft Seal | Level VI | ||||
Main Technical Data Of Pneumatic Bellows Seal Cast Steel Control Valve:
| Main Technical Data | ||||||||||||||||||
| Nominal Diameter (Inch) | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" | 8" | |||||||
| Nominal Diameter (mm) | 3/4" 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |||||||
| Seat Diameter DN(mm) | 5 | 7 | 8 | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
| Rated flow coefficient Kv(m³/h) |
Linearity | 0.2 | 0.5 | 0.8 | 1.8 | 2.8 | 4.4 | 6.9 | 11 | 17 | 27 | 44 | 69 | 110 | 176 | 275 | 440 | 690 |
| Equal Percentage | - | - | - | 1.6 | 2.5 | 4 | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | |
| Rated Stroke L (mm) | 10 | 16 | 25 | 40 | 60 | |||||||||||||
| Actuator Model (Direct Acting) | SGMA-1 | SGMA-2 | SGMA-3 | SGMA-4 | ||||||||||||||
| Actuator Model (Reverse Acting) | SGMB-1 | SGMB-2 | SGMB-3 | SGMB-4 | ||||||||||||||
| Working Temperature (°C) | Standard Type | -20°C~230°C | ||||||||||||||||
| Heat Dissipation Type | 230°C~350°C(Cast Steel) / 230°C~450°C(Stainless Steel) | |||||||||||||||||
| High Temp Type | 450°C~595°C | |||||||||||||||||
| Cryogenic Type | -60°C~-100°C / -100°C~-196°C | |||||||||||||||||
| Cut-off Type | -20°C~150°C(PTFE Seal) / -20°C~230°C(PPL Seal) | |||||||||||||||||
| Bellows Type | -20°C~350°C / -20°C~150°C(PTFE Seal) / -20°C~230°C(PPL Seal) / -60°C~-100°C / -100°C~-196°C | |||||||||||||||||
| Nominal Pressure PN | Bar | 16/25/40/63/100 | ||||||||||||||||
| LB | ANSI: CL150LB / 300LB /600LB | |||||||||||||||||
External Dimension Of WCB Pneumatic Bellows Seal Globe Control Valve:
Standard Type / Heat Dissipation Type / Bellows Seal Type
![]()
| External Dimension And Weight Of Standard Type / Heat Dissipation Type / Bellows Seal Type Unit: mm |
|||||||||||||
| Nominal Diameter (Inch) | G3/4" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" | 8" | |
| Nominal Diameter (mm) | G3/4" | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
| L(Series One) | ANSI150 | 120 | 180 | 185 | 200 | 222 | 280 | 286 | 298 | 345 | 410 | 465 | 555 |
| ANSI300 | 120 | 194 | 197 | 213 | 235 | 267 | 292 | 317 | 368 | 425 | 473 | 610 | |
| ANSI600 | 120 | 206 | 210 | 225 | 251 | 286 | 311 | 337 | 394 | 440 | 508 | 650 | |
| L(Series Two) | PN16~40 | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 |
| PN63~100 | 130 | 230 | 230 | 260 | 260 | 300 | 340 | 380 | 430 | 500 | 550 | 650 | |
| D2 | 280 | 310 | 400 | 500 | |||||||||
| H1 | PN16~40 | 126 | 126 | 126 | 134 | 157 | 167 | 199 | 214 | 230 | 263 | 293 | 358 |
| PN63~100 | 138 | 138 | 138 | 142 | 165 | 187 | 204 | 219 | 240 | 280 | 300 | 364 | |
| H2 | 270 | 285 | 322 | 450 | |||||||||
| H3/H4 | PN16~40 | 286 | 286 | 286 | 302 | 325 | 335 | 437 | 452 | 467 | 524 | 554 | 620 |
| PN63~100 | 298 | 298 | 298 | 310 | 333 | 345 | 442 | 457 | 478 | 541 | 561 | 625 | |
| H5 | PN16~40 | 43 | 43 | 48 | 57 | 66 | 80 | 92 | 100 | 120 | 134 | 156 | 200 |
| PN63~100 | 50 | 50 | 54 | 60 | 70 | 84 | 97 | 105 | 125 | 138 | 163 | 205 | |
| D1 | 220 | 265 | 315 | ||||||||||
| H6 | 180 | 240 | 305 | ||||||||||
| Weight(kg) | PN16~40 | 18 | 20 | 22 | 24 | 32 | 38 | 62 | 67 | 83 | 132 | 160 | 245 |
| PN63 | 23 | 24 | 25 | 30 | 42 | 52 | 78 | 82 | 102 | 170 | 190 | 285 | |
| Note: 1.The unit of nominal pressure(PN) in the table above is bar. 2.The weight in the table above is standard data without accessory, flange end to end distance L is made as default series one. 3.Flange is made according to JB/T79, can also be customized, such as GB/T9113,HG/T20592,ANSI,JIS,DIN and so on. |
|||||||||||||
External Dimension Of SS304 Pneumatic Diaphragm Flange Regulating Valve:
Cryogenic Type
![]()
| External Dimension And Weight Of Cryogenic Type Unit: mm |
|||||||||||||
| Nominal Diameter (Inch) | G3/4" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 5" | 6" | 8" | |
| Nominal Diameter (mm) | G3/4" | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
| L(Series One) | ANSI150 | 120 | 180 | 185 | 200 | 222 | 280 | 286 | 298 | 345 | 410 | 465 | 555 |
| ANSI300 | 120 | 194 | 197 | 213 | 235 | 267 | 292 | 317 | 368 | 425 | 473 | 610 | |
| ANSI600 | 120 | 206 | 210 | 225 | 251 | 286 | 311 | 337 | 394 | 440 | 508 | 650 | |
| L(Series Two) | PN16 | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 |
| PN63 | 130 | 230 | 230 | 260 | 260 | 300 | 340 | 380 | 430 | 500 | 550 | 650 | |
| D4 | 280 | 310 | 400 | 500 | |||||||||
| H1 | 500/700/900 | 600/800/1000 | 700/900/1100 | ||||||||||
| H2 | 270 | 285 | 320 | 450 | |||||||||
| H3 | 45 | 45 | 45 | 45 | 45 | 45 | 60 | 60 | 60 | 60 | 75 | 90 | |
| H5 | PN16~40 | 43 | 43 | 48 | 57 | 66 | 80 | 92 | 100 | 120 | 134 | 156 | 200 |
| PN63~100 | 50 | 50 | 54 | 60 | 70 | 84 | 97 | 105 | 125 | 138 | 163 | 205 | |
| D1 | PN16~40 | 160 | 260 | 260 | 285 | 305 | 340 | 370 | 405 | 460 | 525 | 590 | 700 |
| PN63~100 | 305 | 305 | 305 | 340 | 370 | 405 | 460 | 525 | 590 | 700 | 700 | 805 | |
| D2 | PN16~40 | 190 | 290 | 290 | 315 | 335 | 370 | 400 | 435 | 490 | 555 | 630 | 740 |
| PN63~100 | 335 | 335 | 335 | 370 | 400 | 435 | 490 | 555 | 630 | 740 | 740 | 845 | |
| h | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 10 | 10 | 10 | |
| n-d | PN16~40 | - | 8-14 | 8-14 | 8-14 | 8-16 | 8-16 | 10-16 | 10-16 | 12-18 | 14-18 | 16-18 | 18-18 |
| PN63~100 | - | 8-16 | 8-16 | 8-16 | 10-16 | 10-16 | 12-18 | 14-18 | 16-18 | 18-18 | 18-18 | 18-18 | |
| D3 | 220 | 265 | 315 | ||||||||||
| H6 | 180 | 240 | 305 | ||||||||||
| Weight(kg) PN16 | 39 | 40 | 48 | 52 | 60 | 68 | 90 | 105 | 143 | 210 | 280 | 315 | |
| Note: The unit of nominal pressure(PN) in the table above is bar. | |||||||||||||
Pneumatic Diaphragm Actuator Acting Comparison:
![]()
| Direct Acting (Air To Close) | Reverse Acting (Air To Open) |
| Spindle Movement With Increase In Air Pressure | Spindle Movement With Increase In Air Pressure |
| Spring Retract Normally Open | Spring Extend Normally Closed |
| Fail To Open FO | Fail To Close FC |
