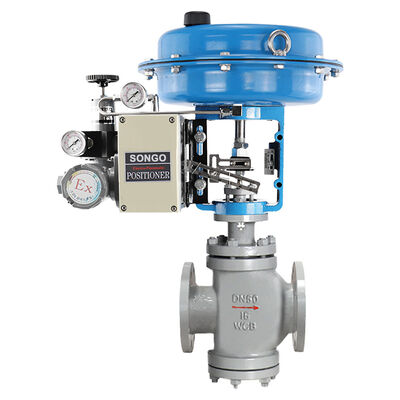

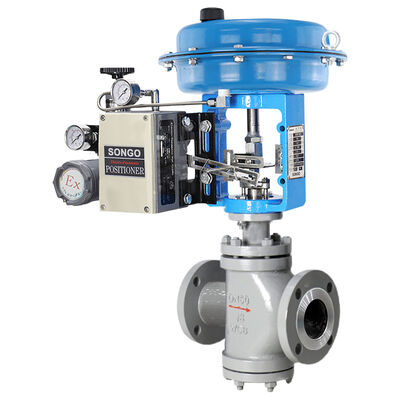

SONGO Pneumatic Diaphragm Control Flange Globe Valve Carbon steel Standard Type Pneumatic Double Seated Control Valve 16bar 2inch Positive Action air to open for steam

The pneumatic double-seat control valve is an industrial control device composed of a pneumatic diaphragm multi-spring actuator and a straight-through double-seat valve body. It is mainly applied in clean medium working conditions in fields such as petroleum, chemical engineering, and pharmaceuticals. It is suitable for situations where the pressure difference before and after the valve is relatively large and the leakage rate is not strictly required. It adopts a double-seat plunger type valve core and an upper and lower guiding structure. By balancing the unbalanced force through bidirectional thrust, it significantly increases the allowable pressure difference range (up to 6.4MPa). Compared with single-seat valves, it has a larger rated flow coefficient, but the leakage standard is generally grade III or IV.

The valve body material of this equipment includes cast steel, stainless steel, etc. The applicable temperature range covers -250℃ to +560℃. The drive mechanism adopts the ZHA/B series multi-spring diaphragm actuator, supporting air-on/air-off control mode and linear/equal percentage flow characteristics. Equipped with accessories such as positioners and filter pressure reducers, the adjustment accuracy can be optimized. During maintenance, the sealing parts and packing should be inspected regularly to ensure reliability. Common specifications include standard type, bellows sealed type and jacketed insulated type, suitable for pipes with diameters ranging from DN20 to 400. Installation must comply with vertical fixation and specific environmental requirements

● Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?

A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.

● Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?

A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.

● Q3: WHAT IS YOUR TERMS OF PAYMENT?

A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

● Q4: WHAT IS YOUR TERMS OF DELIVERY?

A4: EXW, FOB, CFR, CIF, DAP, DDP.

● Q5: HOW ABOUT YOUR DELIVERY TIME?

A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

● Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

A6: Yes, we have 100% test before delivery.

● Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
