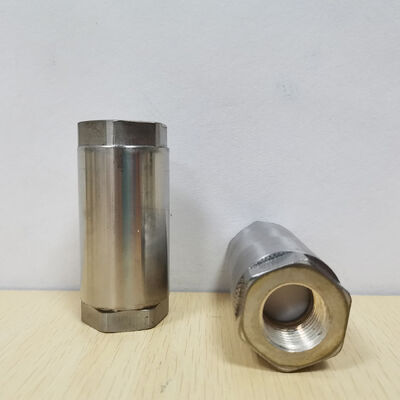

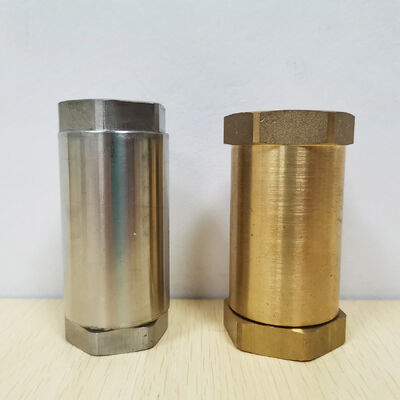

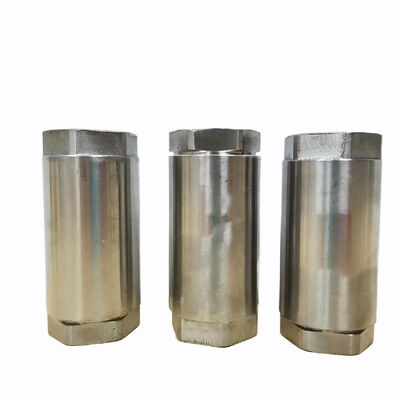

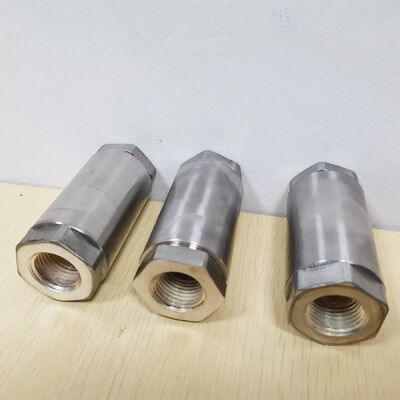

SS304 Cryogenic Check Valve NPT Thread Vertical Lift Non Return For LO2 LN2 LAr LNG LCH

SS304 Cryogenic Check Valve NPT Thread Vertical Lift Non Return For LO2 LN2 LAr LNG LCH

MOQ:	2 pieces
Price:	CN¥341.64/pieces 2-29 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Body Material:

Brass,Stainless Steel 304/316L(CF8/CF8M)

Size Range:

DN08-DN150 (1/4"-6")

Sealing Material:

PTFE,PCTFE

Temperature:

-196°C To +80°C (-320°F To +176°F)

Pressure:

0-600PSI (0-4.2MPa)

End Connection:

Threaded (NPT/BSP), Flanged (ANSI/ASME/DIN), Welded

Media:

LNG, Liquid Nitrogen, Oxygen, Argon, And Other Ultra-low-temperature Media

Brand Name:

SONGO

Customized Support:

OEM,ODM

Warranty:

2 Years

Highlight:

SS304 Cryogenic Check Valve

NPT Thread Cryogenic Check Valve

LO2 Cryo Check Valve

Product Description

Benefits Of Cryogenic Check Valve:

The cryogenic check valves (also called low-temperature non-return valves ) are engineered to prevent reverse flow in liquid nitrogen (LN2), LNG, liquid oxygen (LOX), argon, and other cryogenic fluids . Built for harsh sub-zero environments , these valves ensure leak-proof performance, zero backflow, and minimal pressure drop —critical for industrial, medical, and aerospace applications .

Cryogenice Non-return Valve Features:

Stainless steel (304/316L) body with PTFE/PCTFE seals to resist brittleness and thermal shock at -196°C,Zero Leakage.
Bubble-Tight Shutoff,Spring-assisted or swing-type designs for instant sealing,even under vacuum or high-pressure differentials.
Zero maintenance,No external operations required,it operates based on the pressure difference of the fluid.
Available in flanged, threaded (NPT/BSP), welded (SW/TW) , and wafer-style connections.

Size Range	1/4” to 6” (DN08 to DN150)	Body Material	SS316, SS304, CF8M
Pressure	Up to 600 PSI (42 bar)	Seat Material	PTFE, PCTFE, PEEK
Temperature Range	-196°C to +80°C (-320°F to +176°F)	Disc Material	SS316, SS304, CF8M
Connected End	Threaded (NPT/BSP), Flanged (ANSI/ASME/DIN), Welded	Medium	LO2, LN2, LAr, LNG, LCH, etc.

FAQ

Q: Are you trading company or manufacturer ?
A: Our factory in Wenzhou and our export office in Shenzhen.

Q: How long is your delivery time?
A: Generally 3-5 days. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: 30% of total cost Deposit,70% balance before shippment.

Q: Can I have a sample order?
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.

Q:What are your main products?
A:We are a valve manufacturer with 18 years of professional experience. Our main products are electric valves, pneumatic
valves,manual valves, ball valves, butterfly valves and so on. We are committed to providing the best quality service for our
global customers
