Songo butt weld cryogenic globe valve PN20 SS304 SS316L liquid oxygen With handle cut off valve

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥1500/pieces 1-29 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	30000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Valve Body:

Stainless Steel

Applicable Media:

LO2, LN2, LAr, LNG, LC2H4, Etc.

Temperature:

-196℃ ~ +80℃

Packing:

PCTFE

Size:

DN10-DN300

Packaging Details:

Carton / wooden box

Highlight:

SS304 cryogenic globe valve

liquid oxygen cut off valve

PN20 SS316L globe valve

Product Description

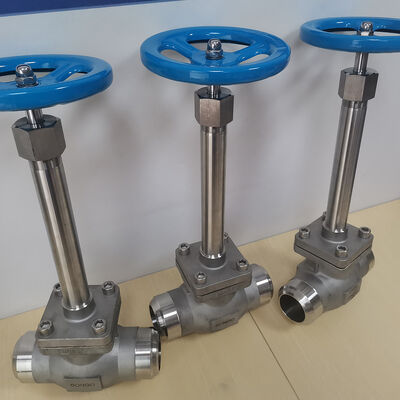

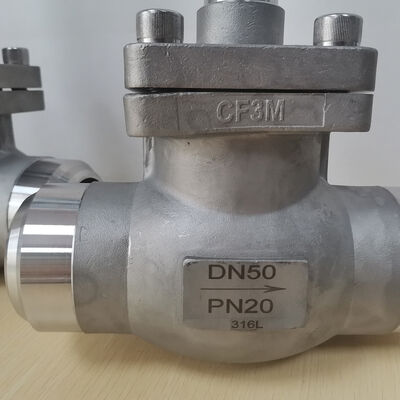

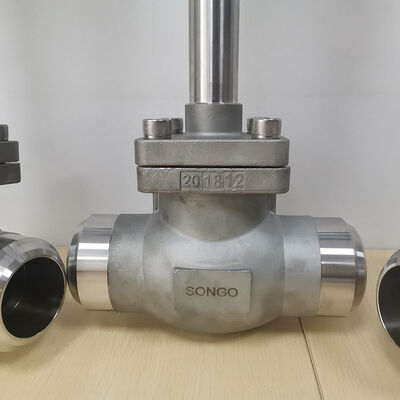

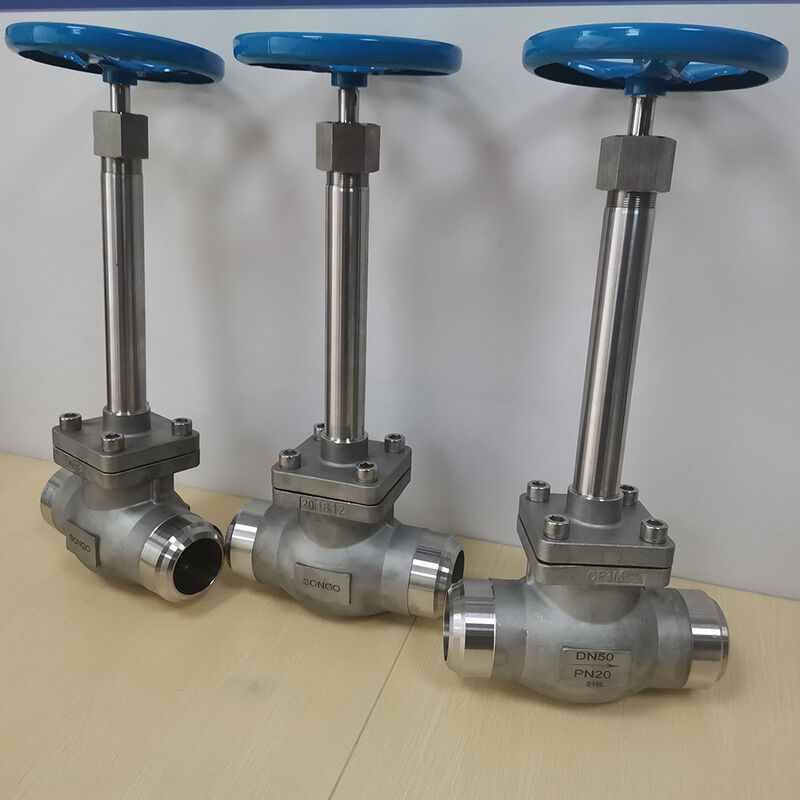

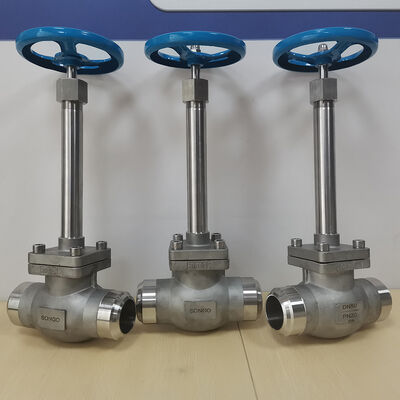

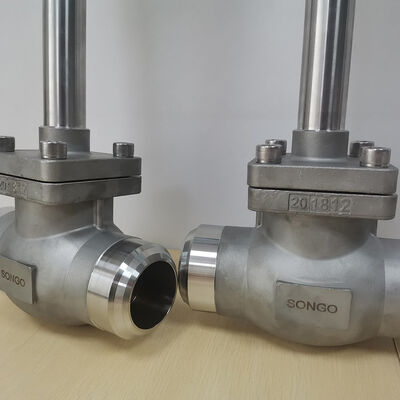

Songo Butt Weld Cryogenic Globe Valve PN20 SS304 SS316L

Product Overview

The Songo cryogenic globe valve is specifically designed for liquid media operating at temperatures between -196°C and -150°C. This LNG cryogenic globe valve provides reliable performance in liquefied natural gas transportation systems, operating stably within the temperature range of -196°C to normal temperature through manual, electric, or air-driven mechanisms.

Key Benefits

Simple structure for easy manufacturing and maintenance
Wear-resistant sealing surface with excellent sealing performance
Long service life and reliable cutting function
Compact design with short opening and closing times
Shorter valve height compared to gate valves

Technical Specifications

Valve body, valve cover, valve disc, valve stem: Stainless steel
Packing: PTFE, PCTFE
Operating temperature: -196°C to +80°C
Medium flow direction: From below the valve disc upwards
Applicable media: LO2, LN2, LAr, LNG, LC2H4, etc.
Recommended installation: Vertically with valve stem facing upwards

Material Specifications

Type	Cryogenic Globe Valve
Connection Type	Flange, butt weld, thread
Working Pressure	PN16/25/40/64/100/160, 150/300/600/900LB
Brand	SONGO
Size Range	DN10-DN300
Temperature Range	-196°C to +80°C
Compatible Media	Liquid Helium, Hydrogen, Nitrogen, Argon, Oxygen, Methane, Carbon Dioxide, Natural Gas
Body Material	Stainless Steel
Ball Material	Stainless Steel
Stem Material	Stainless Steel
Seat Material	PTFE/PCTFE
Operation	Manual

Dimension Drawing

DN(mm)	A(mm)	H1(mm)	H2(mm)	D(mm)	a(mm)	RA(mm)	D0(mm)	Weight(kg)
10	100	253	247	14	2		75	1.5
15	140	268	260	18	2		75	1.7
20	150	307	297	25	2.5		100	2.4
25	160	323	310	32	2.5		100	2.6
32	180	362	346	38	3		120	4.9
40	190	380	360	45	3.5		120	5.2
50	220	445	420	57	3.5		160	10.8
65	180	473	440		4	76	200	13.7
80	210	510	470		4	89	240	21.6
100	250	589	539		4	108	280	35.4
125	300	665	602		4	133	300	44.1
150	350	713	638		4.5	159	300	51.6
200	430	805	705		4.5	219	360	103.3
250	520	985	860		10	273	450	193.6
300	610	1080	930		10	325	560	289.8

Customer Satisfaction

Technical Support

Frequently Asked Questions

Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?

A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.

Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?

A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.

Q3: WHAT IS YOUR TERMS OF PAYMENT?

A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q4: WHAT IS YOUR TERMS OF DELIVERY?

A4: EXW, FOB, CFR, CIF, DAP, DDP.

Q5: HOW ABOUT YOUR DELIVERY TIME?

A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

A6: Yes, we have 100% test before delivery.

Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
