Benefits Of CPVC UPVC PPH PVDF FRPP Motorized Ball Valves:
The plastic electric two three way ball valve is made of corresponding materials according to different media, featuring small volume, light weight and strong corrosion resistance. Its structure is composed of a valve body and two ends connected together, which can be glued to pipelines or hot-welded, making it convenient Disassembly and repair. It is divided into straight-through type and three-way type. Among them, the three-way type can achieve the functions of diversion, convergence, reversing and mixing.

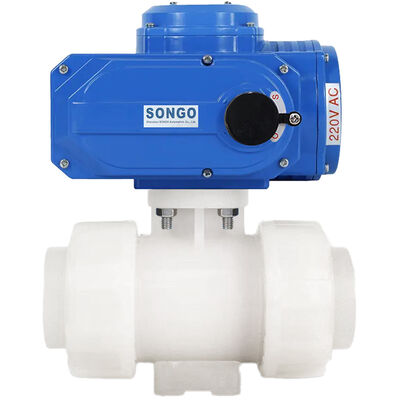

CPVC UPVC PPH PVDF FRPP Electric Ball Valve:
● Valve body
Nominal diameter : DN15-DN100
Valve body material : UPVC , PPH , CPVC , PVDF , FRPP
Connection method : Female Socket , Flange , Thread
Pressure rating : PN1.0MPa , PN1.6MPa
Structural form : straight-through , three-way L or T path
Internal valve components
● Valve seat seal : PTFE
Valve core materials : UPVC , PPH , CPVC , PVDF , FRPP
Valve stem material : Stainless steel 410, 304
Applicable media : water, liquid, gas, oil, acid and alkali corrosive media.
Temperature Comparison Table Applicable To Different Materials:
| Valve material | Medium temperature |
| UPVC | -10℃ ~ +70℃ |
| FRPP | -20℃ ~ +90℃ |
| PPH | -20℃ ~ +95℃ |
| CPVC | -40℃ ~ +95℃ |
| PVDF | -40℃ ~ +140℃ |
Technical Parameters Of Valve Actuator:
| ON/OFF Type | Light Indicator Signal Feedback, Passive Contact Signal Feedback,Resistance Potentiometer Signal Feedback |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110V/220V/380V 50/60HZ: DC12V/24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: IP68(EX ll BT4) |
Part Material:
| Connect Type | Socket / Female thread / Flange |
| Working Pressure | PN10 / PN16 / 235PSI |
| Brand | SONGO |
| Size | DN15-DN100 , 1/2" To 4" |
| O-ring | EPDM, FPM |
| Stem | Stainless steel |
| Seal Carrier | PVDF , UPVC , PPH , PVDF , CPVC |
| Ball | PVDF , UPVC , PPH , PVDF , CPVC |
| Ball Seat | PTFE |
| End Connector | PVDF , UPVC , PPH , PVDF , CPVC |
| Union Nut | PVDF , UPVC , PPH , PVDF , CPVC |
| Body | PVDF , UPVC , PPH , PVDF , CPVC |
| Operated | Electric actuated control |
| Voltage | 24VAC , 110VAC , 220VAC , 380VAC , 12VDC , 24VDC |
| Actuator type | On-off type , regulation type , RS485 , |
Structure Dimension Drawing:
| Size | D | d | E | h | L | L3 | H | H1 | H2 | T | F | C | M | L1 | L2 | Electric Actuator No. | |
| Thread | Socket | ||||||||||||||||
| 1/2" | 50.5 | 12.8 | 29 | 16 | 22.5 | 120 | 67 | 32 | 20 | 11 x 11 | 9 | 5.5 | ISO522 F03 | 178 | 121 | SONGO-05 | |
| 3/4" | 62.5 | 19 | 34 | 18 | 25 | 135 | 72 | 40 | 20 | 11 x 11 | 9 | 5.5 | ISO522 F03 | 178 | 121 | SONGO-05 | |
| 1" | 69 | 24.5 | 40 | 22 | 27.5 | 150 | 80 | 45 | 18 | 26 | 11 x 11 | 9 | 5.5 | ISO522 F03 | 178 | 121 | SONGO-05 |
| 1-1/4" | 82.5 | 30 | 45.5 | 25 | 31.5 | 167 | 89.5 | 54 | 18 | 26 | 11 x 11 | 14 | 6.5 | ISO522 F04 | 178 | 121 | SONGO-05 |
| 1-1/2" | 99 | 38 | 57.5 | 27 | 34 | 178 | 93 | 63 | 27 | 35 | 11 x 11 | 14 | 6.5 | ISO522 F05 | 178 | 121 | SONGO-05 |
| 2" | 122.6 | 49 | 70 | 31 | 38 | 204 | 111 | 73.5 | 27 | 35 | 11 x 11 | 14 | 6.5 | ISO522 F05 | 178 | 121 | SONGO-05 |
| 2-1/2" | 150 | 64 | 38 | 44.5 | 234 | 120.6 | 90 | 35 | 35 | 14 x 14 | 16 | 8.5 | ISO522 F07 | 210 | 131 | SONGO-10 | |
| 3" | 178.2 | 79 | 43 | 49 | 259 | 138.5 | 110 | 35 | 35 | 14 x 14 | 19 | 8.5 | ISO522 F07 | 210 | 131 | SONGO-10 | |
| 4" | 218.5 | 99 | 57 | 63.5 | 311 | 163.5 | 124 | 35 | 35 | 14 x 14 | 19 | 8.5 | ISO522 F07 | 210 | 131 | SONGO-10 | |
Pipe Standard Of PVC Pipe:
| Pipe Standard Of PVC Pipe | ||||
| Normal size | BS | ANSI | JIS | DIN |
| 1/2'' | 21.2 | 21.34 | 22.00 | 20 |
| 3/4'' | 26.6 | 26.67 | 26.00 | 25 |
| 1'' | 33.4 | 33.40 | 32.00 | 32 |
| 1-1/4'' | 42.1 | 42.16 | 38.00 | 40 |
| 1-1/2'' | 48.1 | 48.26 | 48.00 | 50 |
| 2'' | 60.2 | 60.28 | 60.00 | 63 |
| 2-1/2'' | 75.2 | 73.03 | 76.00 | 75 |
| 3'' | 88.7 | 88.90 | 89.00 | 90 |
| 4'' | 114.1 | 114.3 | 114 | 110 |
| 5'' | 140 | 141.3 | 140 | 140 |
| 6'' | 160 | 168.3 | 165 | 160 |
| 8'' | 225 | 219.1 | 216 | 200 |
| 10'' | 200 | 273.1 | 267 | 250 |
| 12'' | 315 | 223.9 | 318 | 300 |

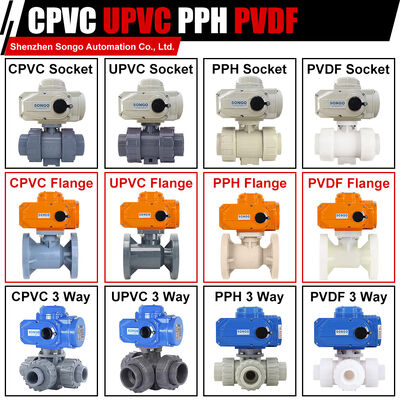

Different Material With Different Connect End Type:

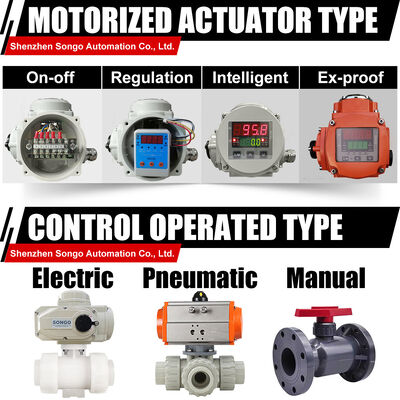

SONGO Motorized Actuator Type:
| SONGO Motorized Actuator Type | |||
|
|||
| On-off Type | Regulation Type | Intelligent Type | Ex-proof Type |
ISO5211 Mounting Valves:
| ISO5211 Mounting Valves | ||||
|
||||
| Metal Wafer Butterfly Valve | Metal Thread Ball Valve | True Union Ball Valve | Metal Flange Ball Valve | PVC Butterfly Valve |
Specification Of Motorized Actuator:
| Model | SONGO-05 | SONGO-10 | SONGO-16 | SONGO-30 | SONGO-60 | SONGO-125 | SONGO-250 | SONGO-400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Voltage Options | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V | |||||||
| Input Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Output Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Mounting Standard | ISO5211 direct mounting | |||||||
| Protection Class | IP67,Explosion Proof Construction Are Available: EX ll BT4(IP68) | |||||||
| Electrial Connection | G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃~+60℃ | |||||||
| Control Circuit | A: ON-OFF Type with Light Indicator Signal Feedback | |||||||
| B: ON-OFF Type with Passive Contact Signal Feedback | ||||||||
| C: ON-OFF Type with Resistance Potentiometer Signal Feedback | ||||||||
| D: ON-OFF Type with Resistance Potentiometer and Neutral Position Signal Feedback | ||||||||
| E: Regulation Type with Servo Control Module | ||||||||
| F: DC24V/ DC12V Direct On-off Type | ||||||||
| G: AC380V Three-Phase Power Supply with Passive Signal Feedback | ||||||||
| H: AC380V Three-Phase Power Supply with Resistance Potentiometer Signal Feedback | ||||||||
Motorized Actuator Wiring Diagram:
3 Ways Ball Valve Flow Paths:
Ball Valves Different Connect Options:
