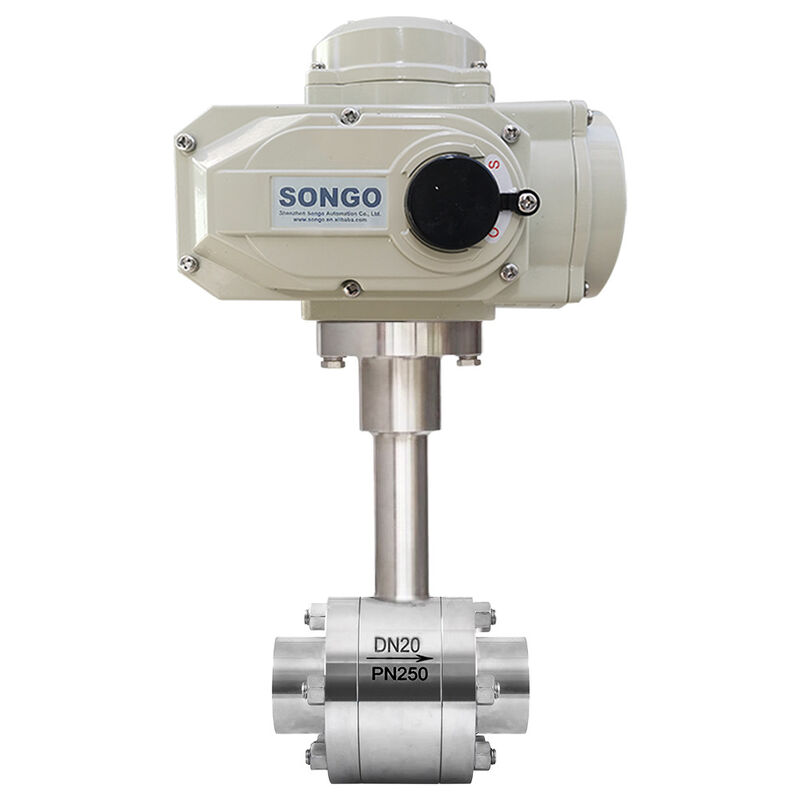

Benefits Of Motorized Cryogenic Ball Valve:
The low-temperature ball valve is of a three-piece structure and adopts a full-diameter design to reduce fluid resistance. The sealing is made of PCTFE and PPL materials, which can reduce valve wear, improve sealing performance, extend service life, and ensure that the valve achieves zero leakage.Equipped with electric actuators, it enables remote automated control, thereby achieving more precise flow control and enhancing efficiency.
Electric Cryogenic Ball Valve Features:
Technical Parameters of Valve Actuator:
| ON/OFF Type | Light Indicator Signal Feedback, Passive Contact Signal Feedback,Resistance Potentiometer Signal Feedback |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110V/220V/380V 50/60HZ: DC12V/24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: IP68(EX ll BT4) |
Part Material:
| Type | Thread Cryogenic Ball Valve |
| Connect Type | Thread |
| Working Pressure | PN16/25/40/64/100/160 |
| Brand | SONGO |
| Size | DN10-DN50 |
| Temperature | -196℃ ~ +80℃ |
| Medium | Liquid Helium, Liquid Hydrogen, Liquid Nitrogen, Liquid Argon, Liquid Oxygen, Liquid Methane, Liquid Carbon Dioxide, Liquid Natural Gas |
| Body | Stainless steel |
| Ball | Stainless steel |
| Stem | Stainless steel |
| Seat | PTFE/PCTFE |
| Operated | Electric actuated |
| Voltage | AC110V, 220V, 380V, DC12V, 24V |
| Actuator type | On-off type, regulation type |
Structure Dimension Drawing:
| Size | A | M | H | L | Valve Weight | L1 | L2 | Electric Actuator No. |
| DN10 | 80 | 3/8" | 205 | 160 | 2.9kgs | 178 | 121 | SONGO-05 |
| DN15 | 90 | 1/2" | 207 | 180 | 3.1kgs | 210 | 131 | SONGO-16 |
| DN20 | 100 | 3/4" | 239 | 200 | 3.9kgs | 210 | 131 | SONGO-16 |
| DN25 | 120 | 1" | 254 | 200 | 5.4kgs | 309 | 160 | SONGO-30 |
| DN32 | 140 | 1-1/4" | 280 | 250 | 9.9kgs | 309 | 160 | SONGO-60 |
| DN40 | 170 | 1-1/2" | 292 | 320 | 13.8kgs | 309 | 160 | SONGO-125 |
| DN50 | 180 | 2" | 322 | 320 | 19.5kgs | 309 | 160 | SONGO-125 |

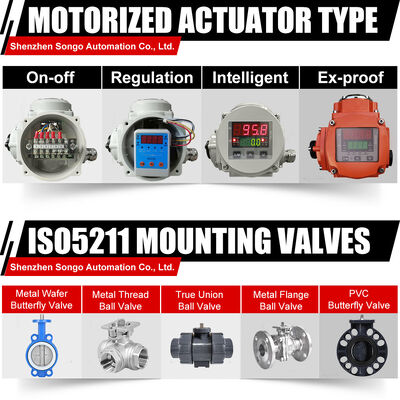

SONGO Motorized Actuator Type:
| SONGO Motorized Actuator Type | |||
|
|||
| On-off Type | Regulation Type | Intelligent Type | Ex-proof Type |
ISO5211 Mounting Valves:
| ISO5211 Mounting Valves | ||||
|
||||
| Metal Wafer Butterfly Valve | Metal Thread Ball Valve | True Union Ball Valve | Metal Flange Ball Valve | PVC Butterfly Valve |
Specification Of Motorized Actuator:
| Model | SONGO-05 | SONGO-10 | SONGO-16 | SONGO-30 | SONGO-60 | SONGO-125 | SONGO-250 | SONGO-400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Voltage Options | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V | |||||||
| Input Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Output Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Mounting Standard | ISO5211 direct mounting | |||||||
| Protection Class | IP67,Explosion Proof Construction Are Available: EX ll BT4(IP68) | |||||||
| Electrial Connection | G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃~+60℃ | |||||||
| Control Circuit | A: ON-OFF Type with Light Indicator Signal Feedback | |||||||
| B: ON-OFF Type with Passive Contact Signal Feedback | ||||||||
| C: ON-OFF Type with Resistance Potentiometer Signal Feedback | ||||||||
| D: ON-OFF Type with Resistance Potentiometer and Neutral Position Signal Feedback | ||||||||
| E: Regulation Type with Servo Control Module | ||||||||
| F: DC24V/ DC12V Direct On-off Type | ||||||||
| G: AC380V Three-Phase Power Supply with Passive Signal Feedback | ||||||||
| H: AC380V Three-Phase Power Supply with Resistance Potentiometer Signal Feedback | ||||||||
Motorized Actuator Wiring Diagram:

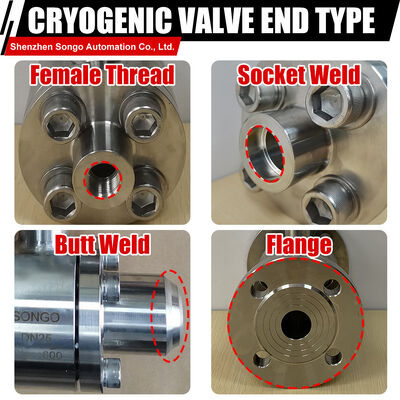

Ball Valves Different Connect Options:
