| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥1,601.42/pieces 2-29 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 5000-10,000Pieces/Month |

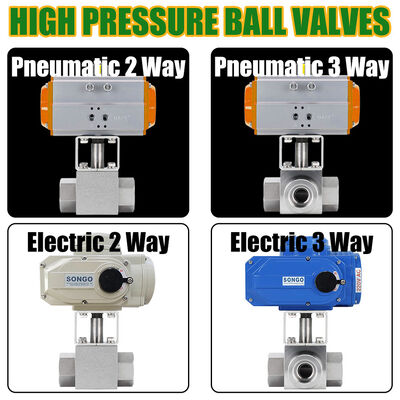

Descriptions Of High Pressure 2 way Pneumatic Actuator Ball Valve:
The pneumatic high pressure 2way ball valve is a high performance valve specially designed for high pressure and harsh working conditions. By controlling the opening and closing of the valve through compressed air, rapid and precise fluid regulation is achieved. It is widely used in high-pressure pipeline systems in industries such as petroleum, chemical engineering, power, and metallurgy, and has advantages such as good sealing performance, high pressure resistance, fast response, and long service life.
Design Features Of SONGO Stainless Steel High Pressure Pneumatic Ball Valve:
01) Simple structure, low wear, low maintenance cost, long service life.
02) Using high-strength materials (such as stainless steel 316, carbon steel, etc.), the working pressure can reach 1000 to 6000 PSI, and it is suitable for extreme pressure environments.
03) Equipped with double-acting or single-acting pneumatic actuators, fast to open and close, supporting automatic control, and suitable for remote or centralized management.
04) The valve seat is made of PTFE or metal hard seals to ensure bubble-level sealing and prevent the leakage of the medium.
05) Connection End:internal (external) thread (G / NPT), welding, ferrule.
Part Material Of Pneumatic Actuated High Pressure 2 Way Ball Valve:
| Connect Type | Thread,Welding,Ferrule |
| Working Pressure | PN320 |
| Brand | SONGO |
| Size | DN08-DN50 |
| Temperature | -20℃+280℃ |
| Medium | Fresh water,sewage, sea water, air, steam, food, medicine, oils, acids, etc. |
| Body | CF8, CF8M, stainless steel |
| Ball | SS304, SS316 |
| Stem | SS304, SS316 |
| Seat | PTFE |
| Operated | Pneumatic actuated |
| Actuator parts | Solenoid valve, limit switch, positioner, FRL |
| Actuator type | Double action, spring return |
Structure Dimension Drawing Of Pneumatic Operated SS304 High Pressure Ball Valve:
| Nominal diameter | L | T | H | K | R | D | L1 | L2 | Pneumatic Actuator No. |
| DN8 | 147 | 72 | 176 | 13 | 6 | G1/4" | 150 | 72.5 | AT-52 |
| DN10 | 147 | 78 | 176 | 16 | 8 | G3/8" | 150 | 72.5 | AT-52 |
| DN15 | 147 | 87 | 176 | 19 | 10 | G1/2" | 150 | 72.5 | AT-52 |
| DN20 | 168 | 99 | 237 | 24 | 14.5 | G3/4" | 171 | 83 | AT-63 |
| DN25 | 182 | 114 | 237 | 26 | 19.6 | G1" | 186 | 95.5 | AT-75 |
| DN32 | 204 | 123 | 249 | 38 | 24.8 | G1 1/4" | 206 | 103.5 | AT-83 |
| DN40 | 239 | 131 | 285 | 42 | 30 | G1 1/2" | 265 | 108 | AT-92 |
| DN50 | 268 | 142 | 348 | 50 | 39.6 | G2" | 272 | 121.5 | AT-105 |
Ball Valve Standard:
| Ball Valve Standard | ||||
| GB Standard | ASME Standard | JIS Standard | DIN Standard | |
| Design Standard | GB/T12237 | API608 | JIS BS5351 | DIN 3357 |
| Inspection Standard | GB/T13927 | API598 | JIS B2003 | EN 12266 |
| Face-to-Face Standard | GB/T12221 | ASME B16.10 | JIS B2002 | DIN 3202-F4 |
| Flange Standard | HG/T 20592, GB/T9113,EN 1092-1, JB/T79.1 |
ASME B16.5 | JIS B2220 | EN 1092-1 |
| Pressure-Temperature Standard |
GB/T 26640 | ASME B16.34 | ASME B16.34 | ASME B16.34 |
| Fire Safe Standard | API607/API 6FA | API607/API 6FA | API607/API 6FA | API607/API 6FA |
Matching Air Accessories Selection For Pneumatic Ball Valve:
Pneumatic Actuator Accessories Options :
| Pneumatic Actuator Accessories Options | ||
| Pneumatic Actuator Pisition | Applicable Connection Standard |
Pneumatic Actuator Accessories |
| Actuator Upper | VDI/VDE 3845 | ● Limit Switch Box ● Proximity Switch ● P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) ● E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) |
| Actuator Back | VDI/VDE 3845 | Non Explosion-proof Type ExmbIICT4 / EX d IIB T6 / EX d IIC T6 / EX ia IIC T6 Explosion-proof Type ● 3/2 Way Namur Solenoid Valve ( For Spring Return Actuator ) ● 5/2 Way Namur Solenoid Valve ( For Double Acting Actuator ) Air Filter Regulator |
| Actuator Bottom | ISO5211/DIN3337 | ● Declutchable Gear Box ● Ball Valve , Butterfly Valve , Plug Valve |
Single Acting & Double Acting Difference Of Pneumatic Actuator:
| Principle Of Single Acting Pneumatic Actuator (Spring Return) | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
| Principle Of Double Acting Pneumatic Actuator | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A. |
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
|
Operating Type Selection Of Ball Valve:
Connect End Selection Of Pneumatic Ball Valve:
Flow Path Selection Of Pneumatic 3 Ways Ball Valve:

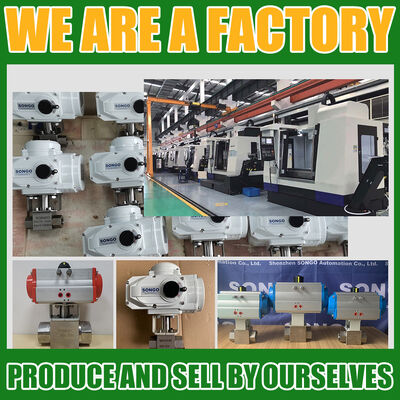

29 Years Valve Factory Founded In 1996:
