| Brand Name: | SONGO |
| MOQ: | 2 pcs |
| Price: | CN¥260/pieces 1-29 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 30000 Piece/Pieces per Month |

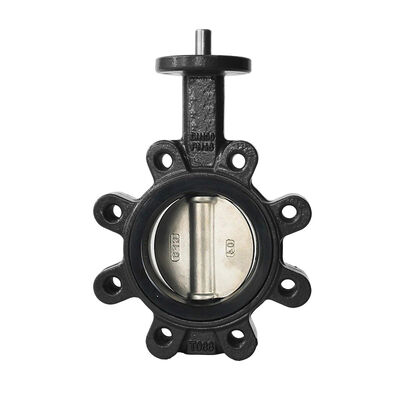

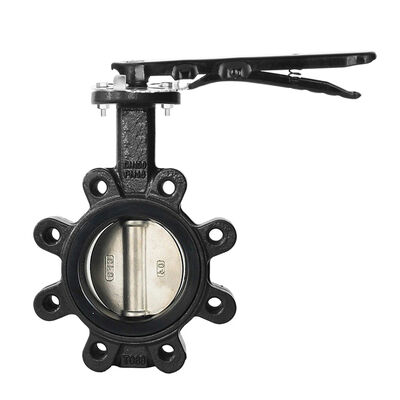

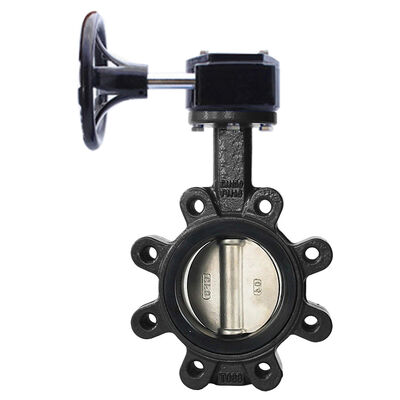

The lug-wafer type butterfly valve is a high-performance valve fixed on pipelines through lug connections. Installed between two pipe flanges using stud bolts, it features a simple structure, compact size, and lightweight design. The valve achieves rapid opening and closing with a 90° rotation, making it ideal for various industrial applications.
| Nominal Diameter | Inch | C | D | D1 | W | H | n-Φd |
|---|---|---|---|---|---|---|---|
| DN50 | 2" | 42 | 52.9 | 120.7 | 185 | 190 | 4*Φ19 |
| DN65 | 2.5" | 44.7 | 64.5 | 139.7 | 185 | 205 | 4*Φ19 |
| DN80 | 3" | 45.2 | 78.8 | 152.4 | 185 | 210 | 4*Φ19 |
| DN100 | 4" | 52.2 | 104 | 190.5 | 235 | 235 | 8*Φ19 |
| DN125 | 5" | 54.5 | 123.3 | 215.9 | 235 | 235 | 8*Φ22 |
| DN150 | 6" | 55.8 | 156.6 | 241.3 | 245 | 256 | 8*Φ22 |
| DN200 | 8" | 60.2 | 298.5 | 298.5 | 280 | 292 | 8*Φ22 |
