SONGO Basket Direct Type Filter with silicone gasket 400mesh SS304 flange PN16 for Sewage

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥1000/pieces 1-29 pieces
Payment Terms:	D/A,L/C,D/P,T/T,Western Union
Supply Ability:	30000 Piece/Pieces per Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Certification:

CE & ISO

Size:

DN25-DN300

Mesh:

10-1500

Connecting:

Flange，butt Welding

Screen Material:

SS304、SS316

Valve Body:

SS304、SS316、Carbon Steel

Nominal Pressure:

PN10,PN16, PN25,150LB

Temp:

0-300°C

Warranty:

1 Year

Custom-made:

OEM/ODM

Packaging Details:

Carton / wooden box

Highlight:

SS304 flange basket filter

direct type filter with silicone gasket

400mesh sewage basket filter

Product Description

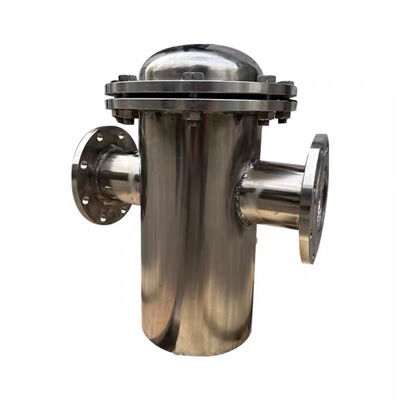

SONGO Basket Direct Type Filter with Silicone Gasket

400 mesh SS304 flange PN16 for sewage applications

Benefits of Basket Direct Type Filter

The basket filter is designed for oil and liquid pipelines to effectively remove debris and solid impurities. Its unique basket-shaped filter screen provides superior filtration performance with several key advantages:

Filter hole area is 2-3 times larger than pipe diameter
Superior filtering area compared to Y-type and T-type filters
Excellent filtration accuracy
Ensures stable operation of machinery and equipment
Maintains safe production processes

Product Construction

Composed of cylinder body, filter basket, flanges, flange covers, and fasteners. When installed in pipelines, it effectively removes large solid impurities from fluids, protecting compressors, pumps, and instruments.

Key Features

Direct-through design for smooth liquid flow with minimal pressure loss
Size range: DN25 to DN300
Filter screen material: SS304, SS316
Mesh options: 10-1500 mesh
Connection methods: Flange and butt welding
Horizontal installation on pipelines
Easy maintenance with regular cover opening for filter basket cleaning or replacement

Dimension Specifications

DN	L	H	H1	H2	φ	B1 Blowdown Tap	Strainer Area (m²)	WT (Kg)
25	220	480	160	260	76	R1/2"	0.003619	13.8
32	220	495	160	270	76	-	0.003619	16.5
40	280	550	180	300	114	-	0.005718	19
50	280	550	180	300	114	-	0.005718	23
65	330	650	220	350	140	DN20 Plane RF	0.009613	39
80	340	740	260	400	168	-	0.001539	52
100	420	880	310	470	219	-	0.02464	82
150	500	1175	430	620	273	-	0.04866	208
200	560	1540	530	780	325	R3/4"	0.07858	245
250	660	1890	640	930	426	-	0.12065	280
300	750	2130	840	1200	478	-	0.16537	390
