| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥377.23/pieces 2-29 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 30000 Piece/Pieces per Month |

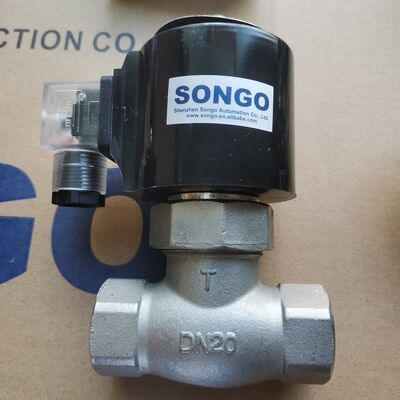

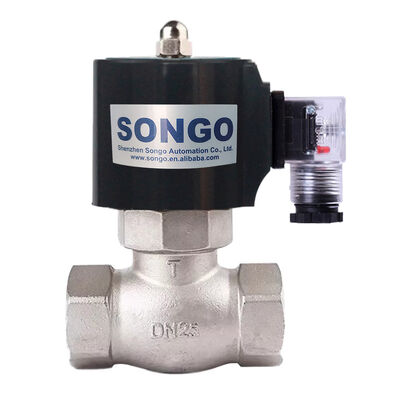

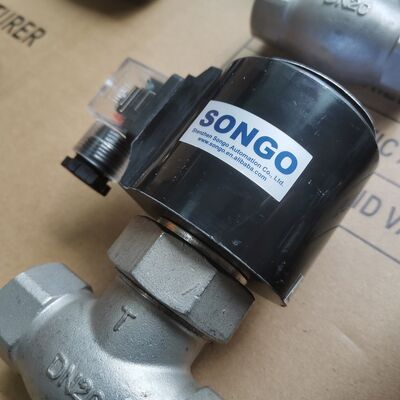

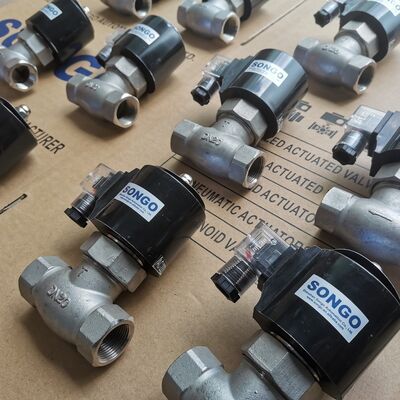

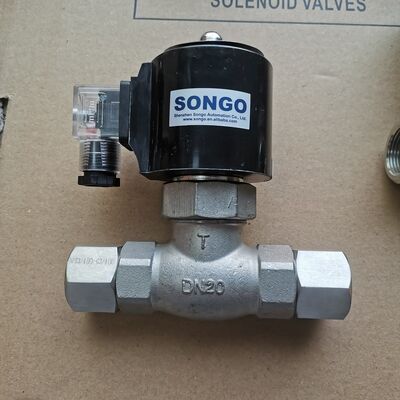

SONGO Direct Acting piston steam Solenoid Valve:
The system uses a pilot mechanism to directly pull the piston to achieve pressure-free opening, ensuring the reliability of the opening. The polytetrafluoroethylene sealing sheet significantly enhances the product's temperature resistance. It is more suitable under low pressure and high flow conditions.
SONGO Direct Acting piston steam Solenoid Valve Technical Parameter:
| MAX working pressure | 0.8MPa |
| Operating pressure differential | 0-0.8MPa |
| Medium | liquid gas steam＜20 cst |
| Medium temp | ≤180°C |
| Operation | Direct acting |
| Voltage | AC220,380V,24VDC |
| Insulation grade | B class |
| The power supply range | -15% to +10%. |
| Power | 50W |
| Response time | Open:below 2 second,close:below 3 second |
| Install way | Media flow direction and the on the arrow consistent. The coil vertically upward ,the working media clean and no particle impurities |
Direct Acting piston steam Solenoid Valve of Structure Parameters:
| SS304/brass | |||||||||
| Model no | A | B | C | ΦD | ΦE | ΦF | ΦG | H | Pipe size |
| ZQDF-15 | 82 | / | / | 70 | / | / | / | 145 | G 1/2’‘ |
| ZQDF-20 | 82 | / | / | 70 | / | / | / | 147 | G 3/4’‘ |
| ZQDF-25 | 91 | / | / | 70 | / | / | / | 158 | G 1’‘ |
| ZQDF-32 | 112 | / | / | 73 | / | / | / | 178 | G 1-1/4’‘ |
| ZQDF-40 | 112 | / | / | 71 | / | / | / | 175 | G 1-1/2’‘ |
| ZQDF-50 | 118 | / | / | 91 | / | / | / | 190 | G 2’‘ |
| ZQDF-25F | 118 | 12 | 2 | 115 | 70 | 4-18 | 65 | 195 | DN25 |
| ZQDF-32F | 138 | 14 | 2 | 133 | 100 | 4-18 | 78 | 215 | DN32 |
| ZQDF-40F | 139 | 14 | 2 | 150 | 110 | 4-18 | 89 | 225 | DN40 |
| ZQDF-50F | 148 | 14 | 2 | 163 | 125 | 4-18 | 98 | 235 | DN50 |
