Songo Manual 3 way flange ball valve full port ptfe seal L shape SS304 carbon steel PN16 150LB with handle

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥1500/pieces 1-29 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	30000 Piece/Pieces per Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Certification:

CE & ISO

Valve Body:

SS304、WCB

Connection:

Flange/thread，socket Weld

Size:

DN15 To DN250

Seal:

PTFE,PPL, Metal Hard Seal

Flange Standard:

PN1.6 / 2.5 / 4.0 / 6.4 MPa（Class 150~600Lb）

Customized Support:

ODM/OEM

Warranty:

12 Months

Rotation Angle:

0-90°

Max Temp:

300degree

Flow Direction:

L/T Shape

Operation:

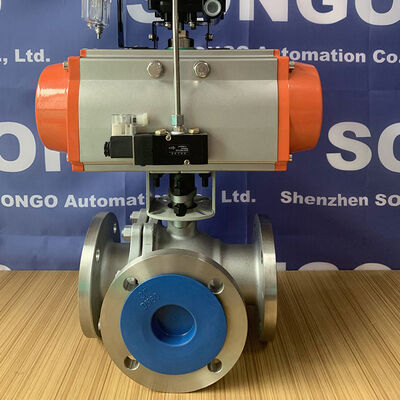

Manual/pneumatic/electric

Packaging Details:

Carton / wooden box

Highlight:

Manual 3 way flange ball valve

Full port PTFE seal ball valve

SS304 carbon steel L shape valve

Product Description

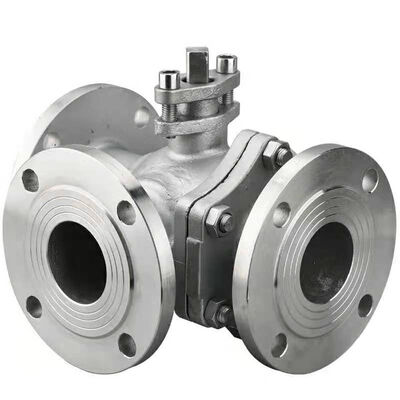

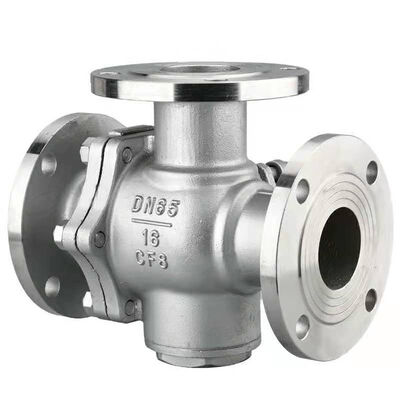

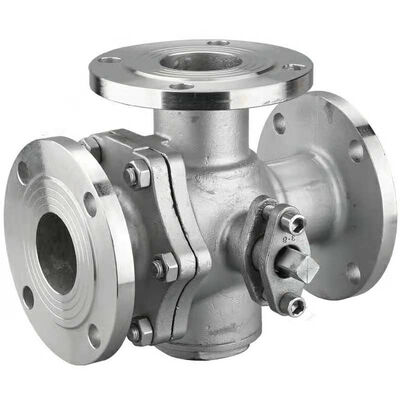

Manual 3-Way Flange Ball Valve - Full Port PTFE Seal

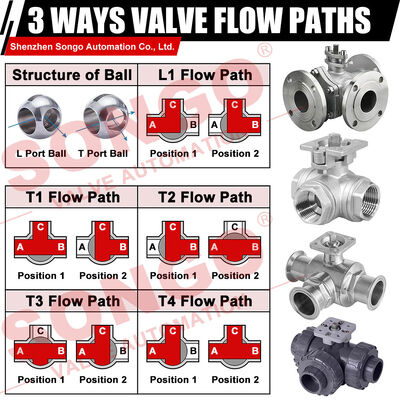

A 3-way ball valve is designed to control and regulate fluid flow in multiple directions within piping systems. By rotating a ball with an L-shaped or T-shaped passage, this valve can connect, isolate, or redirect flow among three pipelines, providing functions including fluid diversion, convergence, and flow direction switching.

Key Design Features

Temperature Range: PTFE seals: -20℃ to 180℃; PPL seals: -20℃ to 280℃; Hard sealing: -15℃ to 300℃
Nominal Diameter: DN15 to DN250
Leakage Rate: Soft seal achieves zero leakage
Flow Design: Full bore configuration for minimal resistance
Maintenance: Inspection and repair possible without removing entire valve body after depressurization
Safety Features: Fireproof structure (API 607), anti-static valve stem, explosion-proof device

Structure Dimension Drawing

Dimensions Table

DN	L	D	D1	D2	b	Z-Φd	H	W	WT(kg)
15	150	95	65	45	14	4-Φ14	95	140	4
20	160	105	75	55	14	4-Φ14	105	160	8
25	180	115	85	65	14	4-Φ14	113	180	7
32	200	135	100	78	16	4-Φ18	135	250	12
40	220	145	110	85	16	4-Φ18	142	300	15
50	240	160	125	100	16	4-Φ18	165	350	20
65	260	180	145	120	18	4-Φ18	175	350	25
80	280	195	160	135	20	8-Φ18	190	400	36
100	320	215	180	155	20	8-Φ18	225	500	51
125	380	245	210	185	22	8-Φ18	245	600	77
150	440	280	240	210	24	8-Φ23	265	800	108
200	550	335	295	265	26	12-Φ23	305	800	126
250	670	405	355	320	30	12-Φ25	370	1300	185

Performance Specifications (Unit: MPa)

PN	Working Pressure	Case Test Pressure	Gas Seals Test Pressure	High-pressure Sealing Test Pressure
1.6	1.6	2.4	0.6	1.76
2.5	2.5	3.8	0.6	2.75
4	4	6	0.6	4.4
6.4	6.4	9.6	0.6	7.1
Class 150	2	3	0.6	2.2
Class 300	5	7.5	0.6	5.5

Comprehensive Technical Support

Our engineering team provides complete technical support throughout installation and operation.

Client Feedback

Frequently Asked Questions

ARE YOU A MANUFACTURER OR A TRADE COMPANY?

We are a 29-year professional valve automation integration manufacturer, producing and selling directly from our factory.

IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?

Yes, our technical engineers provide remote video support, installation guidance, and valve commissioning assistance.

WHAT IS YOUR TERMS OF PAYMENT?

T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.

WHAT IS YOUR TERMS OF DELIVERY?

EXW, FOB, CFR, CIF, DAP, DDP available.

HOW ABOUT YOUR DELIVERY TIME?

Typically 2-5 days after receiving advance payment. Exact timing depends on specific items and order quantity.

DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

Yes, we perform 100% testing before delivery to ensure quality and performance.

HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

We maintain excellent quality and competitive pricing to ensure customer benefits. We treat every customer as a partner and sincerely conduct business while building lasting relationships.
