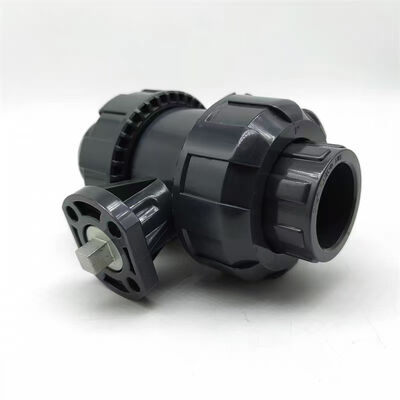

SONGO UPVC True union ball valve thread socket type epdm seal full bore with acid and alkali resistant

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥39/pieces 1-29 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	30000 Piece/Pieces per Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Certification:

CE & ISO

Body:

FRPP.PVDF.UPVC.CPVC

Seal Ring:

PTFE

Handwheel:

ABS

Stem:

FRPP.PVDF.UPVC.CPVC

Screw:

Metal

Working Temp:

-5°-50°

Structural:

Full Bore

Size:

DN15-50

Working Pressure:

10bar

Packaging Details:

Caton box

Highlight:

UPVC true union ball valve

EPDM seal full bore valve

Acid resistant thread socket valve

Product Description

SONGO UPVC True Union Ball Valve - Thread Socket Type

EPDM seal full bore valve with excellent acid and alkali resistance for reliable pipeline control.

Product Overview

The UPVC true union ball valve is engineered for precise media flow control in pipeline systems. Constructed from durable PVC material, this valve offers superior corrosion resistance, lightweight design, and straightforward installation. The double-ended union fitting design enables easy disassembly and maintenance.

Key Design Features

High working pressure rating (150-240 PSI)
Low torque operation with full flow capacity
Lockable valve mechanism for safety
Adjustable seat tightness for optimal performance
Easy replacement and repair capabilities
EPDM ball seal for enhanced durability
Available in multiple standards: DIN, ANSI, JIS, BSSP, BSPT, NPT

Component Materials

Part No.	Component Name	Material
1	Body	FRPP, PVDF, UPVC, CPVC
2	Ball	FRPP, PVDF, UPVC, CPVC
3	Retaining	FRPP, PVDF, UPVC, CPVC
4	Screw Join	FRPP, PVDF, UPVC, CPVC
5	Compression Nut	FRPP, PVDF, UPVC, CPVC
6	Seal Ring	PTFE
7	Handwheel	ABS
8	Stem	FRPP, PVDF, UPVC, CPVC
9-11	Sealing Ring	EPDM, FPM
12	Seal Ring	PTFE
13	Screw	Metal

Technical Specifications

DN	ZG	D	L	L1	Working Pressure (MPa)	Weight FRPP (kg)	Weight PVDF (kg)
15	1/2"	20	92	15	0.6	0.15	0.25
20	3/4"	25	105	17	0.6	0.2	0.36
25	1"	32	118	20	0.6	0.3	0.5
32	1 1/4"	40	140	23	0.6	0.5	0.8
40	1 1/2"	50	152	25	0.6	0.6	1.0
50	2"	63	170	28	0.6	1.0	1.7

Technical Support & Engineering Expertise

Comprehensive After-Sales Support

Frequently Asked Questions

Are you a manufacturer or a trade company?

We are a 29-year professional valve automation integration valve manufacturer, producing and selling directly from our factory.

Is there technical engineer's guidance for installation before or after sale?

Yes, our technical engineers provide remote video support, installation guidance, and valve commissioning assistance.

What are your payment terms?

T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.

What are your delivery terms?

EXW, FOB, CFR, CIF, DAP, DDP available.

What is your delivery time?

Typically 2-5 days after receiving advance payment. Exact timing depends on product items and order quantity.

Do you test all goods before delivery?

Yes, we perform 100% testing on all products before delivery.

How do you maintain long-term business relationships?

We maintain excellent quality and competitive pricing to ensure customer benefits. We value every customer relationship and prioritize building lasting partnerships.
