| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥4,199.27/pieces 2-29 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 5000-10,000Pieces/Month |

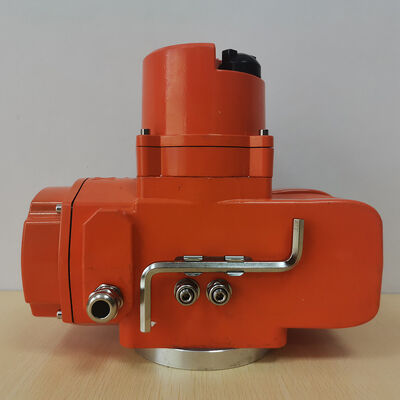

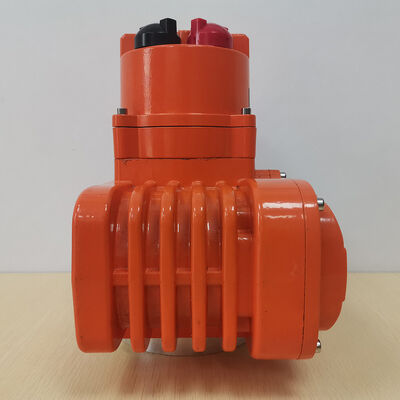

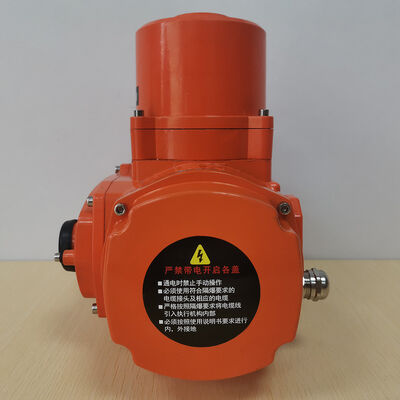

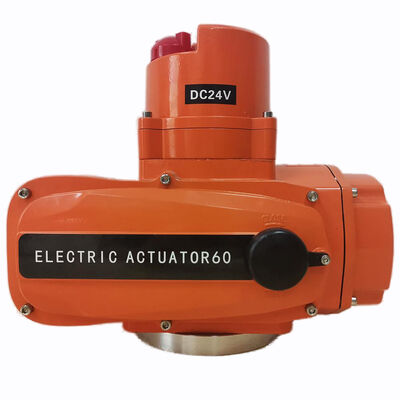

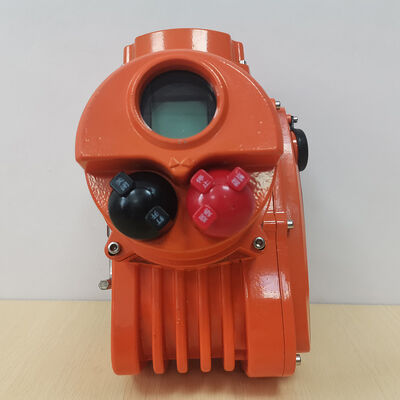

Product Description Of IP68 Motorized actuator:
IP68 Electric actuators are used to control 0-90°rotating valves and other similar products,such as butterfly valves,ball valves,dampers,plug valves,louver valves,etc.In order to drive the power supply,in addition,the actuator can have its own reset (with reset function),with 4-20mA current signal or 0-10VDC voltage signal as the control signal,the valve can bemoved to the required position to realize its automatic control,the maximum output torque Up to 2000N.m.
Standard Features Of IP68 Motorized actuator:
● Highest explosion-proof rating: CT6
● Secondary processing and polishing of the connection surface, seamless joint of multiple layers of sealing, bottom frame oil seal.
● The indicator needle is equipped with 8mm thick explosion-proof glass for safety and explosion prevention.
● Obtained the 3C national compulsory certification, meeting explosion-proof requirements, and the wiring is safer.
● Multi-angle rotation: 0-360° multi-rotation, with the ability to freely control the rotation angle.
Part Material Of IP68 Motorized actuator:
| Voltage | AC24V,110V,220V,380V,DC12V,DC24V |
| Torque | 50NM-2000NM |
| Brand | SONGO |
| Size | SONGO05-200 |
| Insulation grade | 100ΜΩ /500VDC |
| Protection level | IP68. |
| Rotation | 0-360°C |
| Body | Aluminum alloy |
| Temp | -20-60°c |
| Function | ENC and over torque protection |
| Operated | Electric actuated |
| Actuator type | On-off type, regulation type |
Structure Dimension Drawing Of IP68 Electric Actuator:
| SONGO05-200 IP68 Electric Actuator | |||||||
| L(mm) | W(mm) | H(mm) | Fl(mm) | F2(mm) | F3(mm) | N-D | Electric Actuator No. |
| 168 | 190 | 130 | 50 | 70 | 57 | 4-M6 | SONGO-05 |
| 215 | 200 | 165 | 70 | 102 | 89 | 4-M8 | SONGO-10 |
| 215 | 200 | 165 | 70 | 102 | 89 | 4-M8 | SONGO-16 |
| 265 | 220 | 205 | 70 | 102 | 89 | 4-M10 | SONGO-20 |
| 265 | 220 | 205 | 70 | 102 | 89 | 4-M10 | SONGO-40 |
| 265 | 220 | 205 | 70 | 102 | 89 | 4-M10 | SONGO-60 |
| 305 | 230 | 202 | 102 | 125 | 108 | 4-M12 | SONGO-100 |
| 305 | 230 | 202 | 102 | 125 | 108 | 4-M12 | SONGO-200 |
SONGO Electric Actuator Type:
Selction Of SONGO IP68 Electric Actuator:
| On-off Type | Light Indicator Signal Feedback , Passive Contact Signal Feedback , Resistance Potentiometer Signal Feedback , Power Off Reset , Intelligent Screen Display Type |
| Regulation Type | Input & Output signal: DC 4-20mA , DC0-10V , DC1-5V , RS485 |
| Field Operation | The Field , Remote Control Switch Regulation and MODBUS , PROFIBUS Field Bus |
| Voltage Optional |
AC24V , AC110V , AC220V , AC380V DC12V , DC24V |
| Ingress Protection Class Optional | IP65 , IP67 , IP68 , Explosion Proof |
Specification Of SONGO Electric Actuator:
| Model | SONGO-05 | SONGO-10 | SONGO-16 | SONGO-20 | SONGO-40 | SONGO-60 | SONGO-100 | SONGO-200 |
| Torque Output | 50Nm | 100Nm | 160Nm | 200Nm | 400Nm | 600Nm | 1000Nm | 2000Nm |
| Cycle Time | 30S | 30S | 30S | 30S | 30S | 30S | 45S | 45S |
| Rotation | 0-90° | 0-90° | 0-90° | 0-360° | 0-360° | 0-360° | 0-360° | 0-360° |
| Weight | 3.1 | 5.5 | 5.6 | 11 | 11.5 | 11.8 | 14.5 | 15.5 |
| Voltage Options | AC24V , AC110V , AC220V , AC380V , DC12V , DC24V | |||||||
| Input Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||
| Output Signal | 4-20mADC , 1-5VDC , 0-10VDC , RS485 | |||||||

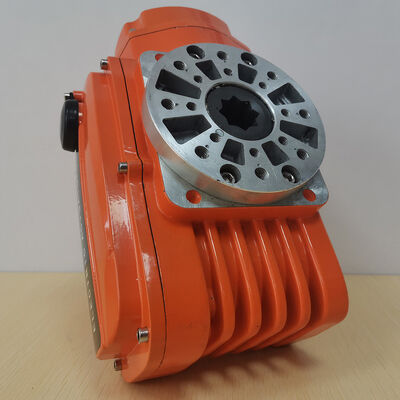

| Mounting Standard | ISO5211 direct mounting | |||||||
| Protection Class | Explosion Proof Construction Are Available: EX ll BT4(IP68) | |||||||
| Electrial Connection | G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -20℃~+60℃ | |||||||
| Control Circuit | A: ON-OFF Type with Light Indicator Signal Feedback | |||||||
| B: ON-OFF Type with Passive Contact Signal Feedback | ||||||||
| C: ON-OFF Type with Resistance Potentiometer Signal Feedback | ||||||||
| D: ON-OFF Type with Resistance Potentiometer and Neutral Position Signal Feedback | ||||||||
| E: Regulation Type with Servo Control Module | ||||||||
| F: DC24V/ DC12V Direct On-off Type | ||||||||
| G: AC380V Three-Phase Power Supply with Passive Signal Feedback | ||||||||
| H: AC380V Three-Phase Power Supply with Resistance Potentiometer Signal Feedback | ||||||||
SONGO Electric Actuator Wiring Diagram:
