| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥1,067.61/pieces 2-29 pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 5000Pieces/Month |

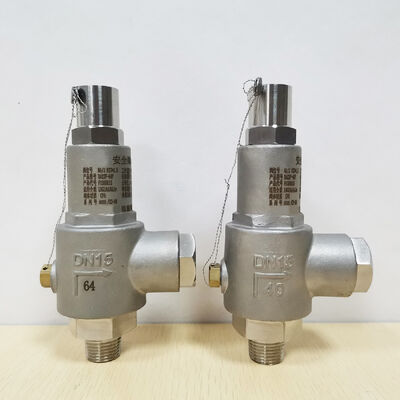

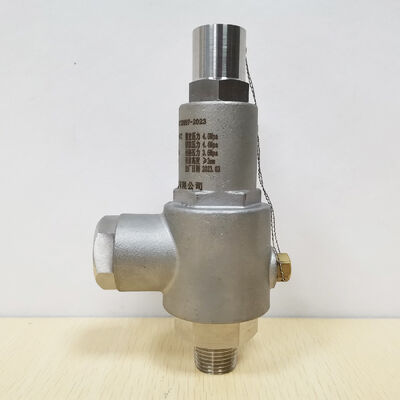

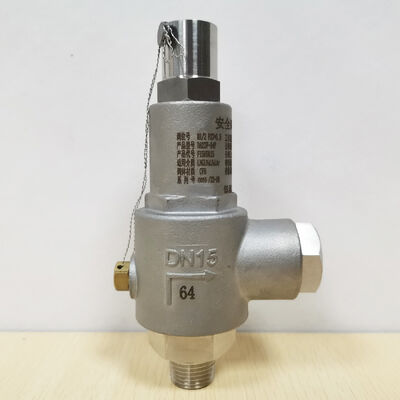

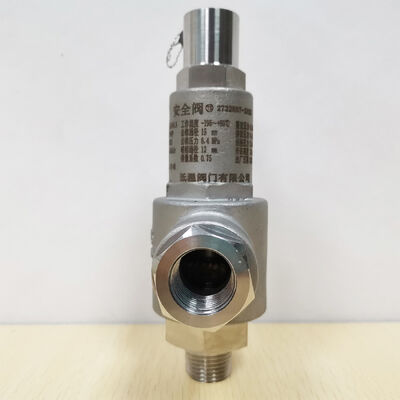

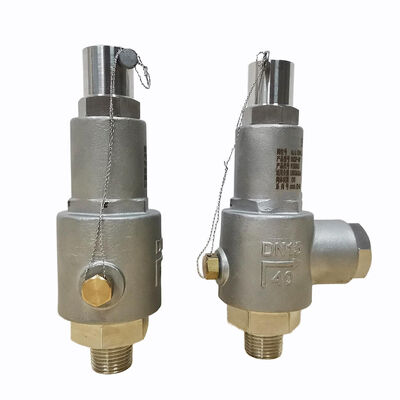

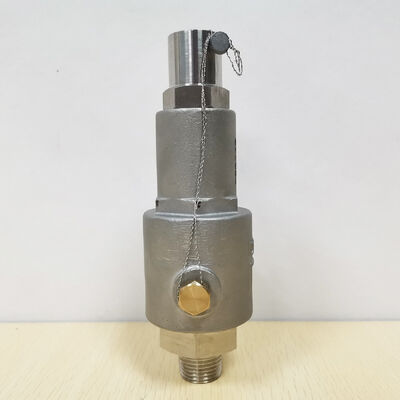

Descriptions Of thread type Cryogenic Relief Valve :
The Cryogenic Ball Valves are specially designed for ultra-low temperature conditions ranging from -196°C to +80°C. They are suitable for reliable shut-off and flow control of cryogenic media such as liquefied natural gas (LNG), liquid oxygen, liquid nitrogen, liquid argon, and liquid hydrogen. Featuring extended valve stems, anti-freezing structures, and special sealing materials, they ensure zero leakage and safe operation even in extremely cold environments. They are widely used in LNG storage and transportation, industrial gases, chemical industries, and aerospace fields.
Features Of thread type Cryogenic Relief Valve :
01) The bearing adopts a self-lubricating design, featuring minimal frictional resistance.
Part Material Of thread type Cryogenic Relief Valve:
| Type | Manual Cryogenic Relief Valve |
| Connect Type | Thread |
| Working Pressure | PN16/25/40/64/100/160 |
| Brand | SONGO |
| Size | DN10-DN50 |
| Temperature | -196℃ ~ +80℃ |
| Medium | Liquid Helium, Liquid Hydrogen, Liquid Nitrogen, Liquid Argon, Liquid Oxygen, Liquid Methane, Liquid Carbon Dioxide, Liquid Natural Gas |
| Body | Stainless steel |
| Ball | Stainless steel |
| Stem | Stainless steel |
| Seat | PTFE/PCTFE |
| Operated | Manual,Spring direct-acting fully open type |
Structure Dimension Drawing Of thread type Cryogenic Relief Valve:
| DA22F-64P Pressure: 6.4Mpa Unit:mm | ||||||||||
| Nominal Diameter | D0 | L | L1 | L2 | L3 | M1 | D1 | b | M2 | D2 |
| DN10 | 8 | 145 | 36 | 48 | 18 | M30x1.5 | 26 | 3 | M24x1.5 | 17 |
| DN15 | 12 | 164 | 45 | 56 | 20 | M30x1.5 | 26 | 3 | M36x2 | 24 |
| DN20 | 15 | 174 | 48 | 61 | 20 | M30x1.5 | 26 | 3 | M42x2 | 32 |
| DN25 | 20 | 185 | 51 | 62 | 20 | M36x2 | 31 | 3 | M45x2 | 36 |
| DN40 | 32 | 340 | 75 | 90 | 26 | M56x2 | 48 | 3 | M64x2 | 50 |
| DN50 | 40 | 378 | 85 | 98 | 26 | M64x2 | 56 | 3 | M80x2 | 62 |
SONGO──Your No.1 Automation Valve Specialist:
No Worries After Buy Our Valves:
Why Not Choose Our Factory:
How To Customize For You:
Frequently Asked Questions:
● Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?
A1: We are a 29 years professional valve automation integration valve manufacturer, we produce and sale directly from our factory.
● Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?
A2: Yes, no worries. Our technical engineer will remote video, installation guide, commissioning valve.
● Q3: WHAT IS YOUR TERMS OF PAYMENT?
A3: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
● Q4: WHAT IS YOUR TERMS OF DELIVERY?
A4: EXW, FOB, CFR, CIF, DAP, DDP.
● Q5: HOW ABOUT YOUR DELIVERY TIME?
A5: Generally, it will take 2 to 5 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
● Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?
A6: Yes, we have 100% test before delivery.
● Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?
A7: We keep good quality and competitive price to ensure our customers benefit; we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
