SS304 Lug Wafer Type PN16 150LB Knife Gate Valve for Slurry Discharge with Handwheel

Brand Name:	SONGO
MOQ:	2 pieces
Price:	CN¥1000/pieces 2-39 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000 pcs per month

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Material Material:

SS304/SS316/Carbon Steel/cast Iron

Port Size:

DN50-DN600

Standard:

PN10/PN16/ANSI150

Type (Channel Position):

Cut-through

Warranty:

1 Years

TEMP:

- 20-300℃

Valve Seal:

Fluorine Rubber, PTFE, Hard Seal

Disc:

SS304/SS316/Carbon Steel

Connection:

Lug Wafer/ Flange

Handwheel:

SS304/Carbon Steel/cast Iron

Packaging Details:

by carton box or wooden box

Highlight:

1/4" Pilot Solenoid Valve

Pilot Solenoid Valve BSP

Pneumatic Air Control Valve

Product Description

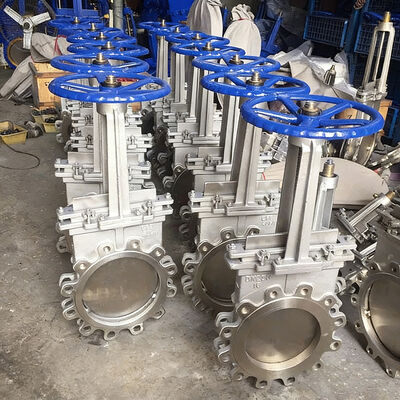

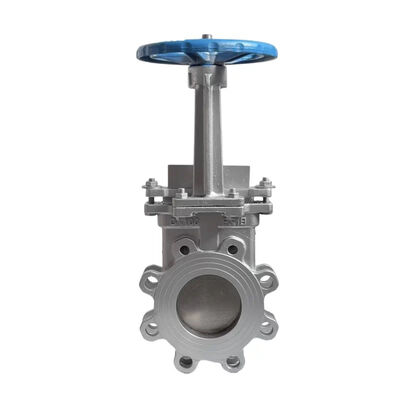

SONGO Manual SS304 Lug Wafer Type PN16 150LB Knife Gate Valve

Product Overview

The SS304 lug wafer type PN16 150LB knife gate valve features either a hard metal-to-metal seal or a soft metal-to-rubber seal. The specially designed interface between the gate plate and sealing surface minimizes friction during operation, ensuring long-lasting durability and reliable performance.

Design Features

Ideal for wastewater treatment, chemical processing, pulp and paper manufacturing, mining, and coal washing industries
Designed for handling liquid suspensions and controlling flow in pipeline systems
Single-sided forced sealing ensures reliable performance and allows for deposit removal while maintaining seal integrity

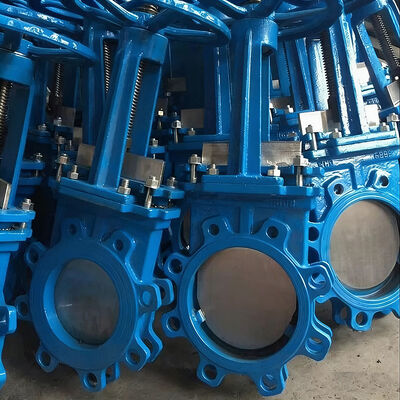

Available in cast iron, carbon steel, stainless steel, and Teflon materials to meet corrosion and abrasion resistance requirements
Compact design with short structural length and lightweight construction for easy installation and maintenance
Operating temperature range: -10℃ to 300℃
Nominal pressure ratings: 0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 150LB

Technical Specifications & Dimensions

PN (MPa)	DN (mm)	L	D	D1	D2	D0	n-Th	d	H1	H2	Weight (kg)
1.0/1.6	50	48	165	125	99	180	4-M16	18	290	350	10
65	48	185	145	118	200	4-M16	18	310	375	11
80	51	200	160	132	220	8-M16	18	350	430	13.5
100	51	220	180	156	240	8-M16	18	405	505	15.5
125	57	250	210	184	260	8-M16	18	450	575	23.5
150	57	285	240	212	280	8-M20	23	510	660	29
200	70	340	295	266	300	8-M20/12-M20	23	610	810	43.5
250	70	395/405	350/355	319	340	12-M20/12-M24	23/27	765	1015	67.5/68
300	76	445/460	400/410	370	380	12-M20/12-M24	23/27	820	1120	100.5/101
350	76	505/520	460/470	430	400	16-M20/16-M24	23/27	970	1320	126/127
400	89	565/580	515/525	480	450	16-M24/16-M27	27/30	1024	1424	176.2/177
450	89	615/640	565/585	530/548	530	20-M24/20-M27	27/30	1235	1685	289/290
500	114	670/715	620/650	582/609	600	20-M24/20-M30	27/33	1286	1786	380/382
600	114	780/840	725/770	682/720	600	20-M27/20-M33	30/36	1486	2086	498.6/500

Note: In the table, the size to the left of "/" is for PN1.0MPa, and the size to the right of "/" is for PN1.6MPa.

Comprehensive Technical Support

Our engineering team provides complete technical assistance throughout the valve lifecycle.

Customer Satisfaction

Trusted by over 12,382 clients worldwide with consistently positive feedback.

Frequently Asked Questions

Q1: ARE YOU A MANUFACTURER OR A TRADE COMPANY?

A1: We are a 29-year professional valve automation integration valve manufacturer, producing and selling directly from our factory.

Q2: IS THERE A TECHNICAL ENGINEER'S GUIDE FOR INSTALLATION BEFORE OR AFTER SALE?

A2: Yes, our technical engineers provide comprehensive support including remote video guidance, installation instructions, and valve commissioning assistance.

Q3: WHAT IS YOUR TERMS OF PAYMENT?

A3: T/T 30% as deposit, and 70% before delivery. We provide photos of products and packaging before final payment.

Q4: WHAT IS YOUR TERMS OF DELIVERY?

A4: EXW, FOB, CFR, CIF, DAP, DDP.

Q5: HOW ABOUT YOUR DELIVERY TIME?

A5: Generally 2 to 5 days after receiving advance payment. Specific delivery time depends on product type and order quantity.

Q6: DO YOU TEST ALL YOUR GOODS BEFORE DELIVERY?

A6: Yes, we perform 100% testing before delivery to ensure quality and performance.

Q7: HOW DO YOU MAKE OUR BUSINESS LONG-TERM AND GOOD RELATIONSHIP?

A7: We maintain excellent quality and competitive pricing to ensure customer benefits. We respect every customer as our partner and sincerely conduct business while building lasting relationships.
