| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥996.44/pieces 2-29 pieces |
| Payment Terms: | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Supply Ability: | 30000 Piece/Pieces per Month |

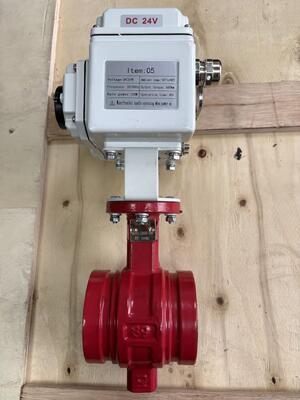

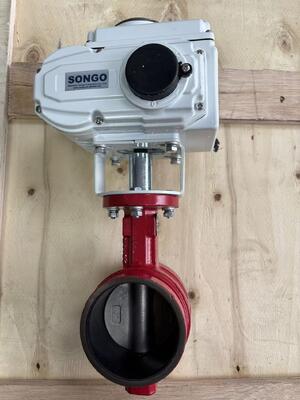

Benefits Of Cast Iron Electric Groove Butterfly Valve:
If you are looking for adevice that is highly efficient, economical and capable of intelligent automatic control of fluids, then the electric slot butterfly valve would be your top choice.It is not merely a simple valve switch, but rather a high-performance fluid management solution that integrates intelligent control, excellent sealing, and quick installation.
Features Of Motorized Groove Butterfly Valve :
1). The groove connection method completely eliminates the cumbersome process of welding and flange alignment, reducing the installation time and labor costs by more than 70%.
2). High strength ductile iron valve body (epoxy resin coating), corrosion resistant, long service life. Streamlined design butterfly plate, reduces flow resistance and saves pumping energy.
3).Use EPDM, NBR or PTFE as valve seats to achieve Zero Leakage.
4). Supports on/off or modulating control to achieve remote, precise and automated control, seamlessly integrating with building automation systems (BAS), fire alarm systems or industrial internet of things (IIoT) systems.
Material of Main Parts:
| NO. | Name | Material |
| 1 | Body | Ductile Iron |
| 2 | Disc | Ductile Iron |
| 3 | Stem(Lower) | 416 Stainless Steel |
| 4 | Stem(UpPer) | 416 Stainless Steel |
| 5 | O-ring | EPDM |
| 6 | Bushing | PTFE |
| 7 | Screw | WCB |
| 8 | Cover | PTFE |
| 9 | Bracket | Carbon Steel |
| 10 | Electric Actuator | |
Dimension Drawing:
| Size | A | B | G | D | D0 | (ɸe) | a | b | K | E | ɸ1 | ɸ2 | W | L1 | L2 | Electric Actuator No. | |
| mm | inch | ||||||||||||||||
| 50 | 2 | 100 | 75 | 81 | 60.3 | 57.2 | 48.5 | 15.88 | 7.93 | 65 | 50 | 7 | 12.6 | 9 | 178 | 121 | SONGO-05 |
| 65 | 2.5 | 106 | 80 | 96.8 | 73 | 69.1 | 61 | 15.88 | 7.93 | 65 | 50 | 7 | 12.6 | 9 | 178 | 121 | SONGO-05 |
| 80 | 3 | 113 | 87 | 96.8 | 88.9 | 84.9 | 76.2 | 15.88 | 7.93 | 65 | 50 | 7 | 12.6 | 9 | 210 | 131 | SONGO-10 |
| 100 | 4 | 136 | 106 | 115.8 | 114.3 | 110.1 | 99.5 | 15.88 | 9.53 | 90 | 70 | 10 | 15.77 | 11 | 210 | 131 | SONGO-10 |
| 125 | 5 | 149 | 124 | 147.6 | 141.3 | 137 | 127.5 | 15.88 | 9.53 | 90 | 70 | 10 | 18.92 | 14 | 210 | 131 | SONGO-16 |
| 150 | 6 | 176 | 135 | 147.6 | 168.3 | 164 | 151.8 | 15.88 | 9.53 | 90 | 70 | 10 | 18.92 | 14 | 210 | 131 | SONGO-16 |
| 200 | 8 | 204 | 167 | 133.4 | 219.1 | 214.4 | 201.8 | 19.05 | 11.1 | 125 | 102 | 12 | 22.1 | 17 | 309 | 160 | SONGO-30 |
| 250 | 10 | 228 | 205 | 158.8 | 273 | 268.3 | 253 | 19.05 | 12.7 | 125 | 102 | 12 | 28.45 | 22 | 309 | 160 | SONGO-60 |
| 300 | 12 | 266 | 229 | 165.1 | 323.9 | 318.3 | 333 | 19.1 | 12.7 | 125 | 102 | 14 | 31.6 | 22 | 309 | 160 | SONGO-60 |
