| Brand Name: | SONGO |
| MOQ: | 2 pieces |
| Price: | CN¥340.57/pieces |
| Payment Terms: | L/C,D/A,T/T,D/P,Western Union,MoneyGram |
| Supply Ability: | 5000-10,000Pieces/Month |

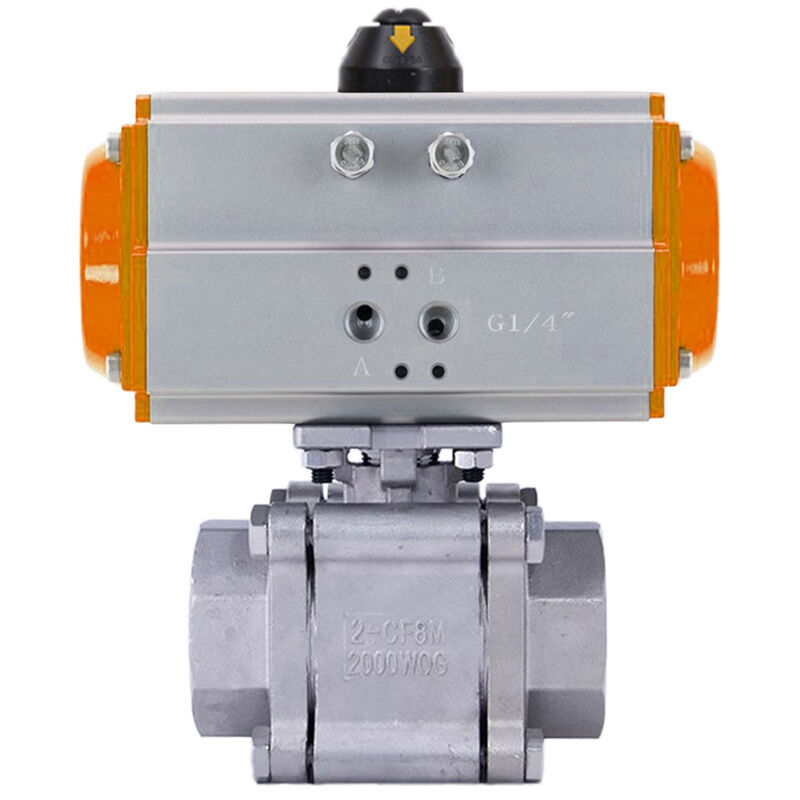

Application Scenarios Of SS304 Pneumatic Control PN130 Ball Valve:
The high-pressure stainless steel three-piece welded pneumatic threaded ball valve, with its high-pressure sealing performance, corrosion resistance and explosion-proof safety, is widely used in the following scenarios
1). The oil and gas industry
2). Chemical and petrochemical industry
3). Electricity and Heat industry
4). Metallurgy and environmental protection industry
Six Core Advantages (Exclusive For High-pressure And Explosion-proof Scenarios) Of Pneumatic Actuated PN130 Ball Valve:
1). Stainless steel has strong corrosion resistance: 304/316L stainless steel (containing Cr≥18%, Ni≥8%), resistant to corrosion by hydrochloric acid, sulfuric acid and sulfur-containing media. It can replace carbon steel valves and extend their service life by three times (compared with Q235B).
2). Three-piece welding seal is reliable: argon arc welding butt welding connection (without bolts), welding joint coefficient ≥0.9, zero leakage at 4.0/6.4MPa under high-pressure erosion (API 598-2016 certified)
3). Explosion-proof pneumatic safety guarantee: Flameproof cavity structure (Ex d IIB T4 Gb), preventing internal explosion from being transmitted to the outside, suitable for dangerous areas such as oil fields/refineries/gas stations (Zone 1/2)
4). Threaded connection is convenient and efficient: NPT/BSP threaded interface, installation/disassembly can be completed within 5 minutes (no large tools required), reducing pipeline renovation time (saving 30% of working hours compared to flange connection)
5). Three-piece maintenance is convenient: The modular design (main valve body + auxiliary valve body + valve seat) only requires the removal of 3 bolts, reducing maintenance time by 50% (compared with the integrated valve body) and lowering operation and maintenance costs
6). Full bore and large flow rate: The flow channel diameter is consistent with the inner diameter of the pipe (flow resistance coefficient ≤0.08), reducing pump power consumption by 20%, improving medium transmission efficiency, and lowering energy consumption
Design Features Of SONGO Pneumatic Actuator:
Part Material Of SS304 PN130 Pneumatic Ball Valve:
| Item No. | Quantity | Part Name | Material |
| 01 | 1 | Pneumatic Actuator | Pack Alloy |
| 02 | 2 | Air Connection | Copper Plating |
| 03 | 0/1 | Octagonal Bushing | Powder Metallurgy |
| 04 | 2 | Gland Screw | SUS304 |
| 05 | 1 | Gland | SUS304/SUS316 |
| 06 | 2 | Nut | SUS304 |
| 07 | 2 | Disc Spring | SUS304 |
| 08 | 1 | Metal Gasket | SUS304 |
| 09 | 7 | Packing | PTFE/PPL |
| 10 | 1 | O-ring | FKM/EPDM |
| 11 | 1 | Prevent Push Gasket | PTFE |
| 12 | 1 | Valve Shaft | SUS304/SUS316 |
| 13 | 1 | Valve Body | SUS304/SUS316 |
| 14 | 4 | Combination Screw | SUS304 |
| 15 | 8 | Valve Side Cover Nut | SUS304 |
| 16 | 4 | Bolt | SUS304 |
| 17 | 2 | Valve Side Cover | SUS304/SUS316 |
| 18 | 1 | Ball | SUS304/SUS316 |
| 19 | 2 | Valve Seat | PTFE/PPL |
| 20 | 2 | Valve Side Cover Seal | SUS304+Flexible Graphite |
Structure Dimension Drawing Of SS304 2000WOG PN130 Pneumatic Ball Valve:
| Nominal Diameter | L | T | S | N | Q | H | R | D | Pneumatic Actuator No. |
| DN8 | 124 | 75 | 65 | 20 | 61 | 44 | 10 | G1/4" | AT-40 |
| DN8 | 147 | 75 | 71.5 | 20 | 72 | 44 | 10 | G1/4" | AT-52 |
| DN10 | 124 | 75 | 65 | 20 | 61 | 44 | 10 | G3/8" | AT-40 |
| DN10 | 147 | 75 | 71.5 | 20 | 72 | 44 | 10 | G3/8" | AT-52 |
| DN15 | 124 | 78 | 65 | 20 | 61 | 53 | 15 | G1/2" | AT-40 |
| DN15 | 147 | 78 | 71.5 | 20 | 72 | 53 | 15 | G1/2" | AT-52 |
| DN20 | 147 | 90 | 71.5 | 20 | 72 | 60 | 20 | G3/4" | AT-52 |
| DN25 | 168 | 100 | 83 | 20 | 88 | 68 | 25 | G1" | AT-63 |
| DN32 | 186 | 112 | 95 | 20 | 99.5 | 78 | 32 | G1 1/4" | AT-75 |
| DN40 | 212 | 124 | 103 | 20 | 108.7 | 88 | 38 | G1 1/2" | AT-83 |
| DN50 | 262 | 150 | 108.5 | 20 | 116.5 | 99 | 50 | G2" | AT-92 |
Ball Valve Standard:
| Ball Valve Standard | ||||
| GB Standard | ASME Standard | JIS Standard | DIN Standard | |
| Design Standard | GB/T12237 | API608 | JIS BS5351 | DIN 3357 |
| Inspection Standard | GB/T13927 | API598 | JIS B2003 | EN 12266 |
| Face-to-Face Standard | GB/T12221 | ASME B16.10 | JIS B2002 | DIN 3202-F4 |
| Flange Standard | HG/T 20592, GB/T9113,EN 1092-1, JB/T79.1 |
ASME B16.5 | JIS B2220 | EN 1092-1 |
| Pressure-Temperature Standard |
GB/T 26640 | ASME B16.34 | ASME B16.34 | ASME B16.34 |
| Fire Safe Standard | API607/API 6FA | API607/API 6FA | API607/API 6FA | API607/API 6FA |
Matching Air Accessories Selection For Pneumatic Ball Valve:
Pneumatic Actuator Accessories Options :
| Pneumatic Actuator Accessories Options | ||
| Pneumatic Actuator Pisition | Applicable Connection Standard |
Pneumatic Actuator Accessories |
| Actuator Upper | VDI/VDE 3845 | ● Limit Switch Box ● Proximity Switch ● P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) ● E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) |
| Actuator Back | VDI/VDE 3845 | Non Explosion-proof Type ExmbIICT4 / EX d IIB T6 / EX d IIC T6 / EX ia IIC T6 Explosion-proof Type ● 3/2 Way Namur Solenoid Valve ( For Spring Return Actuator ) ● 5/2 Way Namur Solenoid Valve ( For Double Acting Actuator ) Air Filter Regulator |
| Actuator Bottom | ISO5211/DIN3337 | ● Declutchable Gear Box ● Ball Valve , Butterfly Valve , Plug Valve |
Single Acting & Double Acting Difference Of Pneumatic Actuator:
| Principle Of Single Acting Pneumatic Actuator (Spring Return) | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
| Principle Of Double Acting Pneumatic Actuator | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A. |
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
|
Operating Type Selection Of Ball Valve:
Connect End Selection Of Pneumatic Ball Valve:
Flow Path Selection Of Pneumatic 3 Ways Ball Valve:
