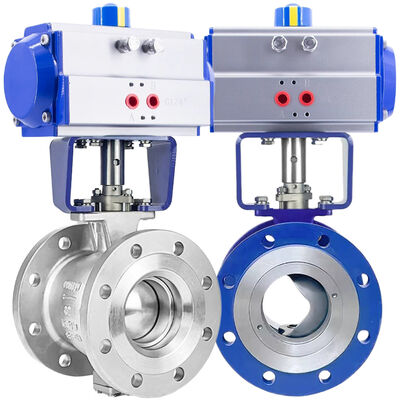

Descriptions Of Pneumatic Flange Segment V type Ball Valve:
The pneumatic V-port ball valve achieves tight sealing with only a 90-degree pneumatic rotation and minimal torque. Its fully symmetrical valve body cavity provides a straight-through flow path with minimal flow resistance for the medium. While ball valves are traditionally considered most suitable for on-off applications, recent advancements have enabled their design for throttling and flow control purposes.the pneumatic V-port flange ball valve is primarily utilized in pipelines for rapid shut-off, flow distribution, and directional change of media.
Features Of SONGO Flange segment V type Pneumatic Actuator Ball Valve:
1. Exceptional Regulating Characteristics: The pneumatic V-ball flange segment ball valve features an approximate equal percentage inherent flow characteristic with an adjustable ratio of up to 300:1, enabling the electric V-ball valve to deliver precise control across a wide range of variations.
2. The V-notch ball disc design of the closure member completely resolves the issue of media accumulation in the valve chamber.
3. Equipped with a dual-bearing structure, the pneumatic V-ball valve exhibits superior mechanical stability, low breakaway torque, and ensures excellent responsiveness and actuation speed.
4. Maximum Reliability (Safety): The valve body is constructed as a single robust unit, ensuring durable operation unaffected by pipeline pressure while preventing potential leakage.
5. Superior Metal Seat Sealing Performance: The pneumatic flange V-ball segment valve incorporates self-compensating metal seats, delivering exceptional sealing capabilities and extended service life.
Part Material Of Pneumatic Actuated V type Flange segment Ball Valve:
| Connect Type | Wafer,Flange |
| Working Pressure | PN16,150LB |
| Brand | SONGO |
| Size | DN25-DN250 |
| Temperature | -20~280°C |
| Medium | Fresh water,sewage, sea water, air, steam, food, medicine, oils, acids, etc. |
| Body | WCB, CF8, CF8M, stainless steel |
| Ball | SS304, SS316 |
| Stem | SS304, SS316 |
| Seat | PTFE, Metal hard seal |
| Operated | Pneumatic actuated |
| Actuator parts | Solenoid valve, limit switch, positioner, FRL |
| Actuator type | Double action, spring return |
Structure Dimension Drawing Of Pneumatic Operated SS304 Flange V type segment Ball Valve:
| Nominal diameter | L | H1 | H2 | D | D1 | T | f | N | L1 | L2 | Pneumatic Actuator No. |
| DN25 | 102 | 148 | 110 | 115 | 85 | 16 | 2 | 4-Φ14 | 206 | 103.5 | AT-83 |
| DN32 | 102 | 153 | 120 | 140 | 100 | 18 | 2 | 4-Φ18 | 265 | 108 | AT-92 |
| DN40 | 114 | 155 | 120 | 150 | 110 | 18 | 2 | 4-Φ18 | 272 | 121.5 | AT-105 |
| DN50 | 124 | 165 | 142 | 165 | 125 | 20 | 2 | 4-Φ18 | 272 | 121.5 | AT-105 |
| DN65 | 145 | 180 | 158 | 185 | 145 | 20 | 2 | 8-Φ18 | 304 | 142 | AT-125 |
| DN80 | 165 | 193 | 178 | 200 | 160 | 20 | 2 | 8-Φ18 | 395 | 151 | AT-140 |
| DN100 | 194 | 205 | 200 | 220 | 180 | 22 | 2 | 8-Φ18 | 462 | 174 | AT-160 |
| DN125 | 194 | 225 | 235 | 250 | 210 | 22 | 2 | 8-Φ18 | 552 | 206 | AT-190 |
| DN150 | 229 | 264 | 260 | 285 | 240 | 24 | 2 | 8-Φ22 | 556 | 226 | AT-210 |
| DN200 | 243 | 295 | 325 | 340 | 295 | 24 | 2 | 12-Φ22 | 630 | 260 | AT-240 |
| DN250 | 297 | 335 | 350 | 405 | 355 | 26 | 2 | 12-Φ26 | 630 | 260 | AT-240 |
| DN300 | 338 | 380 | 326 | 460 | 410 | 28 | 2 | 12-Φ26 | 630 | 260 | AT-240 |
Ball Valve Standard:
| Ball Valve Standard | ||||
| GB Standard | ASME Standard | JIS Standard | DIN Standard | |
| Design Standard | GB/T12237 | API608 | JIS BS5351 | DIN 3357 |
| Inspection Standard | GB/T13927 | API598 | JIS B2003 | EN 12266 |
| Face-to-Face Standard | GB/T12221 | ASME B16.10 | JIS B2002 | DIN 3202-F4 |
| Flange Standard | HG/T 20592, GB/T9113,EN 1092-1, JB/T79.1 |
ASME B16.5 | JIS B2220 | EN 1092-1 |
| Pressure-Temperature Standard |
GB/T 26640 | ASME B16.34 | ASME B16.34 | ASME B16.34 |
| Fire Safe Standard | API607/API 6FA | API607/API 6FA | API607/API 6FA | API607/API 6FA |
Matching Air Accessories Selection For Pneumatic Ball Valve:

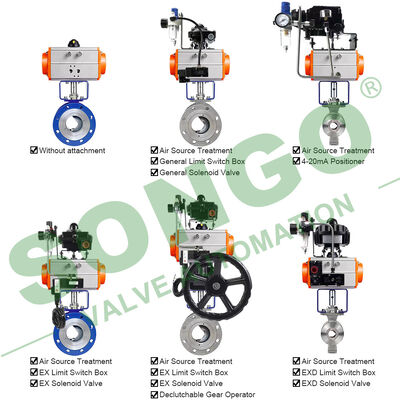

Pneumatic Actuator Accessories Options :
| Pneumatic Actuator Accessories Options | ||
| Pneumatic Actuator Pisition | Applicable Connection Standard |
Pneumatic Actuator Accessories |
| Actuator Upper | VDI/VDE 3845 | ● Limit Switch Box ● Proximity Switch ● P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) ● E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) |
| Actuator Back | VDI/VDE 3845 | Non Explosion-proof Type ExmbIICT4 / EX d IIB T6 / EX d IIC T6 / EX ia IIC T6 Explosion-proof Type ● 3/2 Way Namur Solenoid Valve ( For Spring Return Actuator ) ● 5/2 Way Namur Solenoid Valve ( For Double Acting Actuator ) Air Filter Regulator |
| Actuator Bottom | ISO5211/DIN3337 | ● Declutchable Gear Box ● Ball Valve , Butterfly Valve , Plug Valve |
Single Acting & Double Acting Difference Of Pneumatic Actuator:
| Principle Of Single Acting Pneumatic Actuator (Spring Return) | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B. Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B. Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
| Principle Of Double Acting Pneumatic Actuator | |
| Counter - Clockwise | Clockwise |
|
|
|
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B. Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A. |
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
|

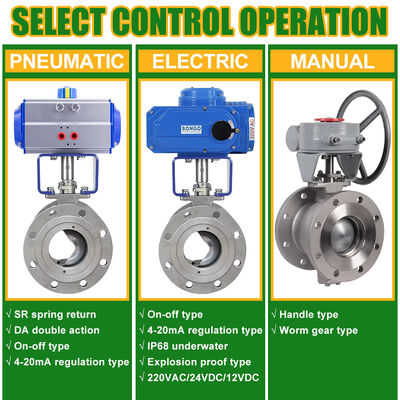

Operating Type Selection Of Ball Valve:
Connect End Selection Of Pneumatic Ball Valve:
